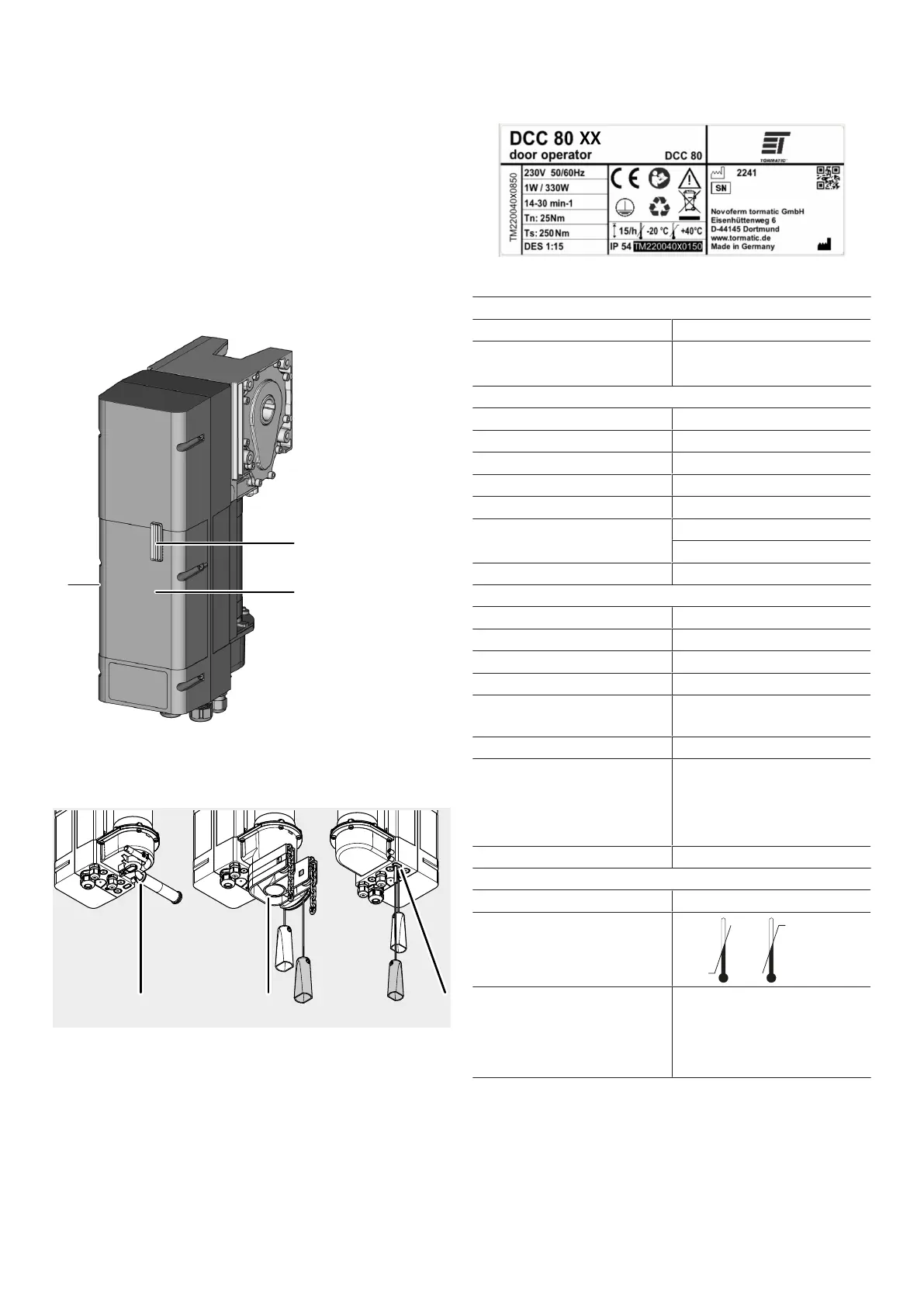

3Product description
The DCC is optionally equipped with a control device (hereafter referred to as "IPD-
E") for operation and programming. The current status of the door as well as the
navigation of the programming is indicated via a LED light (red/blue). The IPD-E can
be used for basic programming.
Alternatively, a control device with a two-digit 7-segment display (hereinafter re-
ferred to as "IPD-S") can be connected to the DCC. The IPD-S indicates the current
status of the door and, during the programming process, the menu and setting value.
With an IPD-S connected to the DCC, you can access an extended function menu in
the programming mode. Furthermore, the IPD-S is equipped with additional inputs
and outputs.
For information on operation with an IPD-S, see the complete version of the as-
sembly and operating instructions.
1
2
3
1 LED status/programming 2 Housing cover
3 Rating plate on the side of the device
Please note that the model variants differ in their emergency operation mechanisms:
4 5 6
4 DCC-80 NHK / DCC-80 NHK WE
with emergency crank handle
5 DCC-80 SK / DCC-80 SK-WE
Emergency operation via quick chain
6 DCC-80 ER
mechanical emergency release of the drive
3.1Rating plate
The rating plate is located at the side on the control housing. Observe the power
supply specifications.
3.2Technical data
General
Heightx widthx depth 450mmx 120mmx 275mm
Cable feed-throughs 5 x M16
1 x M20 V cutout
Electrical specifications
Operating voltage 1~230 V
Operating current 3A
Protection class: I
Sensor control voltage 24 V DC
Power during operation/ in resting mode 330W / <1W
Relay contact load(J12) 230V AC, 2A, ohmic
230V AC, 1A, inductive
Relay contact load(J31) 24V AC/DC, 1A, ohmic
Mechanical specifications
Output speed 14–30rpm
Nominal drive torque 25Nm/ 80Nm
1)
Max. holding torque 250 Nm
Maximum load 2500 N
Limit switch area / number of revolutions
of the door shaft
15
Cycles per hour 15
Safety in accordance with EN13849-1 J3.4 stop A: cat.2 / PL= c
J3.2 CESD: cat.2 / PL= c
J10.2/3 Roll-up protection mechanism:
cat.2 / PL= c
Emission sound pressure level LpA≤ 70dB(A)
Surroundings
Protection type IP54
Operating temperature
-20 °C
+40 °C
⁠
Manufacturer Novoferm tormatic GmbH
Eisenhüttenweg 6
D-44145 Dortmund
www.tormatic.de
1)
Specification according to EN 60335-2-103
The warranty is valid for 2years or 36000cycles (whichever is reached first).
