CONNECTIONS AND INSTALLATION
MECHANICAL INSTALLATION
FieldLogger chassis can be installed on a 35 mm DIN rail.
For the installation on the rail, you must pull out the two clamps located right below the connections of the channels,
taking care not to remove them, as per Fig. 01.
Note: If necessary, the connector may be removed for installation of DIN rail.

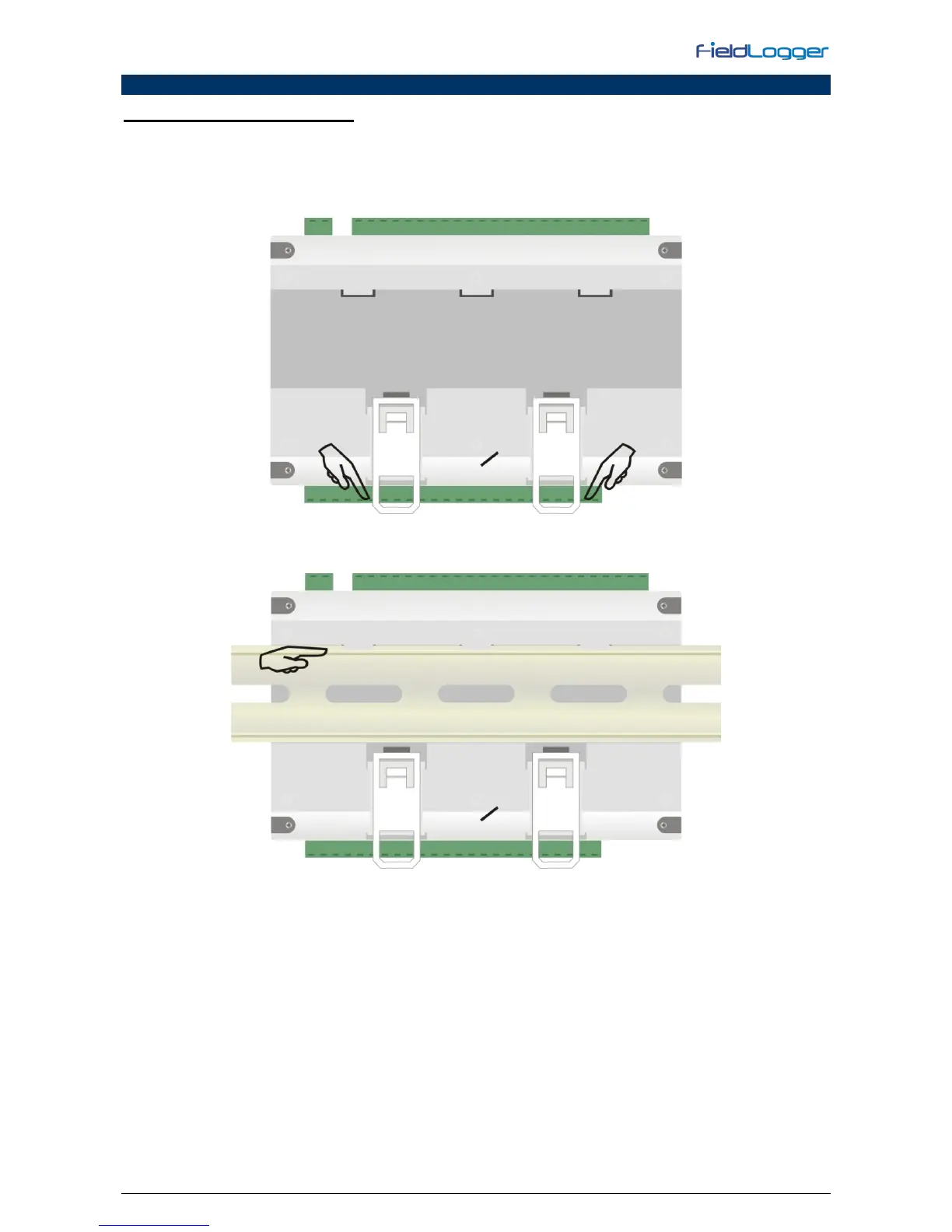

Fig. 01 - DIN rail installation
Afterwards, fit the FieldLogger to the rail according to Fig. 02.
Fig. 02 - DIN rail installation
