NOVUS AUTOMATION www.fieldlogger.net 9/104
ATTACHING AND DETACHING THE HMI
When detaching the HMI, pull up the lever at the right side of the FieldLogger up to the end.
When attaching it, insert the HMI (left side first) and press its right side until DB9 connectors are firmly connected. After
that, press the lever down into the chassis.

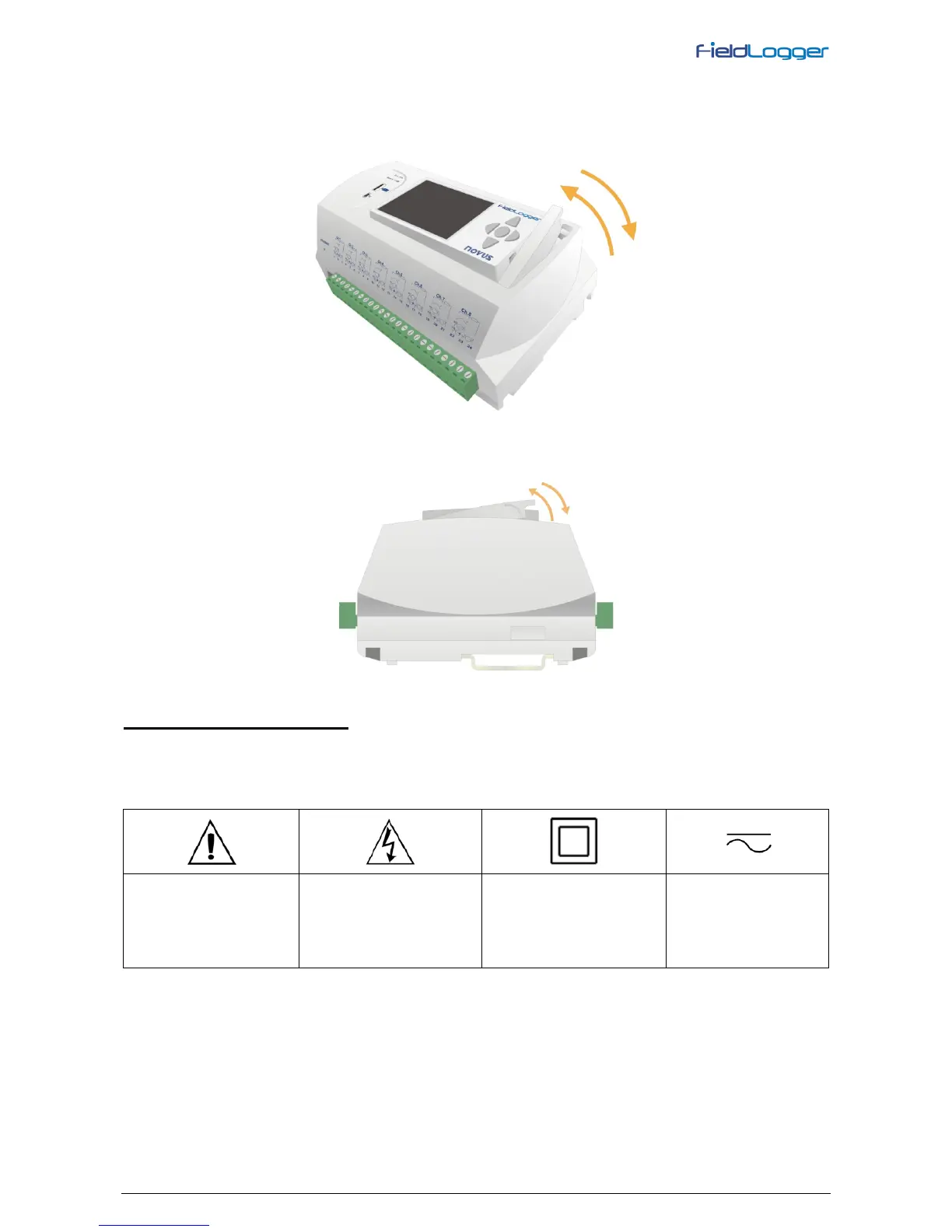

Fig. 10 – Attaching and detaching FieldLogger HMI
Fig. 11 – Attaching and detaching FieldLogger HMI (side view)
ELECTRICAL CONNECTIONS
SAFETY SUMMARY
The symbols below are used on the equipment and throughout this document to draw the user’s attention to important
operational and safety information.
CAUTION or WARNING:
Read complete instructions
prior to installation and
operation of the unit.
CAUTION or WARNING:
Electrical Shock Hazard
DOUBLE INSULATION
The FieldLogger power supply
is double insulated, represented
by the above symbol printed on
the equipment’s connection
label.
POWER INPUT
The FieldLogger may be
powered from either AC or
DC power source.
All safety related instructions that appear in the manual must be observed to ensure personal safety and to prevent
damage to either the instrument or the system. If the instrument is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
