ATTACHING AND DETACHING THE FRONT COVER
When detaching the front cover, pull the lever at the right side of the FieldLogger up to the end.
When attaching it, insert the cover (left side first) and press its right side gently. After that, press the lever back into the
chassis.

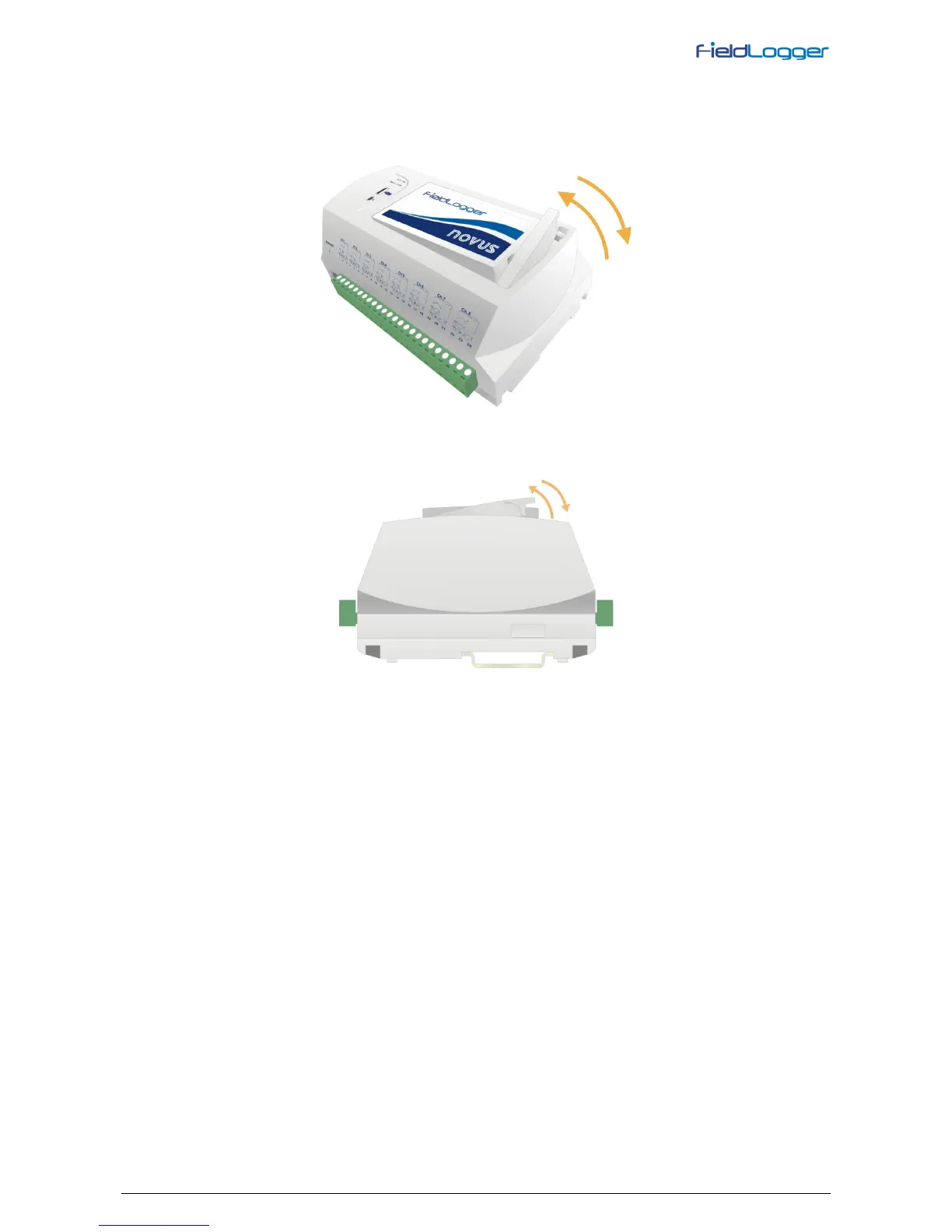

Fig. 08 – Attaching and detaching FieldLogger front cover
Fig. 09 – Attaching and detaching FieldLogger front cover (side view)
