NOVUS AUTOMATION www.fieldlogger.net 7/104
• With HMI module (Optional):

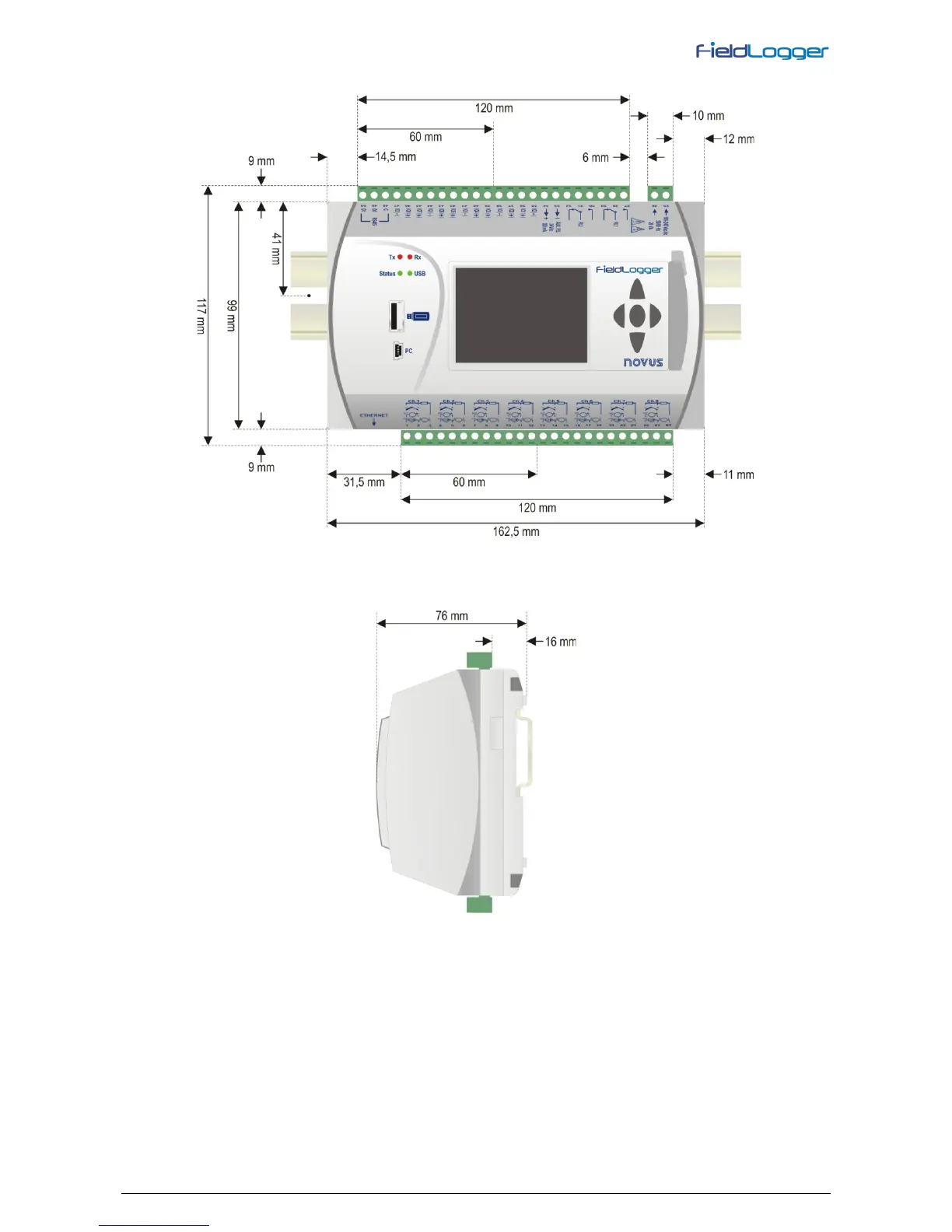

Fig. 06 – Dimensions of the FieldLogger with HMI module
Fig. 07 – Dimensions of FieldLogger side with HMI module
