NOVUS AUTOMATION www.fieldlogger.net 6/104
Dimensions:
• Without HMI module:

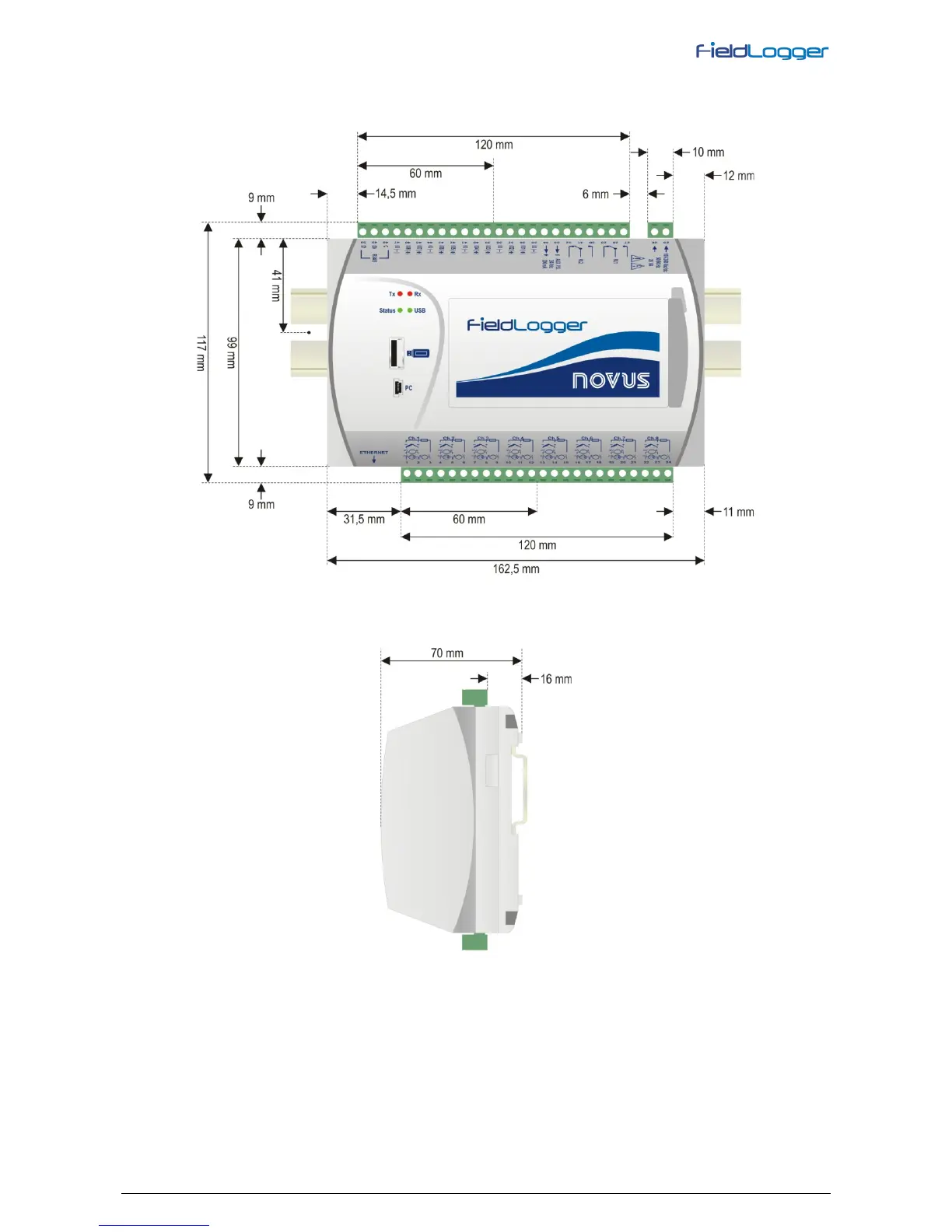

Fig. 04 – Dimensions of the FieldLogger without HMI module
Fig. 05 – Dimensions of FieldLogger side without HMI module
