8. ALARM INPUTS AND OUTPUTS CONNECTION
NV-DVR1104/CD, NV-DVR1108/CD, NV-DVR01116/CD digital multiplexers are equipped
accordingly with 4, 8 or 16 alarm inputs, which allow to connect external devices.
When external alarm function is active (chapter 6.5) alarms will be registered in Event Registry, even if
recording mode is set to off.
In order to automatically switch the device to alarm recording mode manual or schedule recording must
be initiated.

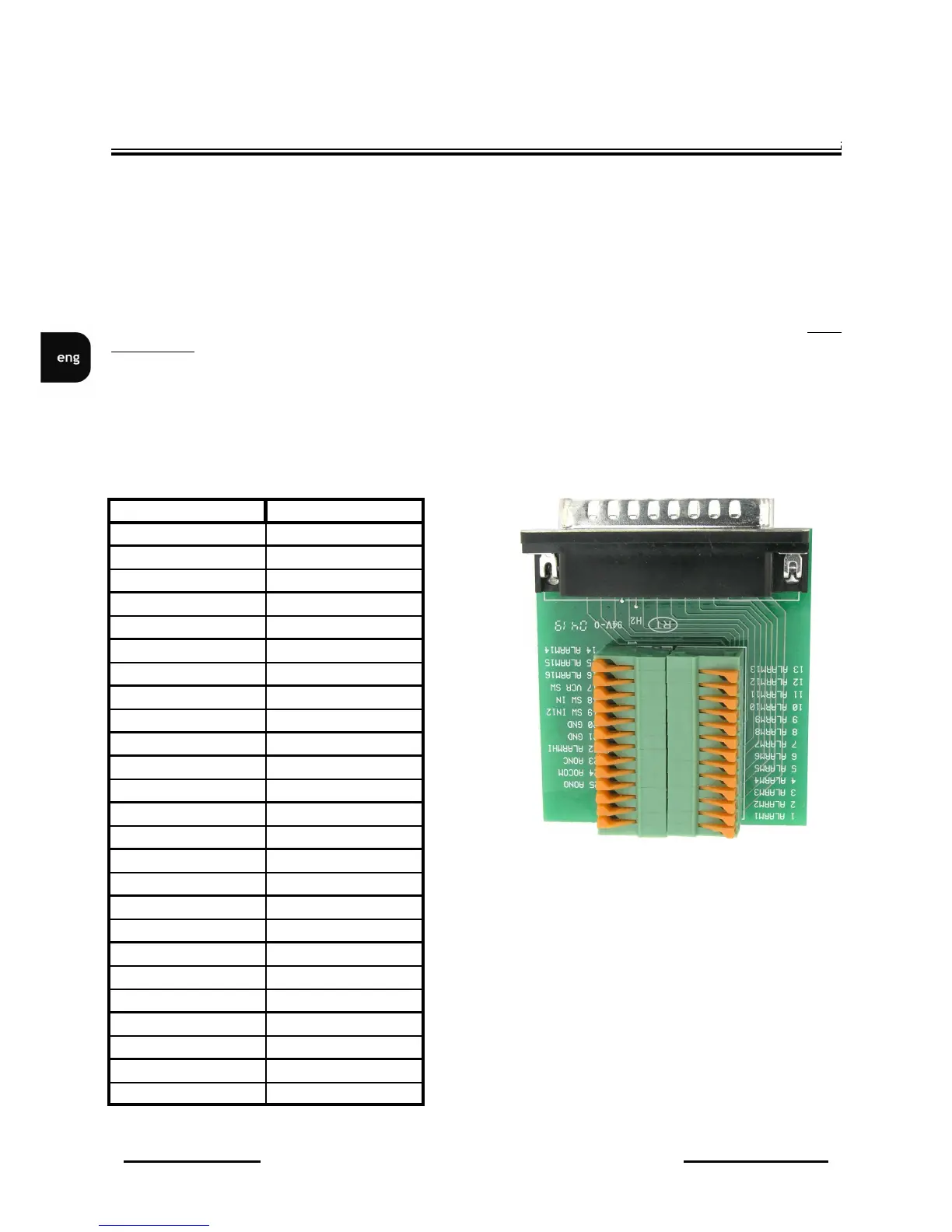

Junction for cable connection is equipped with handy, removable clamp junctions terminal. On this
terminal also alarm output is placed. For detailed terminal description please view the image below.
PIN FUNCTION
1 ALARM INPUT 1
2 ALARM INPUT 2
3 ALARM INPUT 3
4 ALARM INPUT 4
5 ALARM INPUT 5
6 ALARM INPUT 6
7 ALARM INPUT 7
8 ALARM INPUT 8
9 ALARM INPUT 9
10 ALARM INPUT 10
11 ALARM INPUT 11
12 ALARM INPUT 12
13 ALARM INPUT 13
14 ALARM INPUT 14
15 ALARM INPUT 15
16 ALARM INPUT 16
17 --------
18 --------
19 --------
20 GND
21 GND
22 ALARM RESET
23 ALARM OUTPUT N.C.
24 ALARM OUTPUT COM
25 ALARM OUTPUT N.O.
14
25
13
1
