Chapter2 Connection
Manual of NCH02
- 12 -
Figure2-7.
NPN 3 line Proximity switch wirin
g
2.3.4 Output port

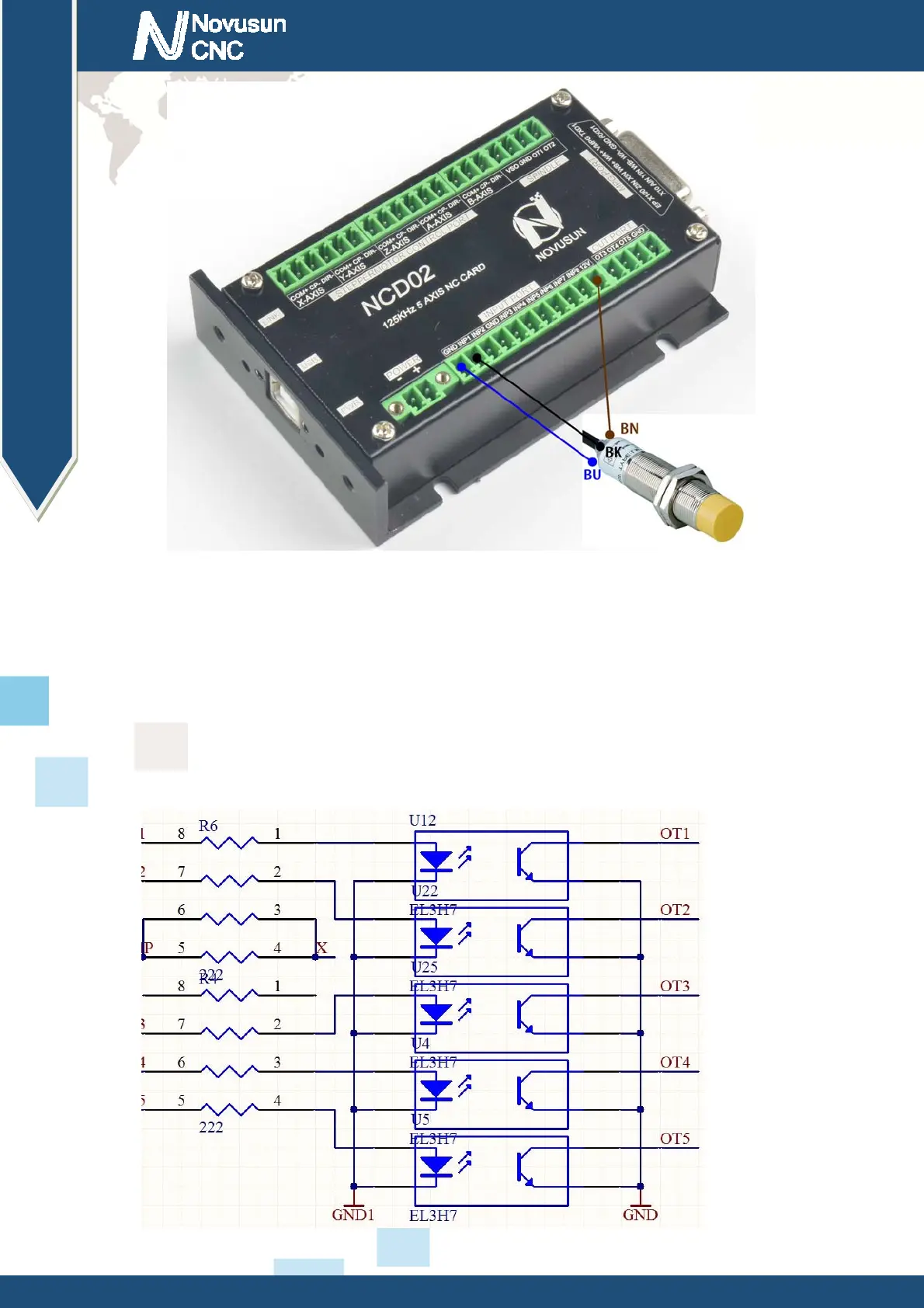

As Figure 2-2 showed,No.4 switch is Output port,
The interface is an open-ground
interface. The internal structure refers to figure
2-8, which can be absorbed not more than 50mA
curr
ent.
www
.nvcnc.net
13
