Chapter2 Connection
Manual of NCH02
- 1
1 -

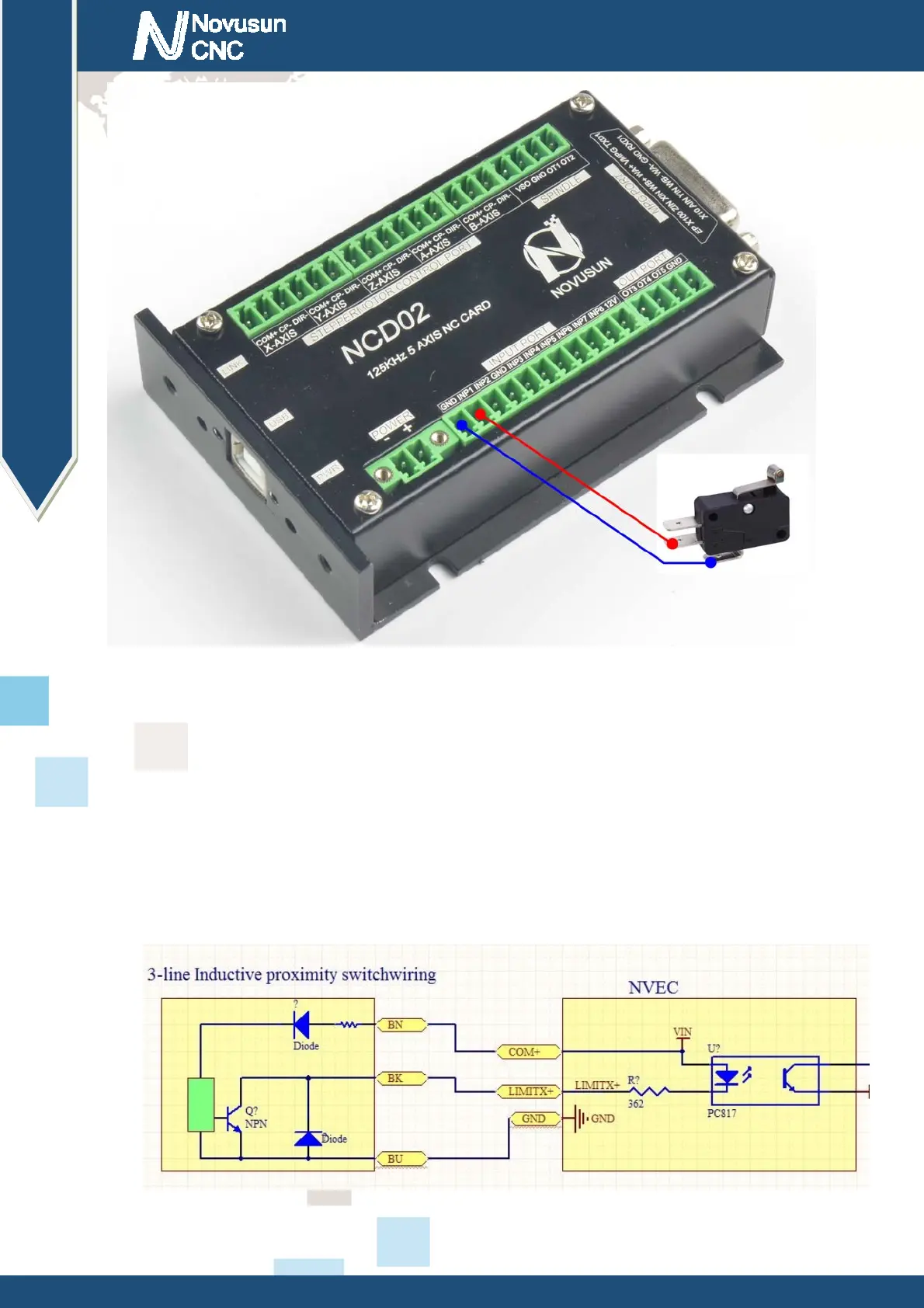

Figure2-5.
input interface serial
number IN3 and 2 li
ne proximity switch
/ common switch
limit input
wiring diagram
3 lines Proximity Switch connection Figure 2-13,
brown cable for Proxim
ity switch connect
with 12V
,Black cable connect channel, blue cable connect with GND1.
Only support NPN 3lines proximity switch.
Figure2-6.
NPN 3 lines Proximity Switch c
onnection drawing
www
.nvcnc.net
12
