Novusun CNC NCH02 - Hand Control NCH02 Keyboards Definition

Chapter2 Connection
Manual of NCH02
- 7 -
2.2 Hand control NCH02 KEYBOARD's Definition
2.2.1 KEYBOARD's Definition

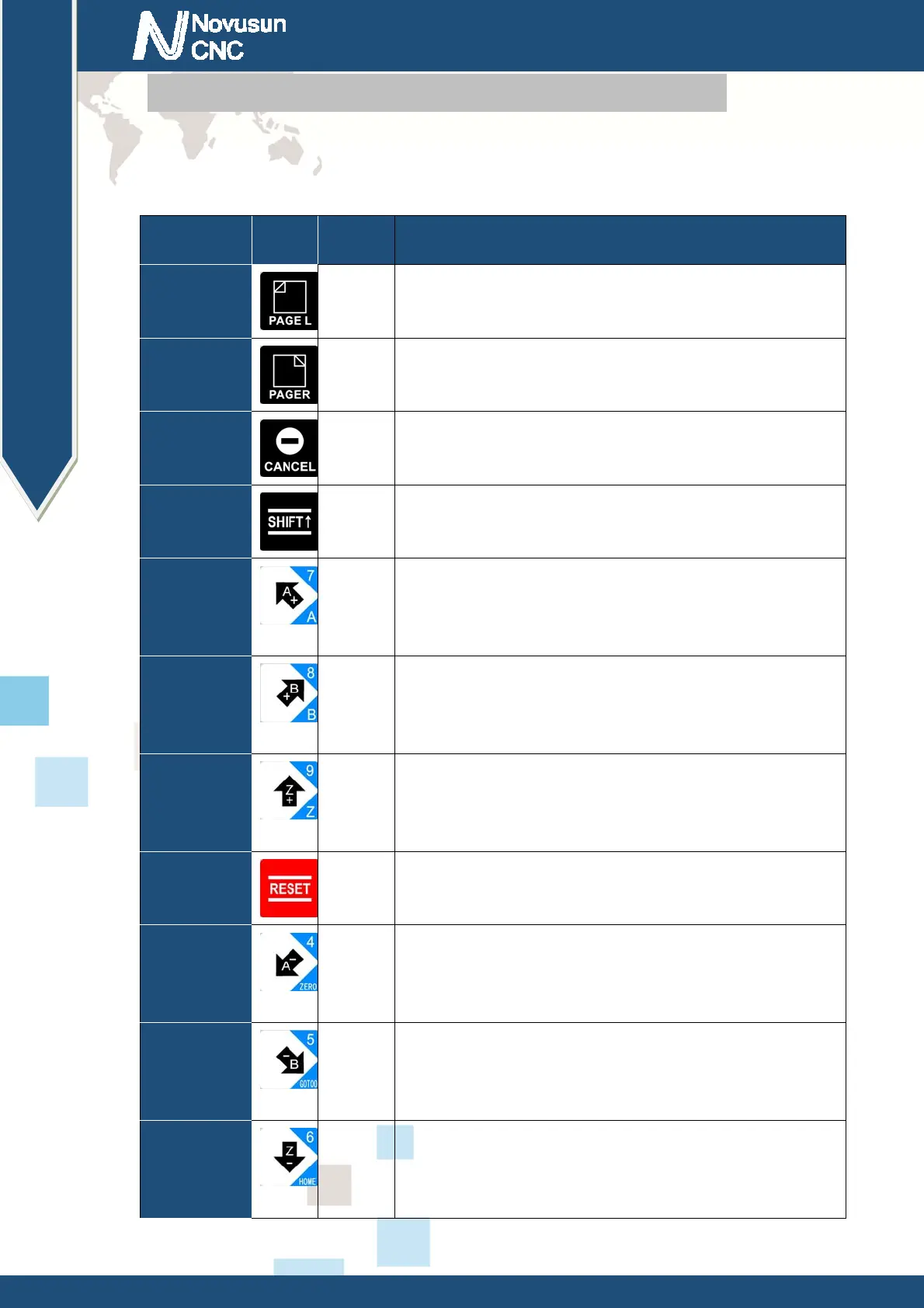

KEYBOARD's Definition see as Table 2-1
Location Icon Name Function
R 1 C 1 PAGE L 1：Page left
R 1 C 2 PAGE R 1：Page right
R 1 C 3 CANCEL 1：Cancel；2：Sign out
R 2 C 1 SHIFT 1：Shift，Call second functions
R 2 C 2 A+ 1：A axis manual forward；2：Select A axis；3：Number
7
R 2 C 3 B+ 1：B axis manual forward；2：Select B axis；3：Number
8
R 2 C 4 Z+ 1：Z axis manual forward；2：Select Z axis；3：Number
9
R 3 C 1 RESET 1：Reset state switch
R 3 C 2 A- 1：A axis manual reverse；2：ZERO in Workpiece
coordinates；3：Number 4
R 3 C 3 B- 1：B axis manual reverse；2：Go to zero in workpiece
coordinates；3：Number 5
R 3 C 4 Z- 1：Z axis manual reverse；2：Find zero point Mechanical
coordinates；3：Number 6
