Novusun CNC NCH02 User Manual

Chapter2 Connection
Manual of NCH02
- 15 -
common end configured to forward and reverse.

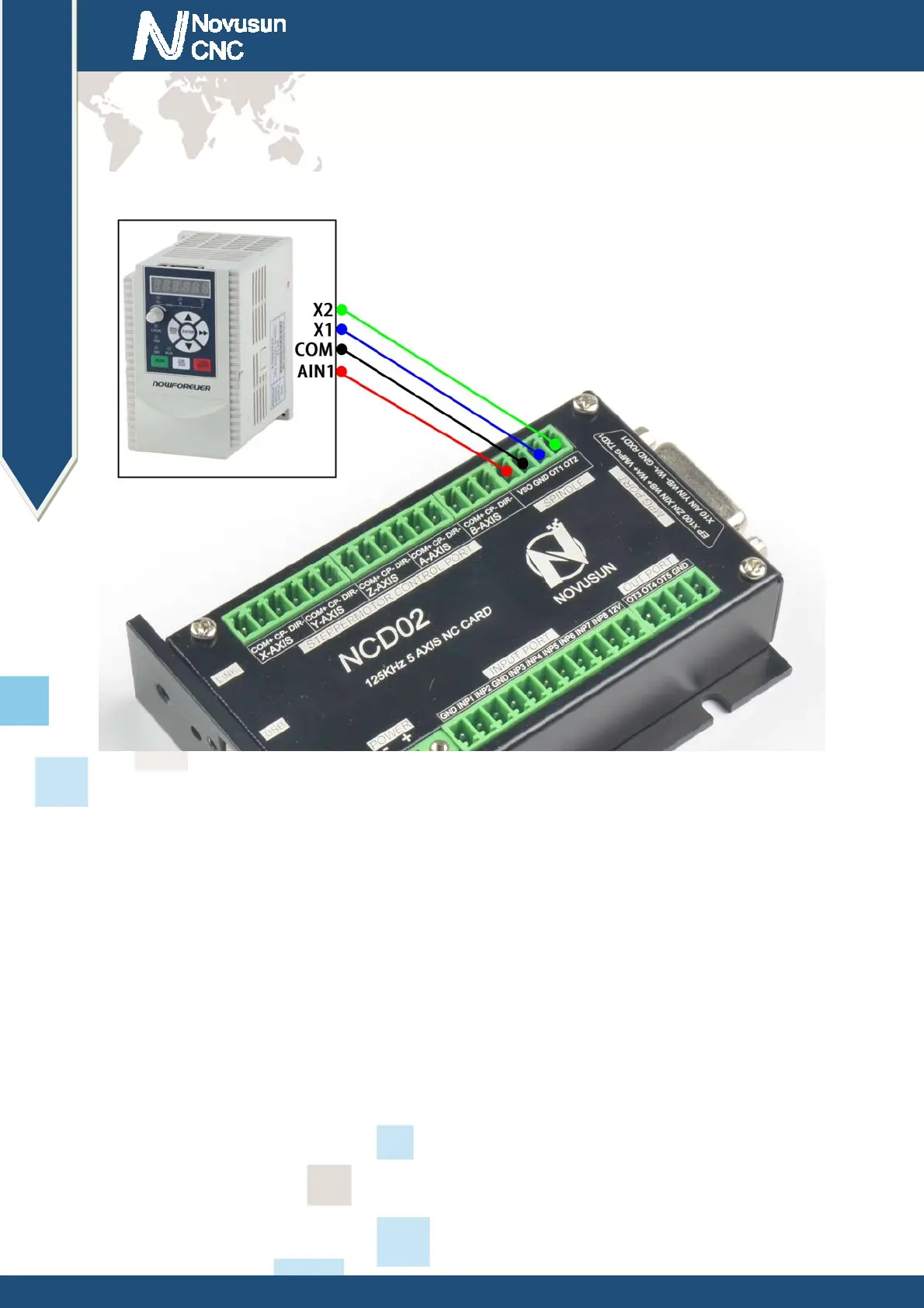

Figure2-11. spindle port definition and connection
2.3.7 Stepper motor port
As Figure 2-2 showed,No.7 port is stepper motor port, which is define as X/Y/Z/A/B. Each
axis is define as COM+/CP-/DIR-. They are Common/Pulse-/Direction-. The connection method
with the stepper motor driver see as Figure 2-12.
