Chapter3 Software & config
Manual of NCH02
- 34 -
Figure3-7.

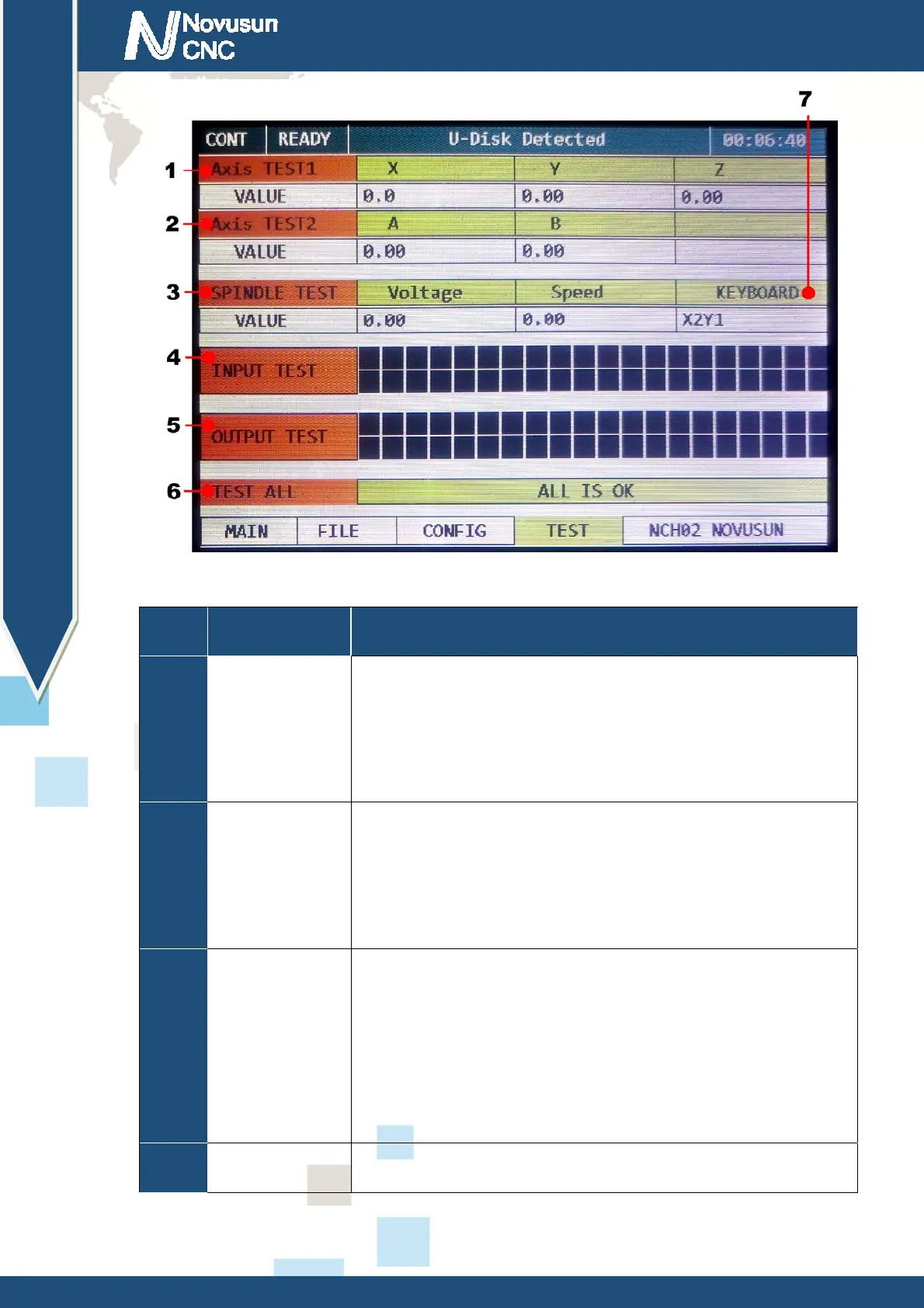

Test and diagnosis page (TEST)
No. Mark Definition
1 Axis TEST1
X/Y/Z 3 axis test, adjust the knob to select the function, after the
confirmation (PUSH) to start the test, the X/Y/Z axis is run
according to the design path.
2 Axis TEST2
A/B 2 axis test, adjust the knob to select the function, after the
confirmation (PUSH) to start the test, the A/B axis is run
according to the design path.
3 SPINDLE TEST
Spindle test, adjust the knob to select the function. According to
the confirmation (PUSH), after starting the test, the spindle
output is changed according to the design voltage, Voltage is the
output voltage display, and Speed is the spindle speed display.
4 INPUT TEST
The input IO value is displayed in real time. One IO corresponds
