Chapter4
Operation and
Application
Manual of NCH02
- 43 -
No.
Mark
Value
Definition
1
PROBE-PIN
2
T
ake IN2 Port as probe input port
2
PROBE-LEVEL
0
The input port IN2 is low
ef
fective (ef
fective when
the input short with GND)
3
PROBE-MOD
1
Set to floating-point probe mode
4
PROBE-B-Z
10
Back distance after probe
T

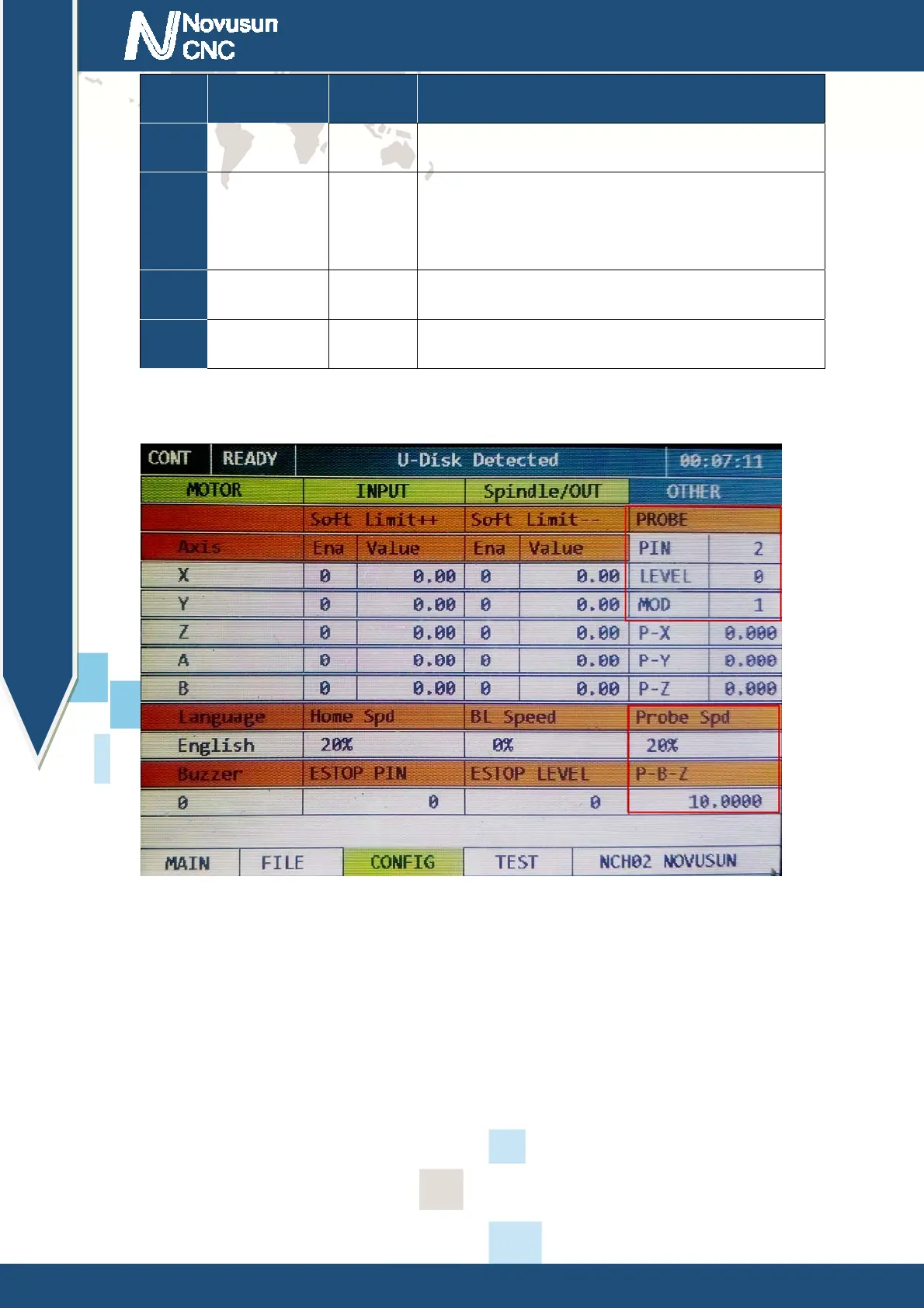

able4-2 Probe configuration ite
m in fixed point probe mode
Figure4-7.
Probe configuration in fixed-point probe mode
www
.nvcnc.net
44
46
