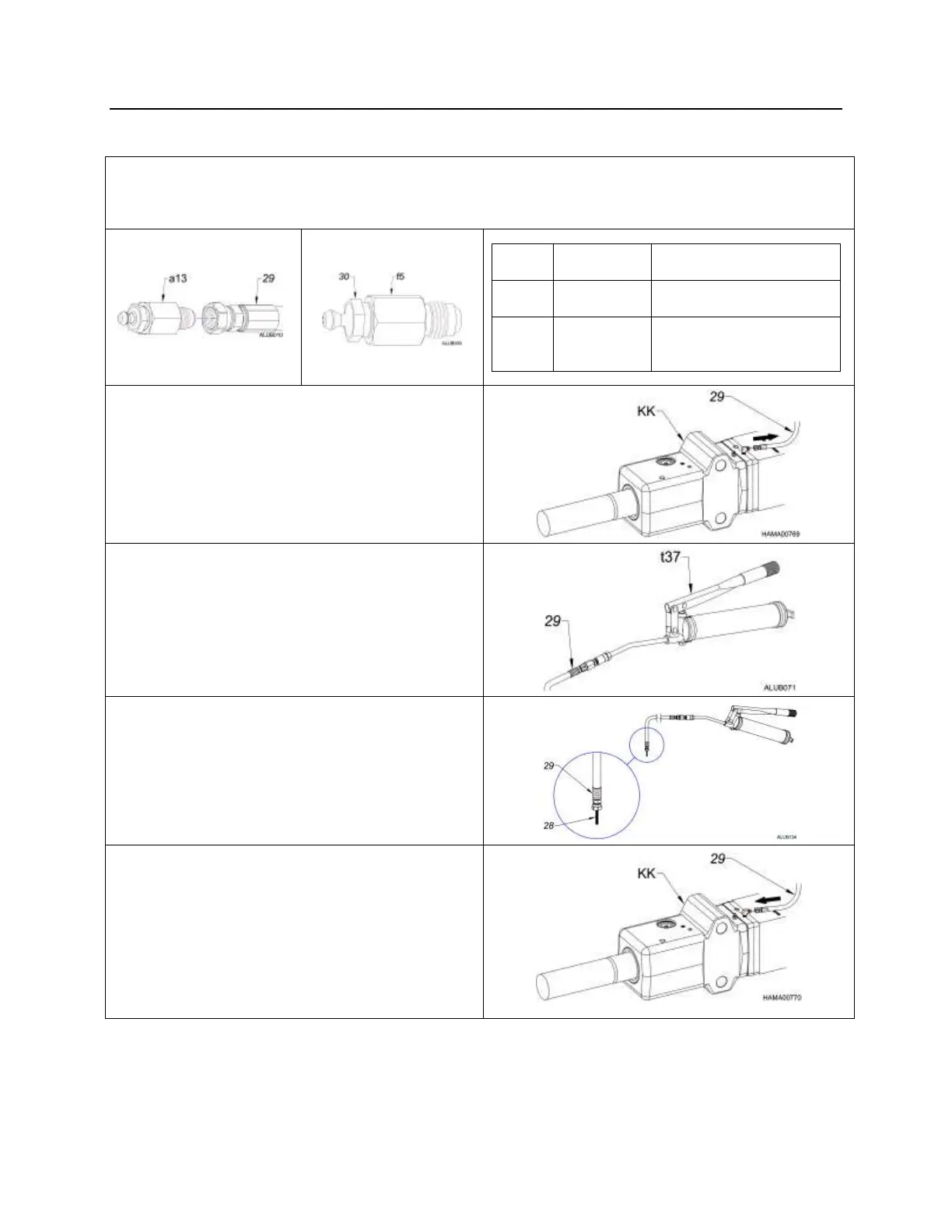

LUBRICATION
AUTO LUBE GREASE LINE PRE-FILLING
5. Install NPK part number G100-8050, hose fill adapter (a13), onto the #6 JIC female
end of the grease line (29) previously removed.
ITEM
PART
NUMBER
DESCRIPTION
30
B160-4010
Grease Fitting - 1/4”
NPT male
f5
K301-6620
Male x Female Adapter -
#6 JIC male x 1/4" NPT
female
6. Remove the grease line (29) at the
hammer assembly (KK).
7. Attach a grease gun (t37) or power
greaser to the grease line (29) leading
to the hammer.
8. Pump grease through the grease line
(29) until a steady stream of grease (28)
is realized at the opposite (hammer)
end.
9. Re-attach the grease line (29) to the
hammer assembly (KK).
