E Type handpiece (According to ISO 3964 type)

Straight Handpiece

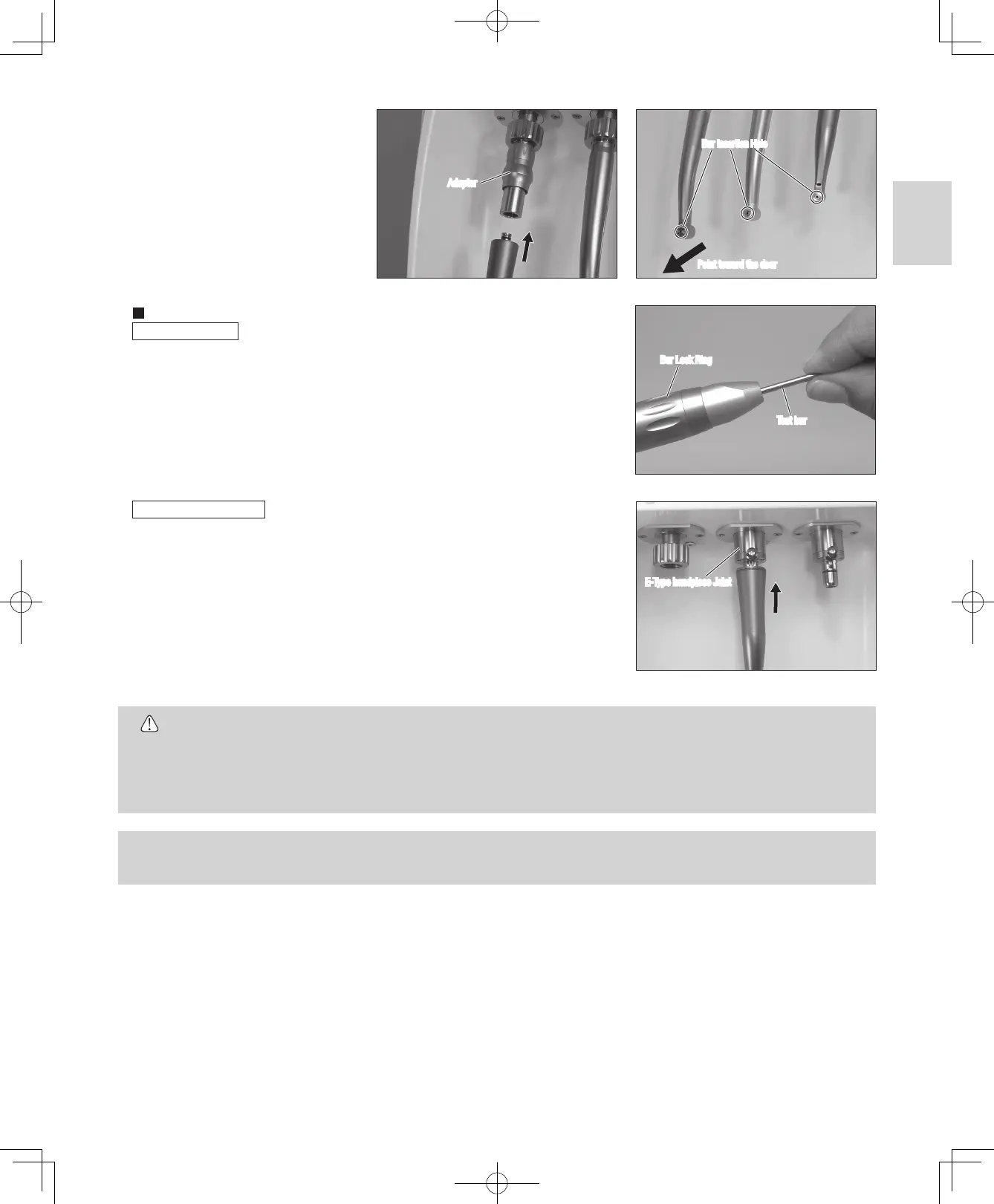

1) Insert the supplied Test Bur into the handpiece and lock the chuck by turning the Bur Lock

Ring (Fig. 15).

2) Open the iCare door and attach the handpiece to the E-Type handpiece joint until it locks

(Fig. 16).

3) Push and pull the handpiece to be sure that it is securely attached.

4) Close the door securely.

Contra Angle Handpiece

1) Remove the bur from the handpiece.

2) Open the iCare door and attach the handpiece to the E-Type handpiece joint until it locks

(Fig. 16).

3) Push and pull the handpiece to be sure that it is securely attached.

4) Point the bur insertion hole toward the door and close the door securely (Fig. 14).

Fig. 14

Fig. 16

Fig. 13

Fig. 15

CAUTION

NOTICE

*C2 Type

Bur insertion Hole

E-Type handpiece Joint

Bur Lock Ring

•Be sure to remove the bur from Air Turbine and Contra Angle Handpieces before attaching the handpiece to the adaptor or Joint.

For Straight handpieces be sure to insert the supplied Test Bur and lock the chuck before connecting to the E-Type handpiece

joint (Fig. 15).

•For Contra Angle and Air Turbine Handpieces point the Bur Insertion Hole towards the door and close the door (Fig. 14). Mist

Filters absorb the oil coming out of the handpiece.

•NSK offers Handpiece Head Filters, which help absorption of oil from the handpiece during lubrication.

* For replacement Handpiece Head Filters, refer to "16. Option Parts List".

Test bur

Adaptor

Point toward the door
