10

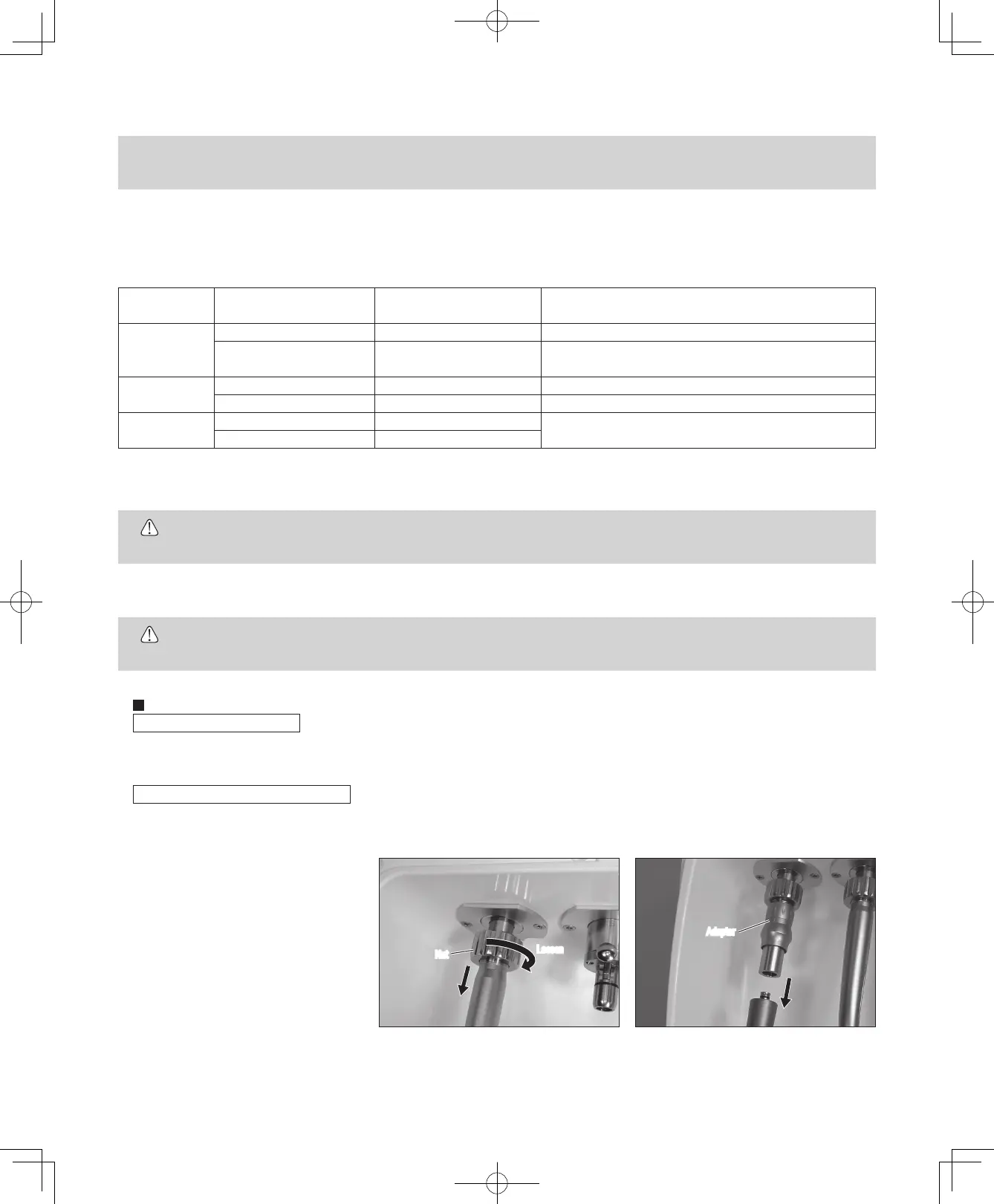

8-3 Removing Handpieces
Removing Air Turbine
For Midwest 4 Hole Air Turbine (According to ISO 9168)
1) Open the door after the Joint LED has turned OFF and lubrication has completely finished.
2) Loosen the nut and pull out the handpiece straight from the Air Turbine Joint (Fig. 17).
For other types of air turbine handpieces
1) Open the door after the Joint LED has turned OFF and lubrication has completely finished.
2) Pull out the Air Turbine straight from the adaptor, or pull out the Air Turbine while pushing up the connector ring of the adaptor (Fig. 18).
4) When the Start Button is pressed lubrication starts. The Joint LED blinks during lubrication.
5) When lubrication is completed, a beep sounds and the Joint LED turns off.
1) Turn on (I side) the Power Switch.
2) Press the Joint Select Button to select the joint to which handpiece is attached. The relevant LED light will illuminate.
3) Press the Air Select Button to select an air purge mode among S, M and L.
8-2 Lubrication and internal cleaning
Mode Joint
Lubrication and Cleaning Time
per Handpiece
Handpiece
S mode
(Short)
Air Turbine Joint 28 sec. Air Turbine (M4/B2 type only)
E-type Handpiece Joint 50 sec.
Contra Angle Handpieces, Straight Handpieces
(The oil drainage time is shorter than that in M mode)
M mode
(Medium)
Air Turbine Joint 30 sec. Air Turbine (Other than M4/B2 type)
E-type Handpiece Joint 64 sec. Contra Angle Handpieces, Straight Handpieces
L mode
(Long)
Air Turbine Joint 33 sec. Handpieces from which oil cannot be drained sufficiently in M
mode (The oil drainage time is longer than that in M mode)E-type Handpiece Joint 84 sec.
CAUTION
CAUTION
Fig. 18Fig. 17*C3 Type *C2 Type
NOTICE
•When Joint LED is off, lubrication for the joint will not start.
•If debris is contained in the oil expelling from a handpiece even after lubrication, lubricate the handpiece again.
Adaptor
Nut
Loosen
•iCare has preset lubrication modes optimal for various handpiece types. Lubricate and clean handpieces by following the
instruction below.
(CS5) iCare-EN_140507.indd 10 2014/05/22 9:02:59
