Operation of BMH Series
5 – 2 – 3 Bone Saw Attachment 200 (P200-OSC)

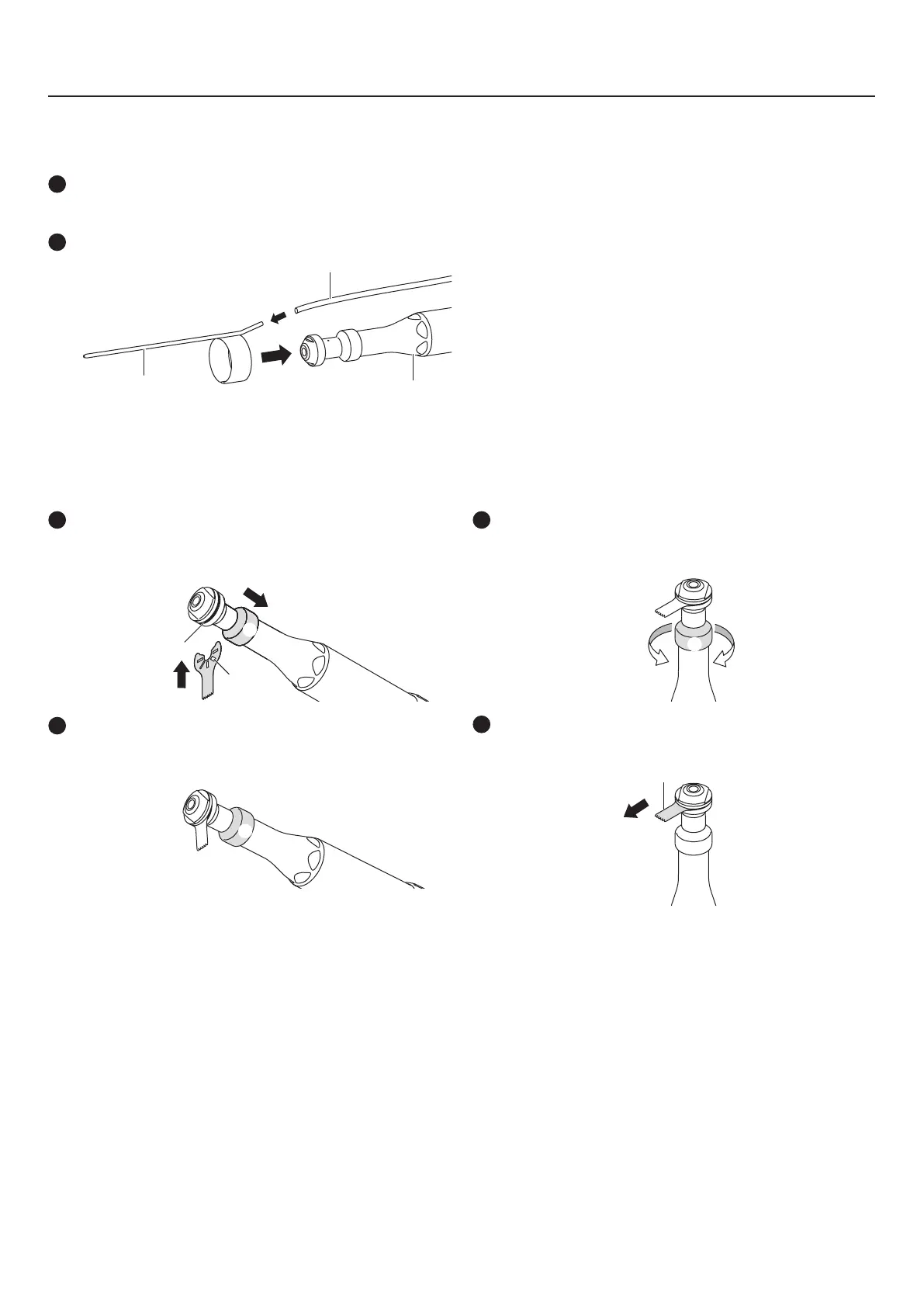

Mounting the Irrigation Nozzle (Optional)
_ Mounting
1
Insert the Irrigation Nozzle Ⓐ onto the Bur Guard Ⓑ of the
Attachment, making sure that the correct end of the Irrigation
Nozzle goes in.
2
Insert the Irrigation Tube Ⓒ into the Irrigation Nozzle Ⓐ.
Ⓑ
Ⓐ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse
order.
* For the related connection and the setting on the Control Unit, refer to OM-SE0021E Primado2 OPERATION MANUAL Control Unit and Foot
Controls.
Mounting and Removing the Cutting Accessories (Optional)
_ Mounting
1
While pulling down the Removal Lever Ⓐ, fit the Alignment
Holes of a Cutting Accessory Ⓑ into the convex part of the
Attachment Ⓒ.
Ⓐ
Ⓒ
Ⓑ
2
Release the Removal Lever Ⓐ to set the Cutting Accessory in
place.
Ⓐ
3
By twisting the Removal Lever Ⓐ clockwise and
counterclockwise, set the Cutting Accessory in place properly.
Ⓐ Ⓐ
4
After mounting the Cutting Accessory Ⓓ, pull it lightly to
confirm that it is securely connected to the Attachment.
Ⓓ
* If the Cutting Accessory is not set in place properly, repeat the
procedure from 1 - 3 to set it in place properly.
_ Removing
Perform steps 1 through 3 of the mounting procedure in the reverse order.
