46
Operation of WPD Series

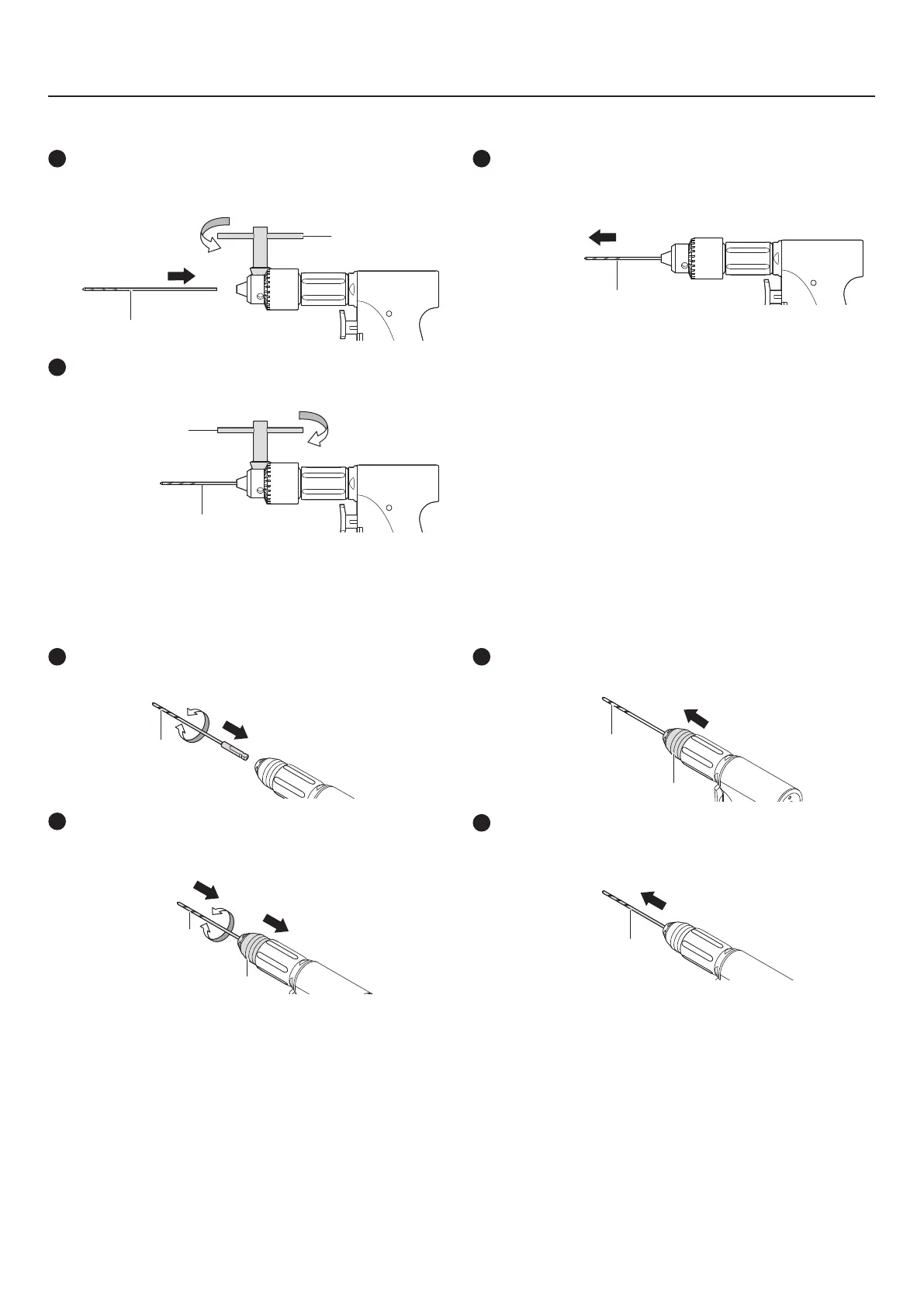

6 – 2 – 2 Primado Wire Pin Driver Attachment (PD-DA-J4/J6)
_ Mounting
1
Rotate the T wrench Ⓐ in the direction of Ⓑ, insert the drill bit,
etc. Ⓒ through the tip of the Attachment and adjust its length.
Ⓑ
Ⓒ
Ⓐ
2
Tighten the screw on the tip of the Attachment (3 places)
equally by rotating the T wrench Ⓐ in the direction of Ⓓ.
Ⓐ
Ⓓ
Ⓒ
3
After mounting the drill bit, etc. Ⓒ, pull it lightly to confirm that
it is securely connected to the Attachment.
Ⓒ
_ Removing
Perform steps 1 and 2 of the mounting procedure in the reverse order.
6 – 2 – 3 Primado Wire Pin Driver Attachment (PD-DA-A)
_ Mounting
1
Insert the commercially available AO-type drill bit Ⓐ while
twisting it with your fingers through the tip of the Attachment.
Ⓐ
2
Slide the Removal Cover Ⓑ and insert the commercially
available AO-type drill bit Ⓐ further while twisting it with your
fingers.
Ⓐ
Ⓑ
3
Release the Removal Cover Ⓑ to set the commercially available
AO-type drill bit Ⓐ in place.
Ⓑ
Ⓐ
4
After mounting the commercially available AO-type drill bit Ⓐ,
pull it lightly to confirm that it is securely connected to the
Attachment.
Ⓐ
_ Removing
Perform steps 1 through 3 of the mounting procedure in the reverse order.
