NUM 1020 - Examples of Programmes and Use

N/M AUTO Function
en-938872/2 9 - 5
9
9.1.5 Examples of Programmes and Use
The programmes below define several possible cases of enabling and inhibiting of
the N/M AUTO function.
Enable/Inhibit without CYHLD
Original programme
%10
E91202=1
X10 Z10
X40 Z40
X80 Z30
X110 Z10
M02

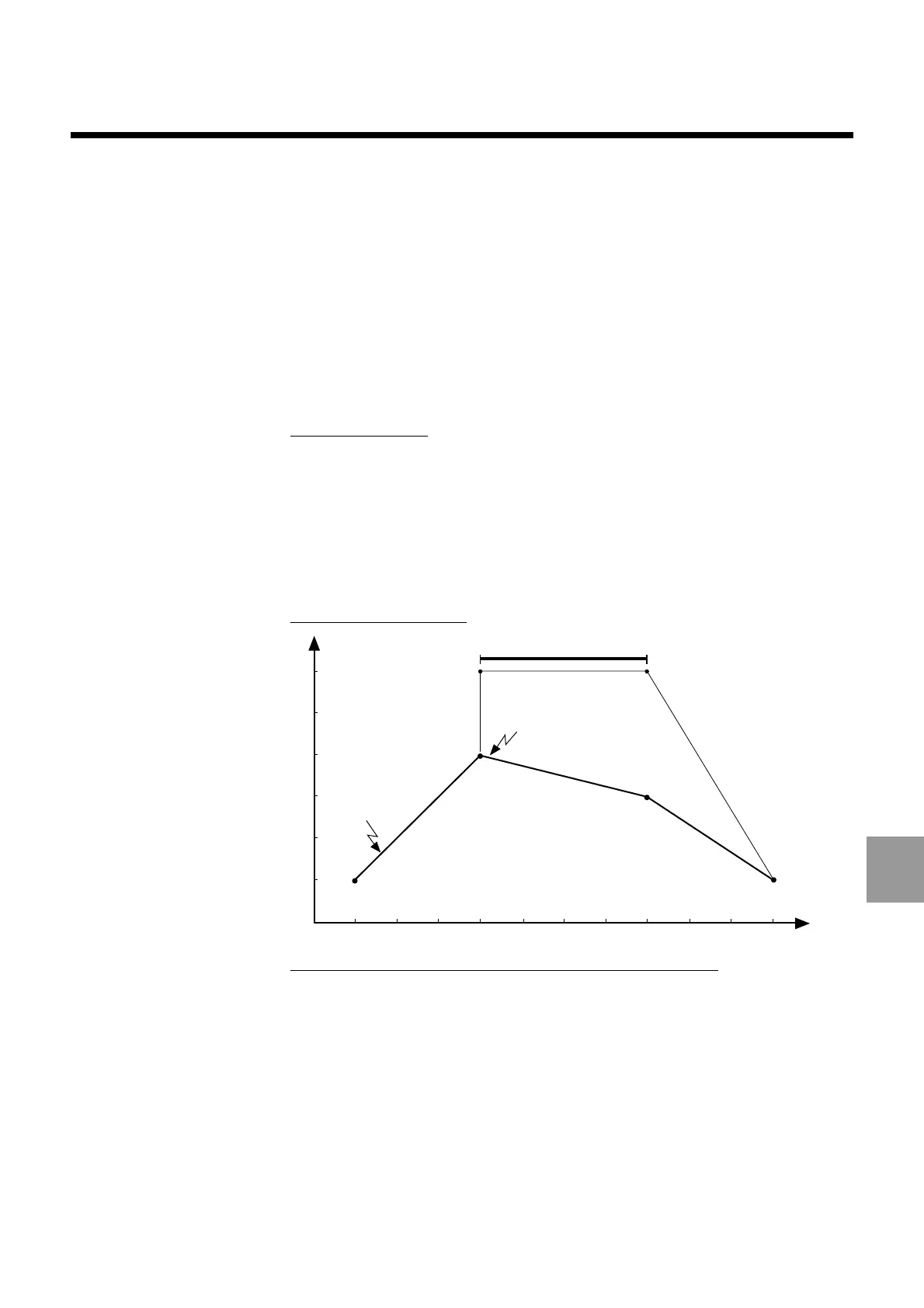

Schematic representation
Z
X
60
20
50
0
10
10 40 80 110
N/M AUTO enabled region
%W2.1=0
%W2.1=1
40
30
Inhibiting taken into account after a cycle stop by function M00
%10
E91202=1
X10 Z10
X40 Z40
M00 Programme stop
X80 Z30 Z axis moved manually to 60
M00 Programme stop
X110 Z10 Z axis interpolated from 60 to 10
M02
