4 - 14 en-938872/2

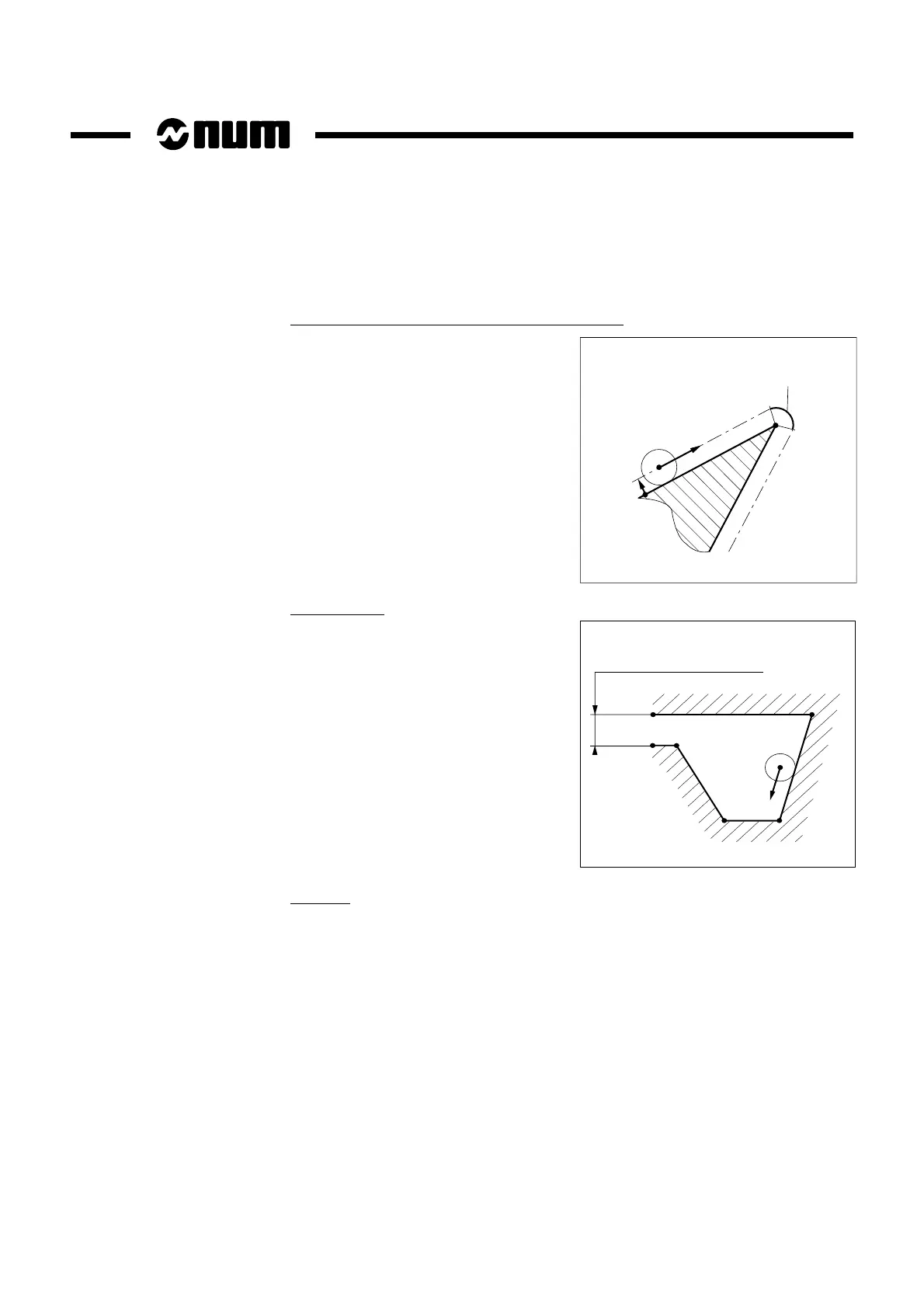

Creation of an Intermediate Block by the System
When the profile includes particular
paths, the system may create a
connection block.
Open contour
When the profile includes a narrowed
section, it must be sufficiently large to
allow passage of the tool. Otherwise,
the system considers the profile to be
closed.
Example
%92
N..
P.BUILD [P(7,NB)] N110 N200
...
...
R.OFF [PA(7,NB)] /-1 /10
Profile offset by 10 to the left
R
-1 offset
Intermediate
block
Figure 1
Narrowed section > tool
Figure 2
