Creating and Managing Symbolic Variable Tables
en-938872/2 4 - 17
4
When the clearance angle is negative or zero (between 0 degrees and -180 degrees),
the profile areas located below this angle are eliminated.
When the relief angle is positive (between 0 degrees and +180 degrees), the profile
areas above the angle are eliminated.

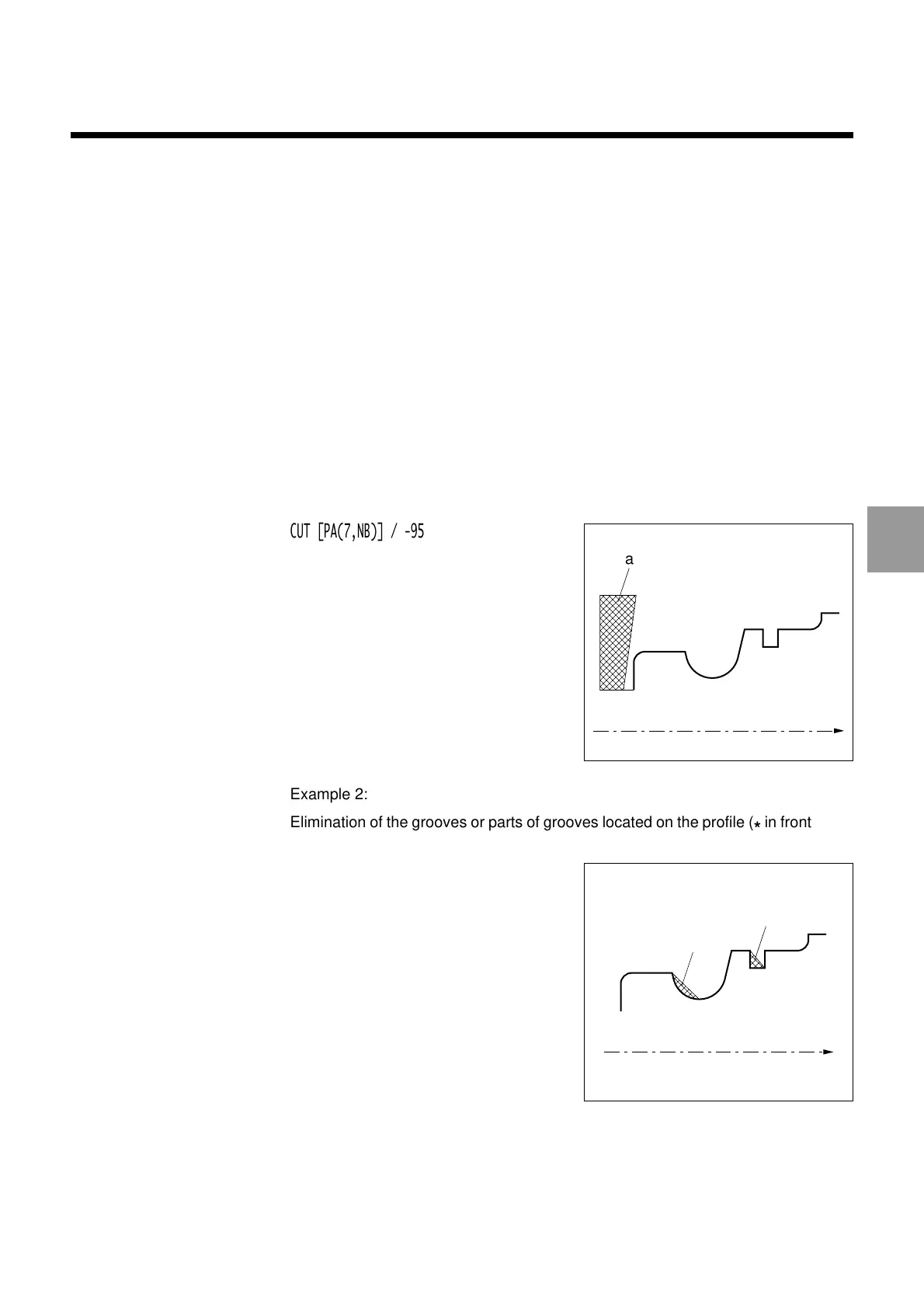

Examples:
«a» shows the areas that are eliminated.
Example 1:
Elimination of the first groove in the profile (no
*
in front of the variable).
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
,,,,,,,
CUT [PA(7,NB)] / -95
Example 2:
Elimination of the grooves or parts of grooves located on the profile (
*
in front of the
variable).
,,,
,,,
,,,
,,,
,,,,,
,,,,,
,,,,,
,,,,,
,,,,,
CUT
*
[PA(7,NB)] / -50
