Numatic TTV 4555 - Fill-Level Indicator

26
Filling the Clean-water Tank
The TTV 4555 is equipped with a large capacity 60 litre clean-water tank allowing, for large areas to be covered
in a single ll.

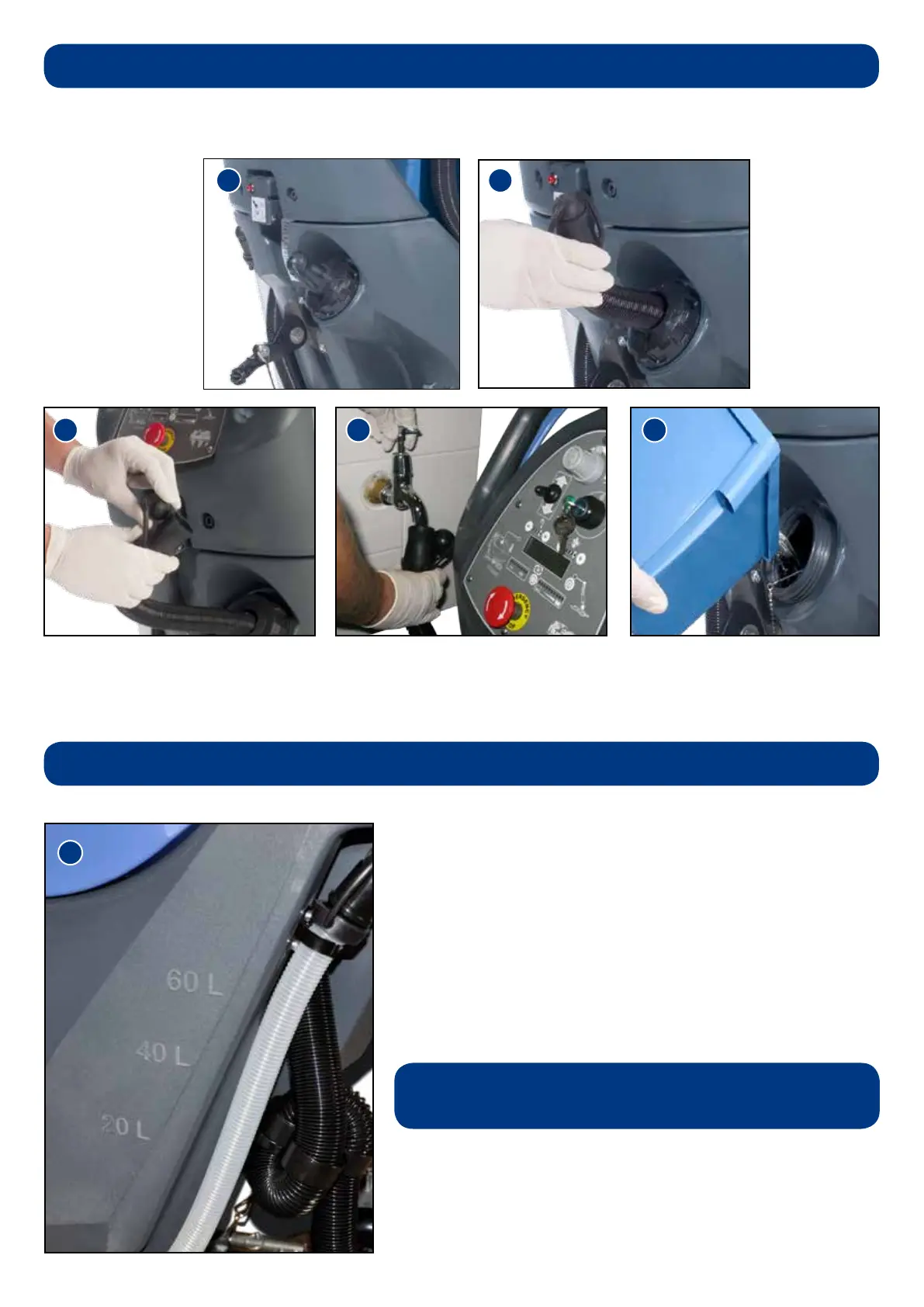

To ll the clean-water tank, extend the hose located to the rear of the machine in the centre of the removable ller cap,
see (Fig.17). Pull out hose (Fig.18). Open the stopper (Fig.19) and place hose under water tap, or use a hose to
commence lling (Fig.20).
Or the tank can be lled by unscrewing the ller cap and using a bucket or similar container (Fig.21).
Machine Set-Up
17
18
19
20
21
Note: Great care must be taken to ensure that contaminants (leaves, hair, dirt, etc.) are not allowed to enter the
clean-water tank during the lling process. If using a bucket or similar, ensure it is always clean and free from debris.
Note:
Always ensure that the waste-water tank is empty before lifting.
The water level in the clean-water tank can be measured using the
scale on the left rear side of the machine (Fig.22).
The clean-water bottom tank holds 60 litres.
Fill-level Indicator
22
