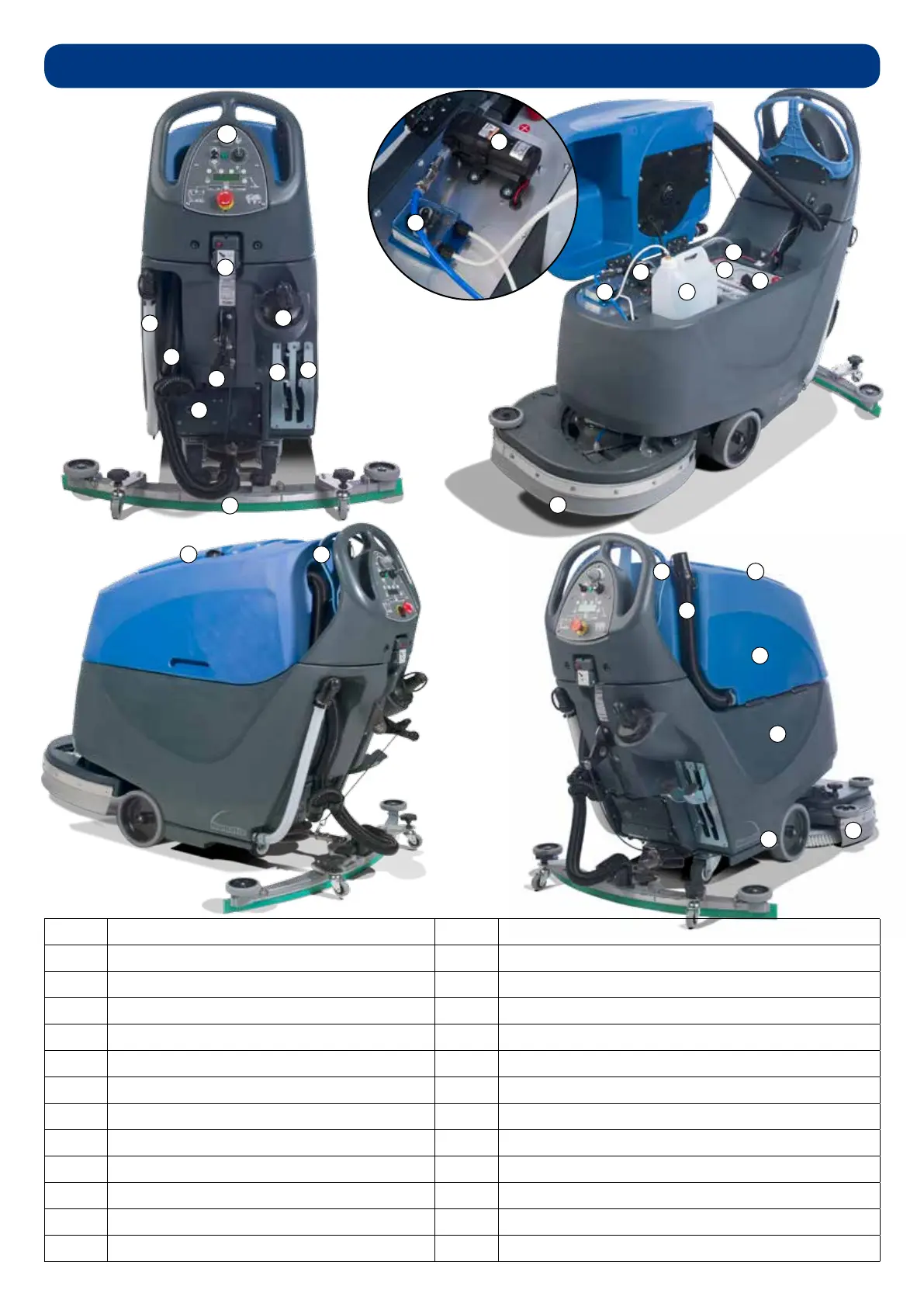

Machine Overview
1
2
3
4
6
5
7
8
9
10
1 Operator Control Panel (see page 6) 14 Water Pump
2 Charging Socket 15 Clean Water Filter
3 Clean-water Fill Point 16 Gel Batteries
4 Floor-tool Lifting Lever 17 50 Amp Battery Fuses x 2 ( 1 x spare)
5 Clean-water Level Indicator / Drainage Hose 18 Waste-water Emptying Hose
6 Floor-tool Vacuum Hose 19 Top Tank Hood Release Catches
7 Charging Light 20 Top Tank (waste-water)
8 Brush Deck-lifting Pedal 21 Bottom Tank (clean-water)
9 Extra Brush Load Pedal 22 Adjustable Side Skirt
10 Semi Parabolic Floor-tool 23 Free-wheel Lever
11 Brush Deck 24 Control handle (Variable Speed - start / stop trigger)
12 Chemical Dosing Tank (5 litre) 25 Top-tank Hood
13 Chemical Dosing Pump
14
24
23
