Numatic TTV 4555 - Control Panel Overview

6
For full easy to follow instructions on control panel set up and use, see machine operation page 32 & 34.

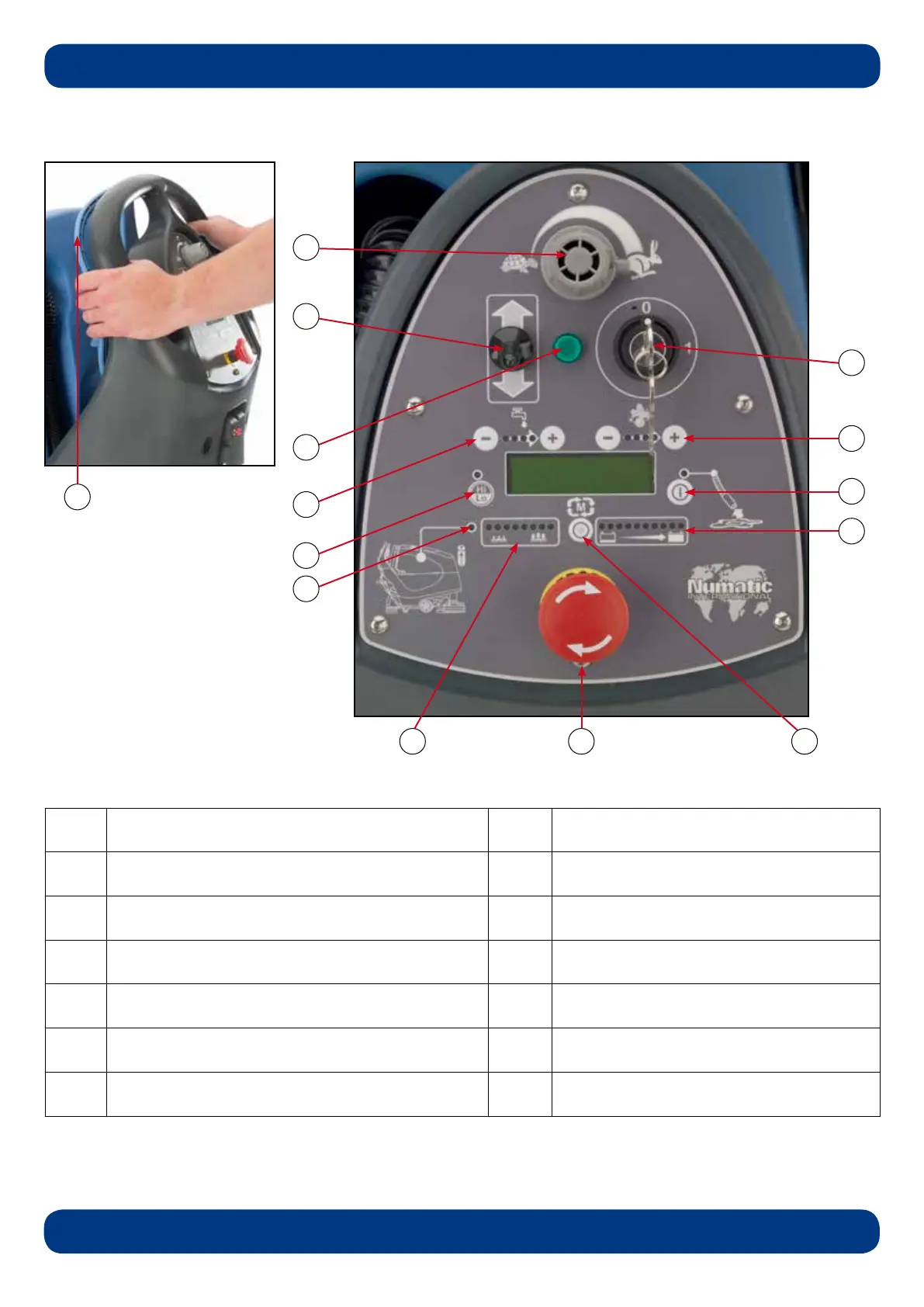

Control Panel Overview
2
1
1 Control handle (Variable Speed - start / stop trigger) 8 Main Control On / Off Key
2 Speed Control 9 Chemical Mix Adjustment
3 Forward / Reverse Switch 10 Off Aisle Vacuum Button / Whisper mode
4 Traction Status Indicator 11 Battery Charge Level Meter
5 Water Flow Rate Adjustment 12 Hour Meter Toggle Button
6 Hi - Lo Button 13 Brush Operation / Load Indicator
7 Recovery Tank ‘Full’ Indicator 14 Emergency Stop
3
4
5
6
7
8
9
10
13
11
1214
