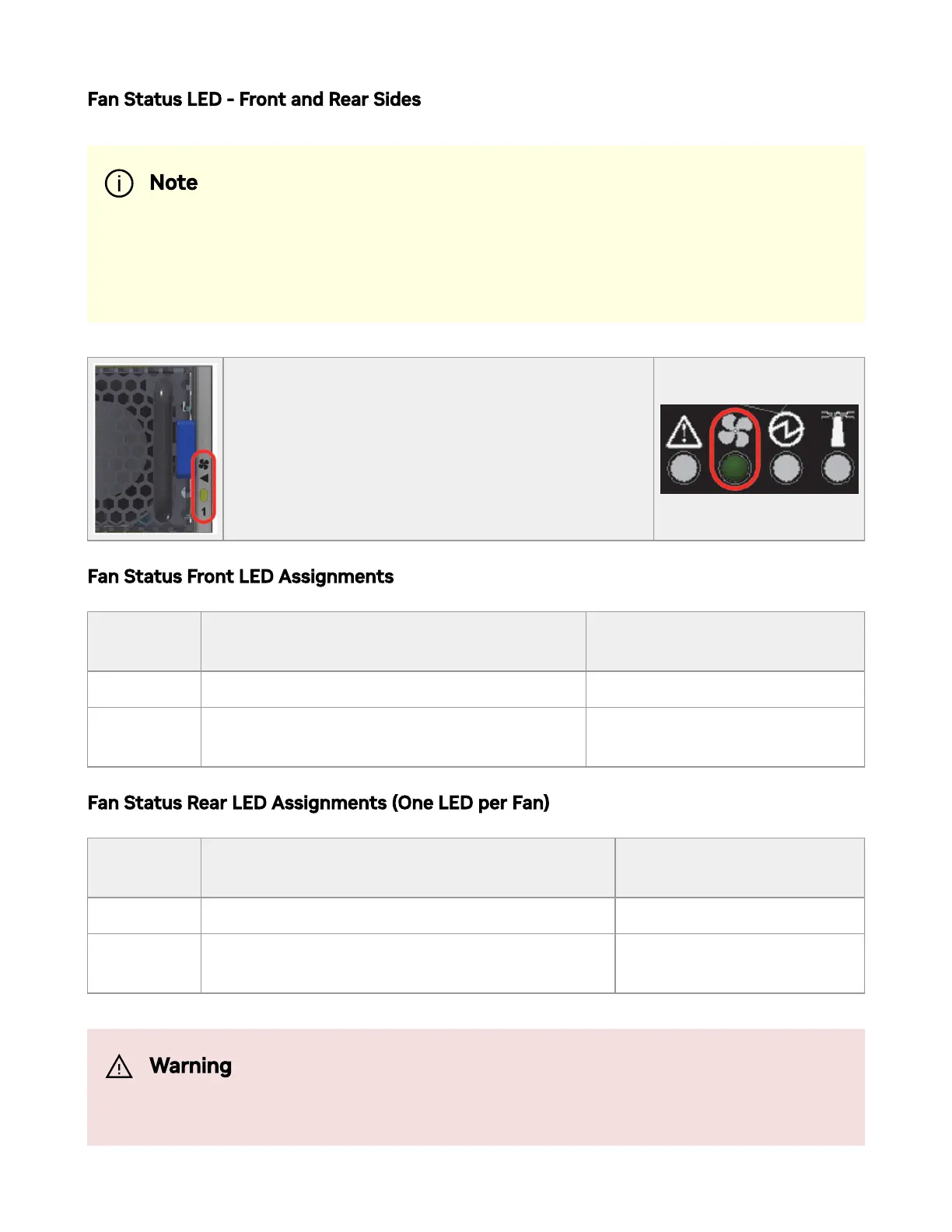

Fan Status LED - Front and Rear Sides
Both of these LEDs in the red ovals show the
fans’ status.
Fan Status Front LED Assignments
LED
Behavior
Description Action Required
Solid Green All fans are up and running. N/A
Solid
Amber
Error, one or more fans are not operating
properly.
The faulty FRUs should be
replaced.
Fan Status Rear LED Assignments (One LED per Fan)
LED
Behavior
Description Action Required
Solid Green A specic fan unit is operating. N/A
Solid
Amber
A specic fan unit is missing or not operating
properly.
The fan unit should be
replaced.
Note
The images are for illustration only. The status LEDs' order and form
may slightly vary, depending on the system.
Warning
