Nvidia Spectrum-2 SN3420 - RJ45 to DB9 Harness Pinout; Disassembly and Disposal; Disassembly Procedure

NVIDIA Spectrum-2 SN3000 1U and 2U Switch Systems Hardware User Manual 153

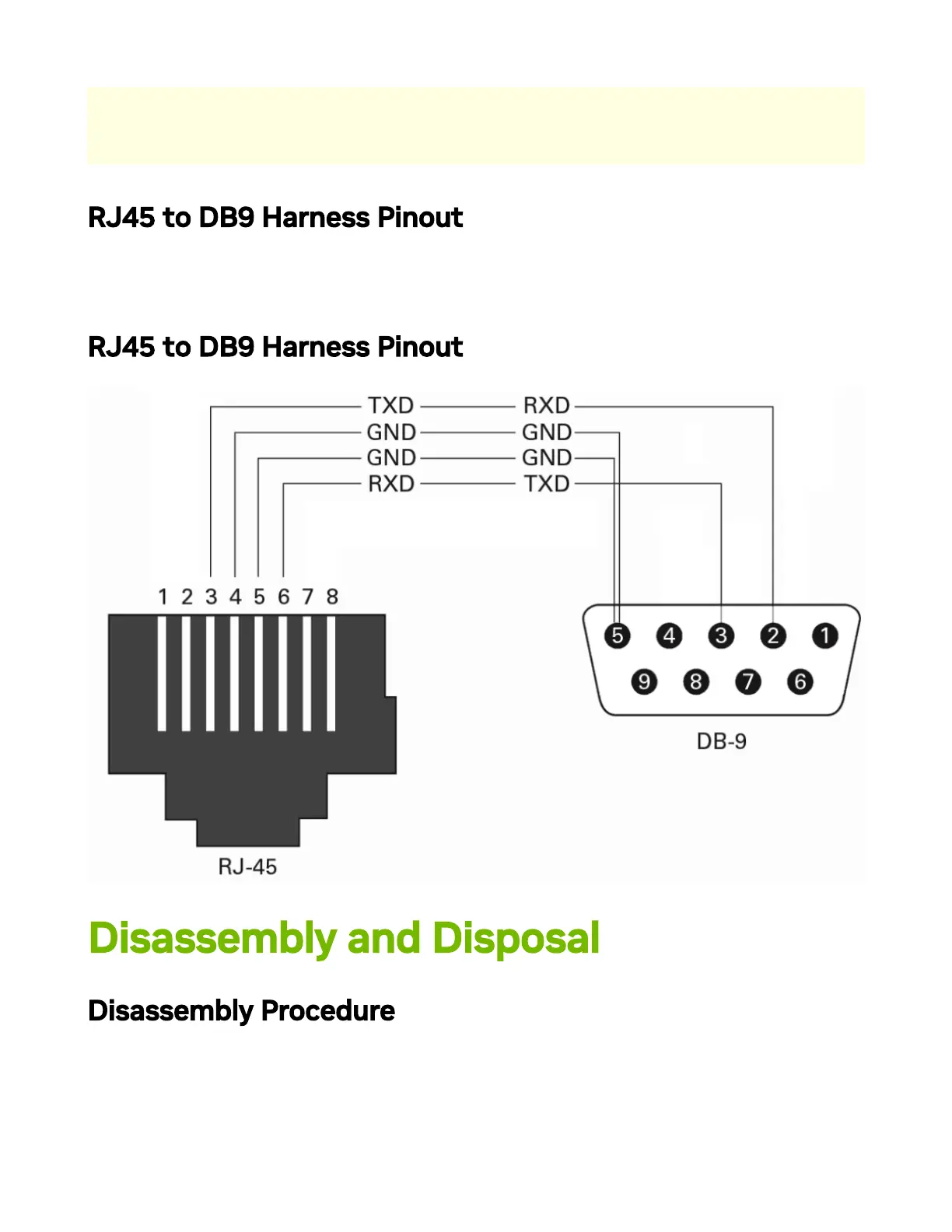

RJ45 to DB9 Harness Pinout
The RS232 harness cable (DB9 to RJ45) is supplied with the switch to connect a host PC
to the Console RJ45 port of the system.
RJ45 to DB9 Harness Pinout
Disassembly and Disposal
Disassembly Procedure
To disassemble the system from the rack:
1. Unplug and remove all connectors.
Logic 0 indicates normal operation; logic 1 indicates loss of
signal.
