In case there are cables that cannot bend within the rack, or in case more space is
needed for cable bending radius, it is possible to recess the connector side or the
FRU side by 3.5" (8.9 cm), by optional placement of the system’s rails:

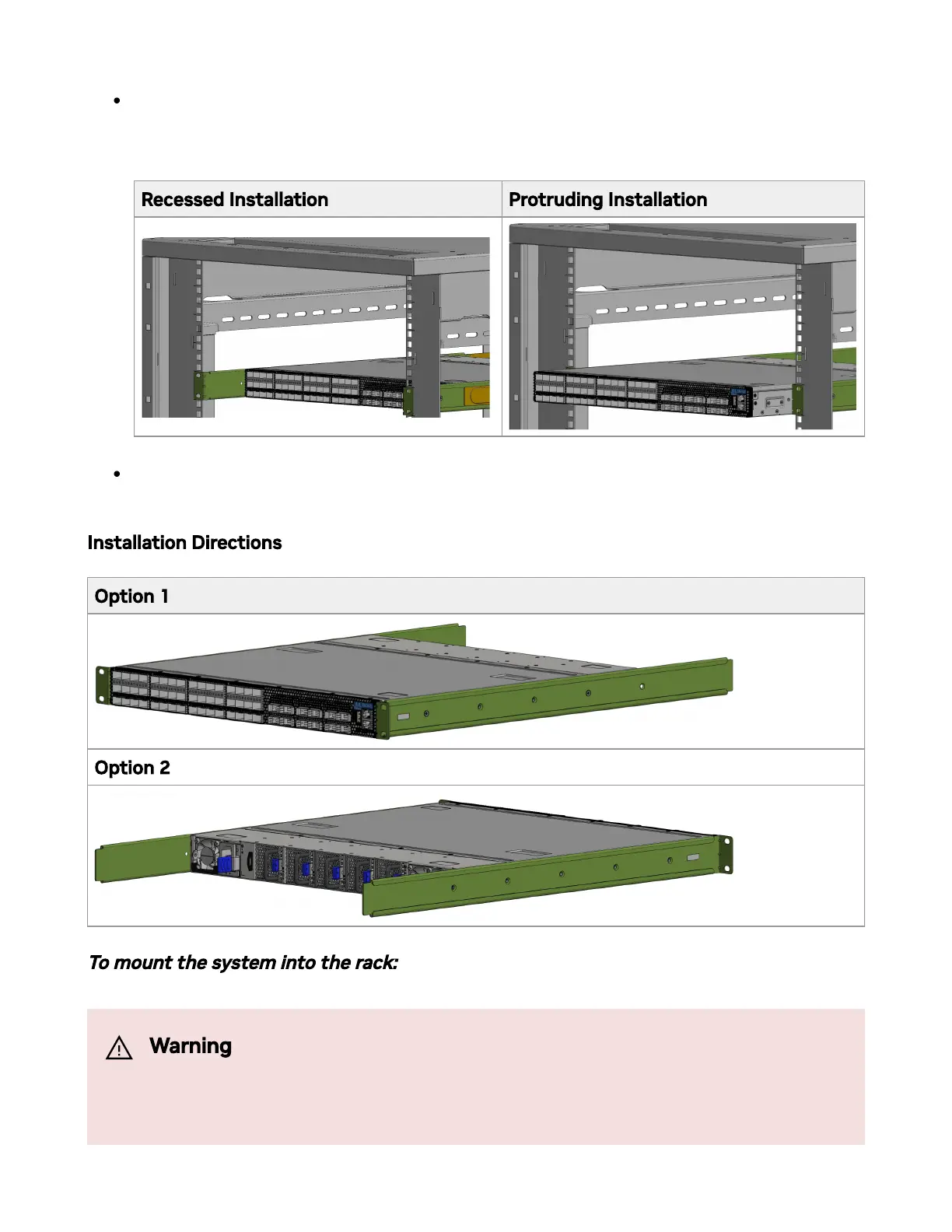

Recessed Installation Protruding Installation
The FRU side is extractable. Mounting the rack blades inverted to the FRU side
(Option 2) will allow you to slide the FRUs, in and out.
Installation Directions
Option 1
Option 2
To mount the system into the rack:
Warning
To Next Page
