3. On the rear side of the cabinet, install the two blades (B) in the selected rack unit,
using four M6 screws (C). Do not tighten the screws yet.

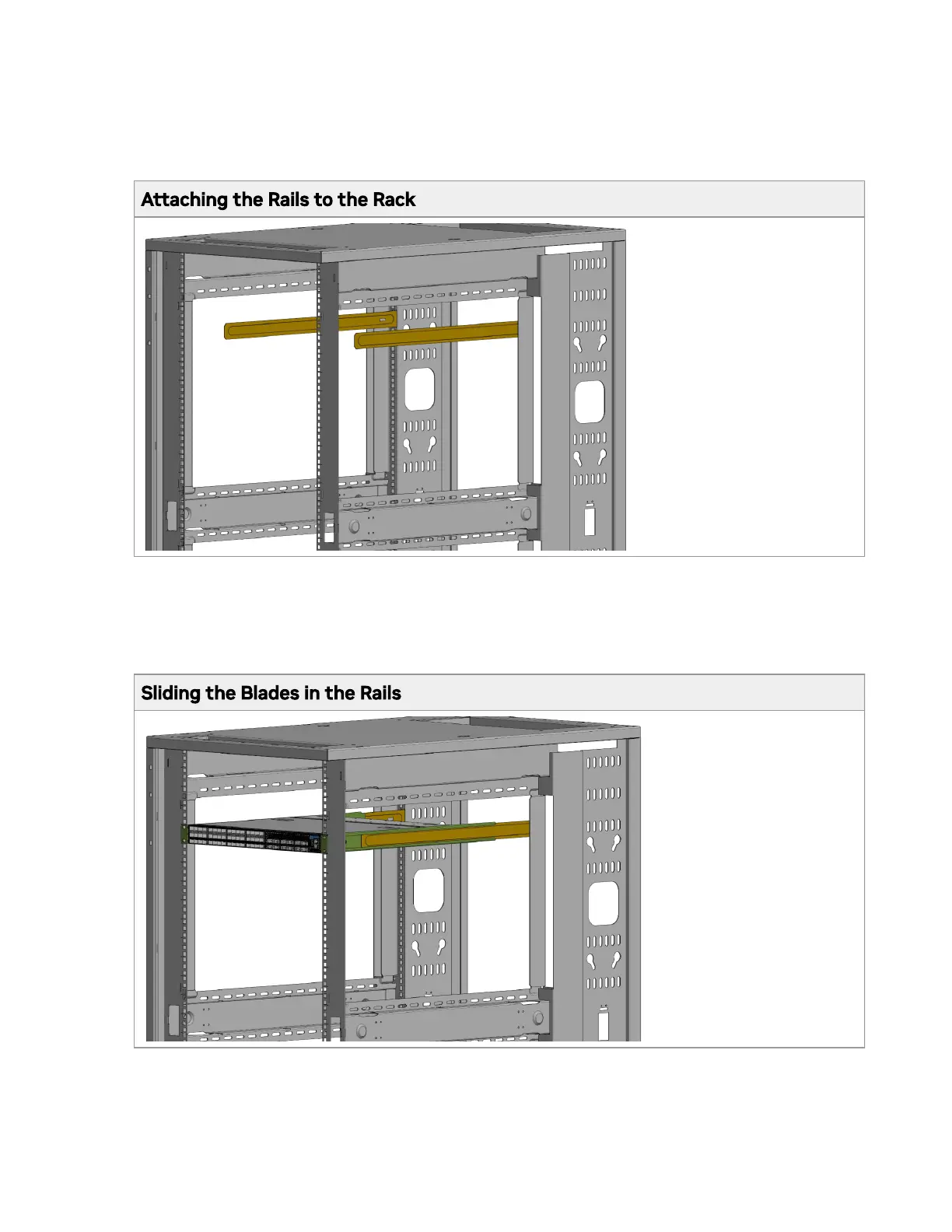

Attaching the Rails to the Rack
4. Slide the two blades into the left and right rails, and adjust them to t your rack's
depth. Use four M6 screws (D) to x the blades into the rack. Do not tighten the
screws yet.
Sliding the Blades in the Rails
5. Secure the system in the rack by tightening the 8 screws inserted in Step 3 and
Step 4 with a torque of 4.5±0.5 Nm.
