NVIDIA Spectrum-2 SN3000 1U and 2U Switch Systems Hardware User Manual 94

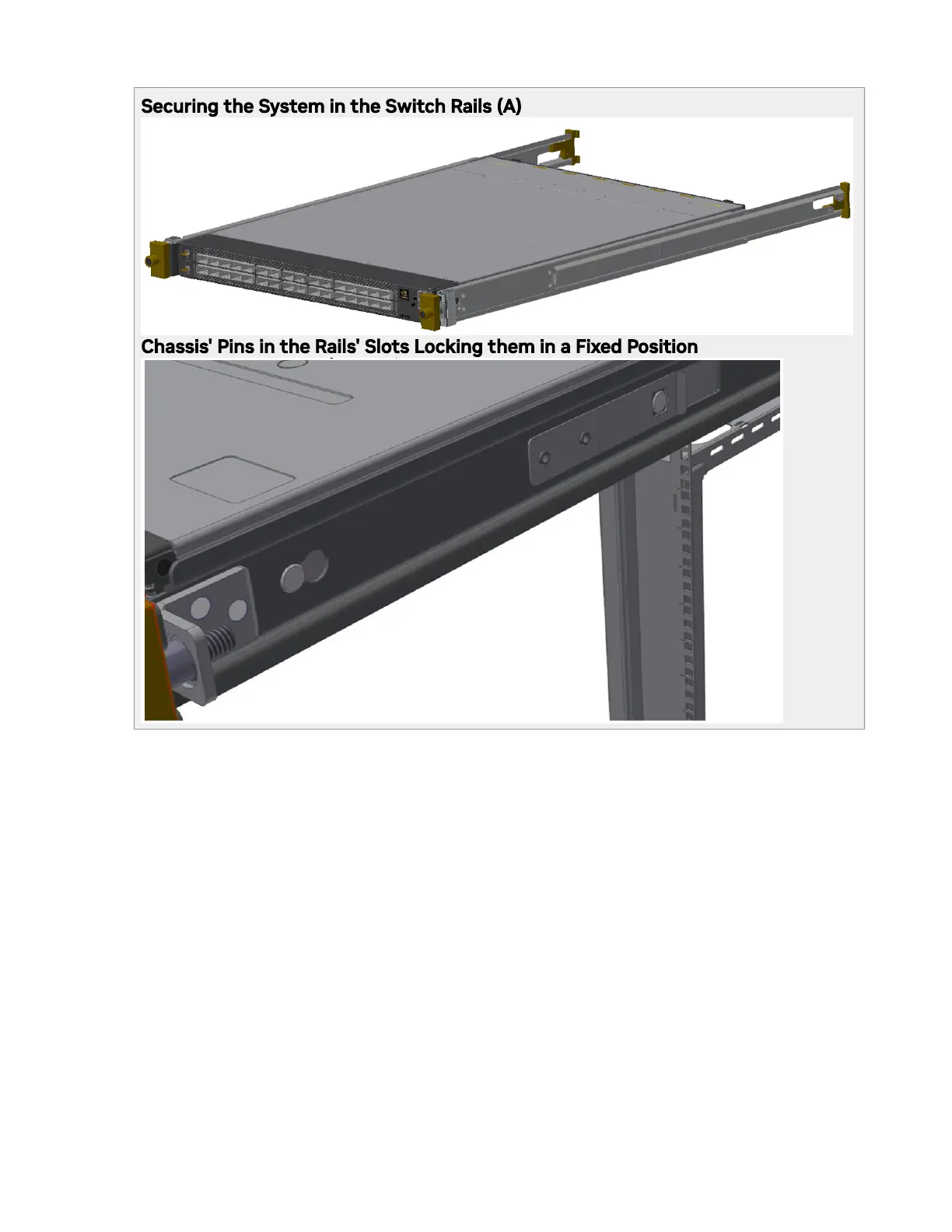

Securing the System in the Switch Rails (A)
Chassis' Pins in the Rails' Slots Locking them in a Fixed Position
3. Mount both of the rack rails (B) into the rack by angularly inserting the brakes
located at the rails edges into the designated slots in the rack unit, as shown in the
following gure:
