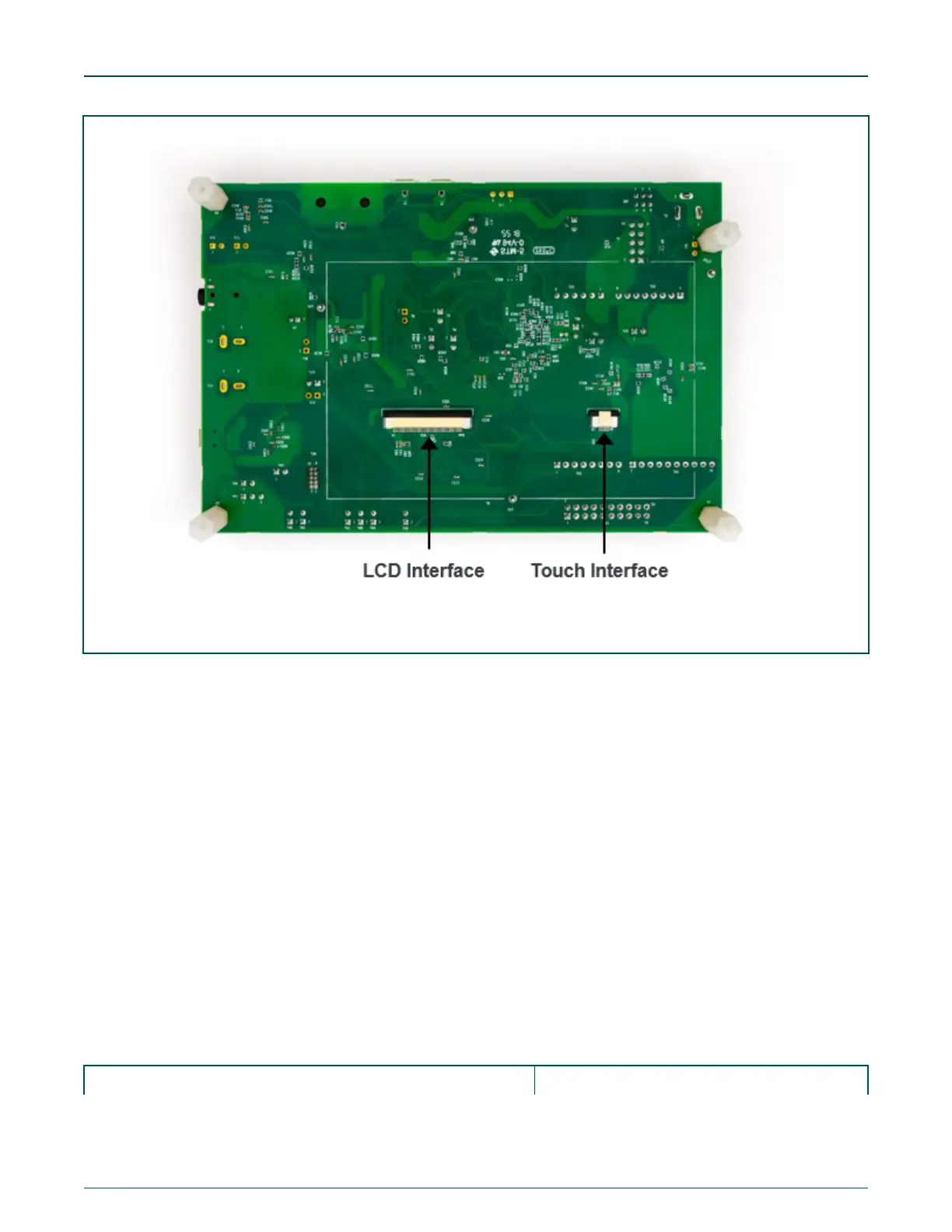

Figure 3. Overview of the MIMXRT1060 EVK board (Back side)
2.1 i.MX RT1060/1064 processor
The i.MX RT1060/1064 is a new processor family featuring NXP advanced implementation of the Arm Cortex-M7 Core. It provides
high CPU performance and best real-time response. i.MX RT1060/1064 provides various memory interfaces, including SDRAM,
Raw NAND flash, NOR flash, SD/eMMC, Quad SPI, HyperBus, and a wide range of other interfaces for connecting peripherals,
such as WLAN, Bluetooth
™
, GPS, displays, and camera sensors. i.MX RT1060/1064 has rich audio and video features, including
LCD display, basic 2D graphics, camera interface, S/PDIF, and I2S audio interface.
The i.MX RT1060/1064 applications processor can be used in areas such as industrial HMI, IoT, motor control, and home
appliances. The flexibility of the architecture enables it to be used in a wide variety of other general embedded applications too.
The i.MX RT processor provides all interfaces necessary to connect peripherals such as WLAN, Bluetooth
™
, GPS, camera
sensors, and multiple displays.
The more detail information about i.MX RT1060/1064 can be found in the Datasheet and Reference Manual.
2.2 Boot mode configurations
The device has four boot modes (one is reserved for NXP use). The boot mode is selected based on the binary value stored in
the internal BOOT_MODE register.
Switch (SW7-3 and SW7-4) is used to select the boot mode on the MIMXRT1060/1064 EVK board.
Table 2. Boot mode pin settings
BOOT_MODE[1:0] (SW7-3 SW7-4) BOOT Type
Table continues on the next page...
NXP Semiconductors
Specifications
MIMXRT1060/1064 Evaluation Kit Board Hardware User's Guide, Rev. 0, 06/2020
User's Guide 7 / 19
