NXP Semiconductors MIMXRT1060 User Manual

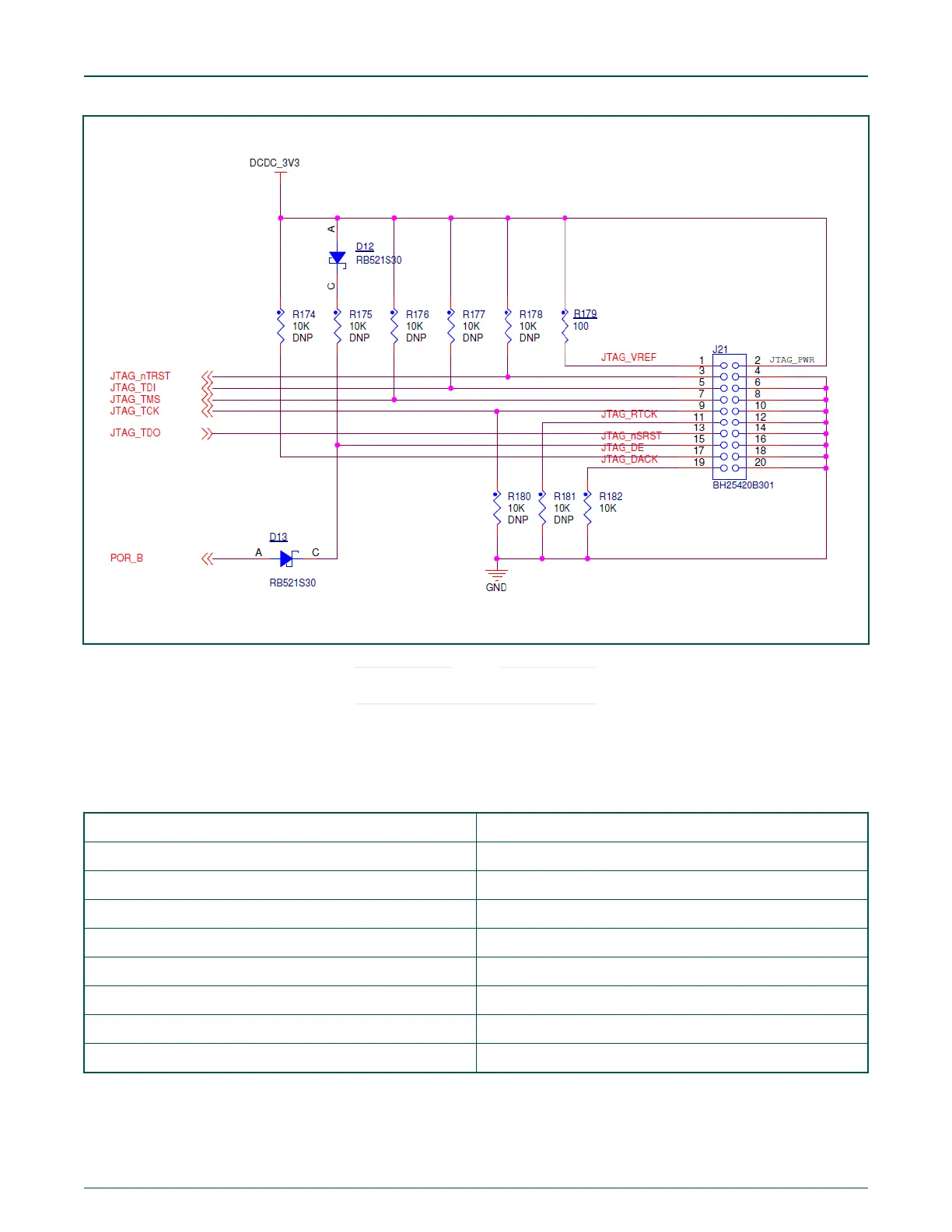

Figure 6. JTAG pin definitions
To use the JTAG port, remove J47 and J48.
NOTE
2.13 Arduino expansion port
J22 – J25 is defined as Arduino interface. Table 7 lists the pin definitions of Arduino interface.
Table 7. Arduino Interface pin definitions
J22 J23
UART_RX/D0 A0/ADC0
UART_TX/D1 A1/ADC1
D2/INT0 A2/ADC2
D3/INT1/PWM/OC2B A3/ADC3
D4/T0/XCK A4/ADC4/SDA
D5/TI/PWM A5/ADC5/SCL
D6/AIN0/PWM/OC0A
D7/AIN1/PWM
NXP Semiconductors
Specifications
MIMXRT1060/1064 Evaluation Kit Board Hardware User's Guide, Rev. 0, 06/2020
User's Guide 13 / 19
