Oce CS2224 - Page 45

45

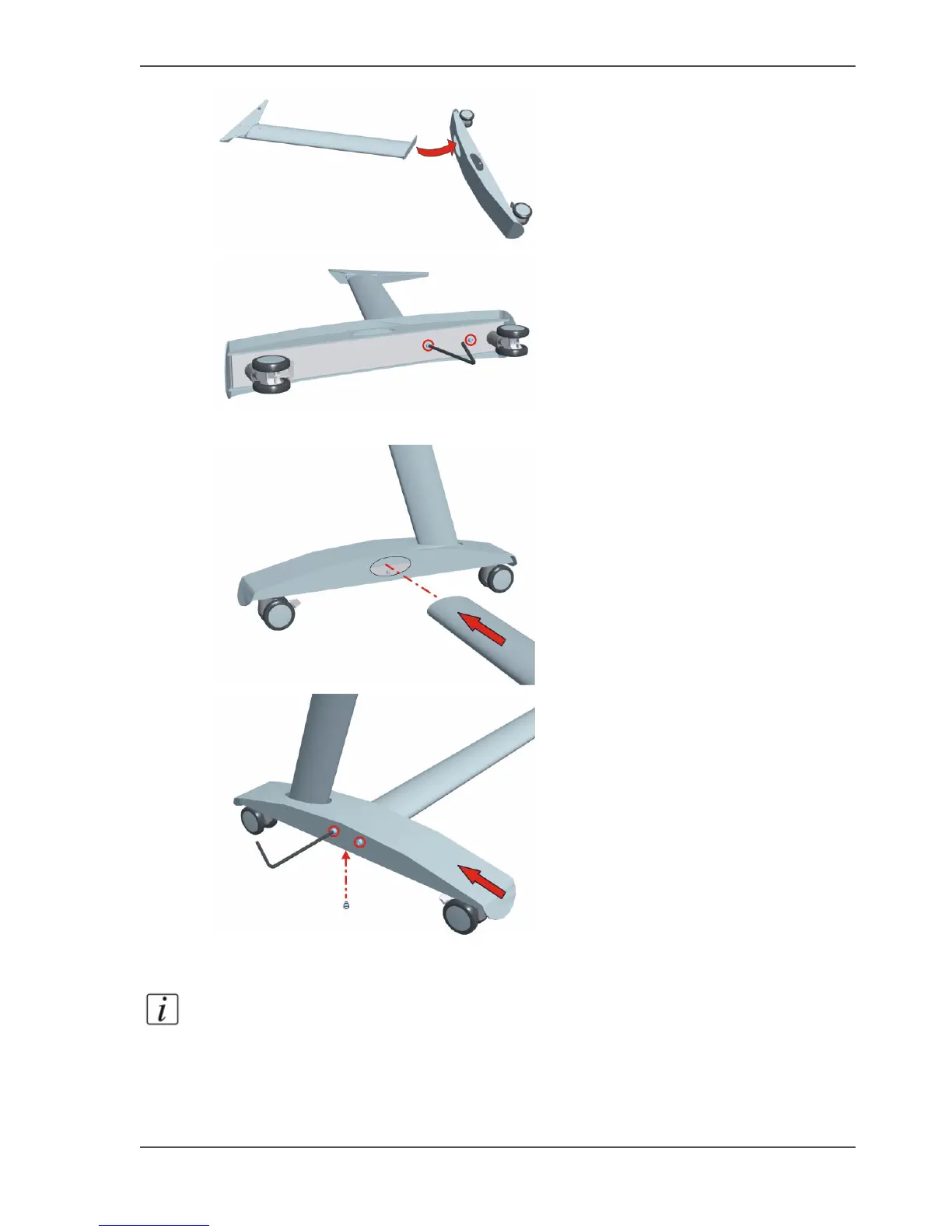

Assemble the Stand of the Scanner
[71]
[72]
2. Attach the base bar (with the holes at the bottom) to the 2 feet (2 x 3 Torx screws).
[73]
[74]
3. Put the stand on the feet.
4. Fix the top bar to the legs (2 x 2 Torx screws).
Note: Watch the position of the sticker with the "Back" indication.
