14. TECHNICAL DATA
14.3. Diagrams

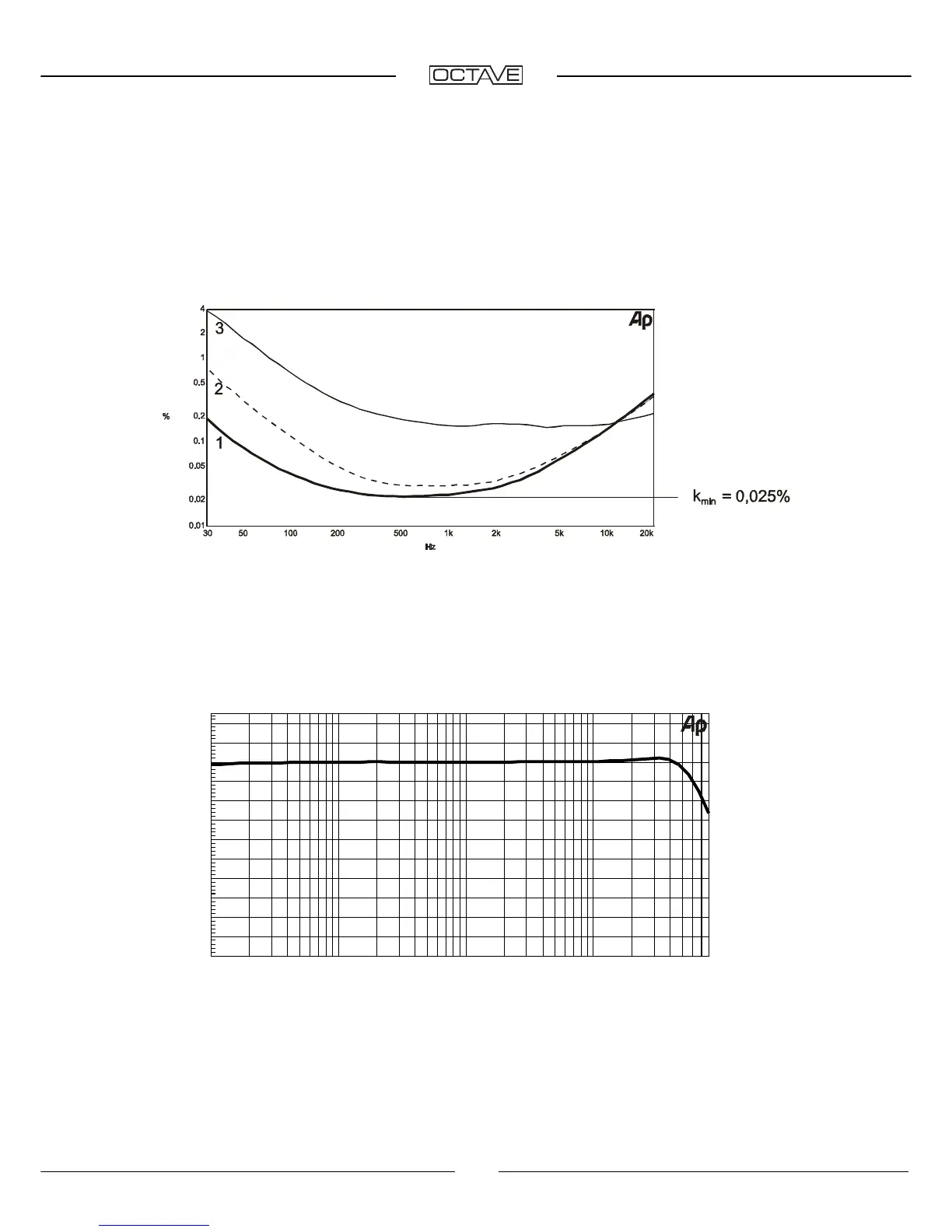

THD at 4 V into 6 ohms from 30 Hz to 20 kHz at a variety of bias settings
Diagramm 1
Curve 1: Bias adjusted correctly
Curve 2: Bias 10% out
Curve 3: Bias 30% out
Graph 2: Frequency response, 4 V into 4 ohms
T
h
e
f
r
e
q
u
e
n
c
y
r
The Frequency response curve clearly shows the low frequency
extension of the V 80 SE (flat to below 10 Hz).
