6. CONNECTIONS

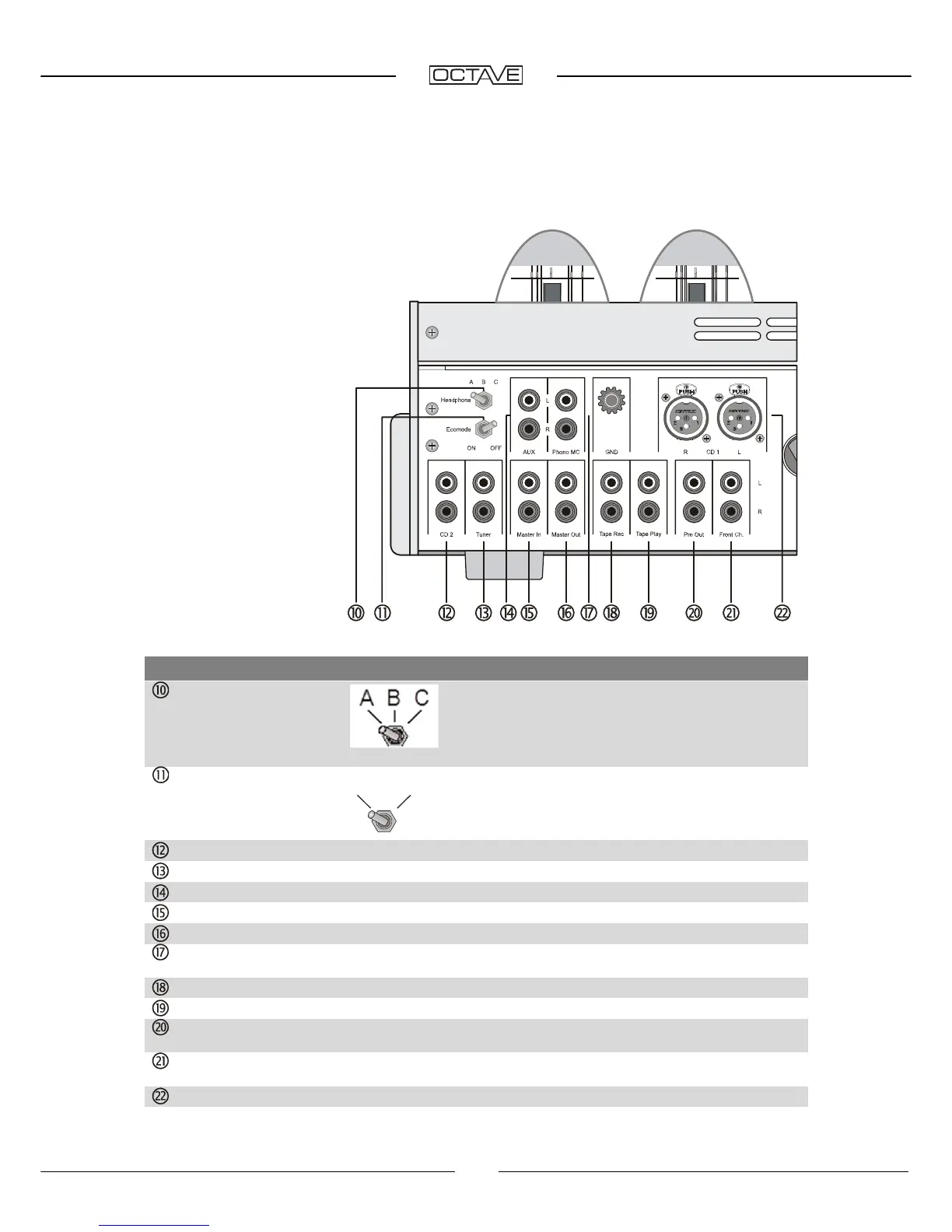

6.1. V 80 SE rear panel
Legend
Headphone
A: Switch left: speaker playback
B: Switch centre: speaker and headphone playback
C: Switch right: headphone playback, tube
power amplifier is switched off. (See Chap. 7.4.)
Ecomode
A: Switch left: Ecomode switched on
B: Switch off: Ecomode off
(See Chapter 7.4.)
CD 2
CD line level input, RCA phono (See Chapter 6.3.)
Tuner
Tuner line level input, RCA phono (See Chap. 6.5.)
AUX
Additional RCA line level input for Video, etc. (See Chapter 6.4.)
Master In
Power amp input when "Extern" function is on (See Chapter 7.2.)
Master Out
Preamp output when "Extern" function is on (See Chapter 7.2.)
Phono
RCA line level input, or if phono option: MM/MC input
(See Chapters 6.1 and 11)
Tape Rec
Recording output for tape or DAT (See Chapter 6.6.)
Tape Play
Playback input for tape or DAT (See Chapter 6.6.)
Pre Out
Adjustable preamp out for subwoofer, etc.
This output has no muting option. (See Chapter 7.3.)
Front Channel
Input for front R + L front channels of a multichannel
receiver/Processor (See Chapter 6.7)
CD 1
CD line level input, XLR (See Chapter 6.2.)
A
B
