11 Measuring Procedure
Instruction Manual Pentacam® AXL (G/70100/EN 1121 Rev04) 33 / 85
Check that
fresh paper has been put onto the chin rest or the chin rest has
been cleaned and disinfected, sec. 14, page 62.
the forehead rest has been cleaned and disinfected after each
examination, sec. 14, page 62.
the optical window is clean.
Ask the patient to place his or her head on the chin and forehead
rest.
Do not touch the patient and the Pentacam® AXL simultaneously.
Rough adjustment
The black ring marking between the chin rest and the forehead rest
(1) should be used for gauging the required height of the patient’s
eyes.
Adjust the patient’s eye level using the twist grip (2).
The patient is positioned correctly when chin and forehead touch the
rests and the eyes are level with the marking.
If you adjust the chinrest for a small head (for example: a child‘s head),
the test eye may stop the chinrest. Swing the test eye to the side and then
adjust the chinrest.
1 Marking (black ring) 2 Twist grip

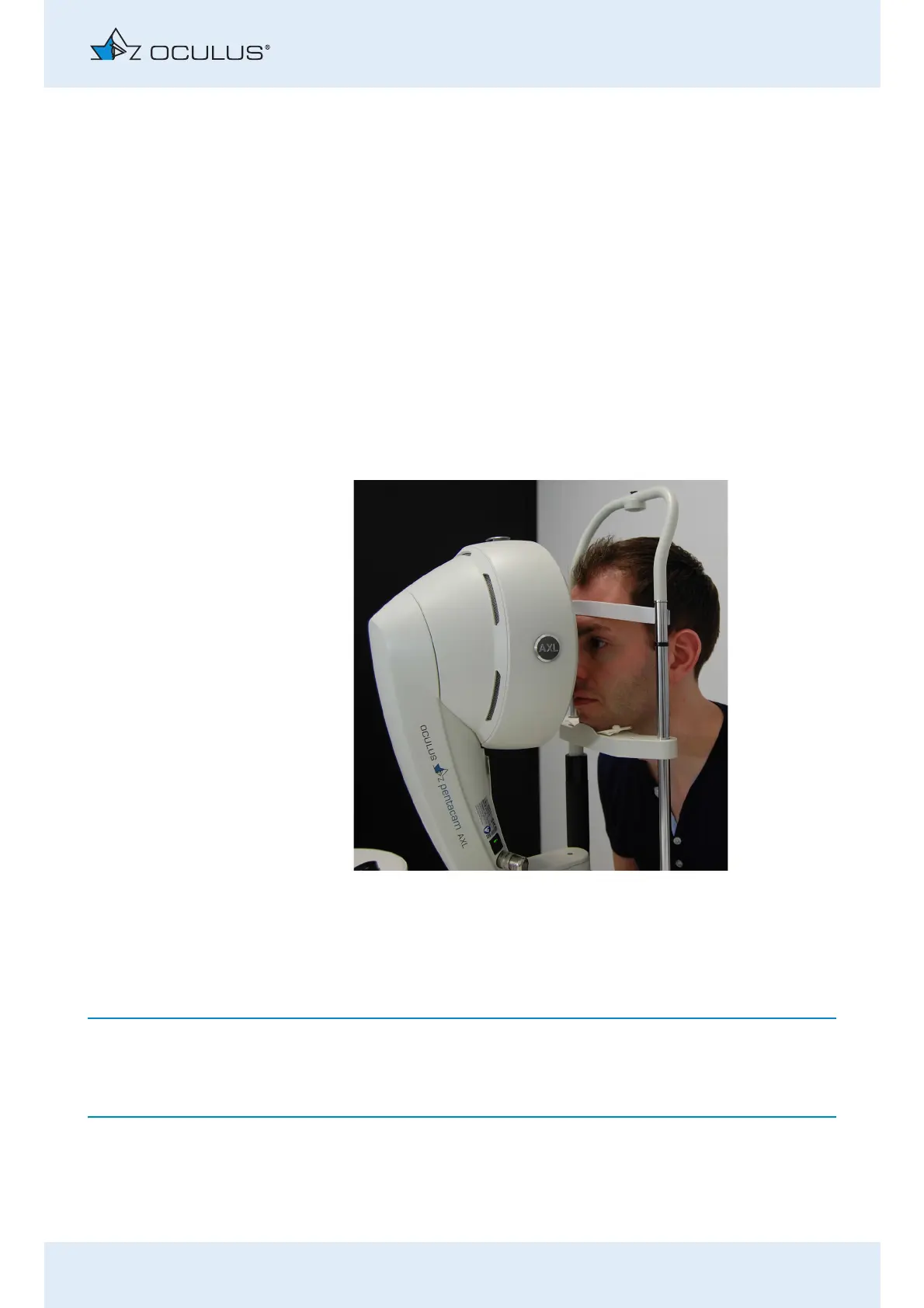

Fig. 11-1: Rough adjustment of the chin and forehead rest
