11 Measuring Procedure
36 / 85 Instruction Manual Pentacam® AXL (G/70100/EN 1121 Rev04)

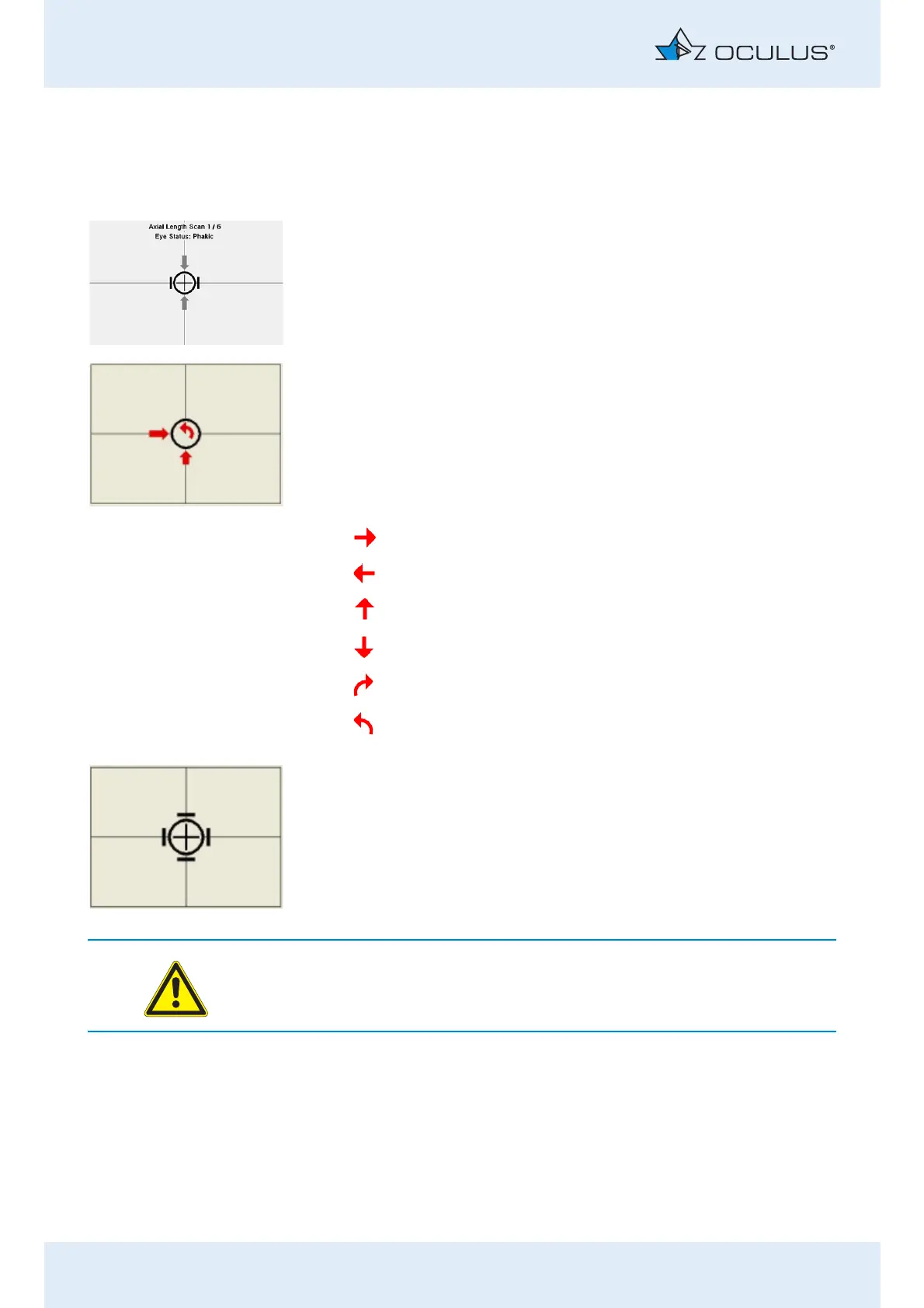

Fine adjustment
 Make any fine adjustments required based on the information in the
adjustment window.
Example (with grey arrows): distance to patient´s eye is not correct.
 Move the device towards or fromward the patient.
Example (with red arrows): Move or rotate the joystick in the specified
directions.
 Move the joystick to the right.
 Turn the joystick counter clockwise.
 Move the joystick forwards.
When you have achieved the expected position, a black cross will appear
in the centre of the ring, surrounded by four black lines. The
Pentacam® AXL will automatically begin measuring, alternately you can
start the measuring procedure manually.
 For measuring manually: Start measuring by clicking [Start Scan] or
by pressing the return key.
Attention
It may not be possible to carry out a measurement with manual release.
 Ask the patient to blink normally, take a short break and proceed
with the 3D Pentacam scan.
 Follow the instructions on the screen and then continue with the 3D
scan.
Arrow Camera movement Joystick movement
right Move the joystick to the right
left Move the joystick to the left
forward Move the joystick toward the patient
back Move the joystick away from the patient
up Rotate the joystick clockwise
down Rotate the joystick counter-clockwise
