4. COOLING SYSTEM
4-4

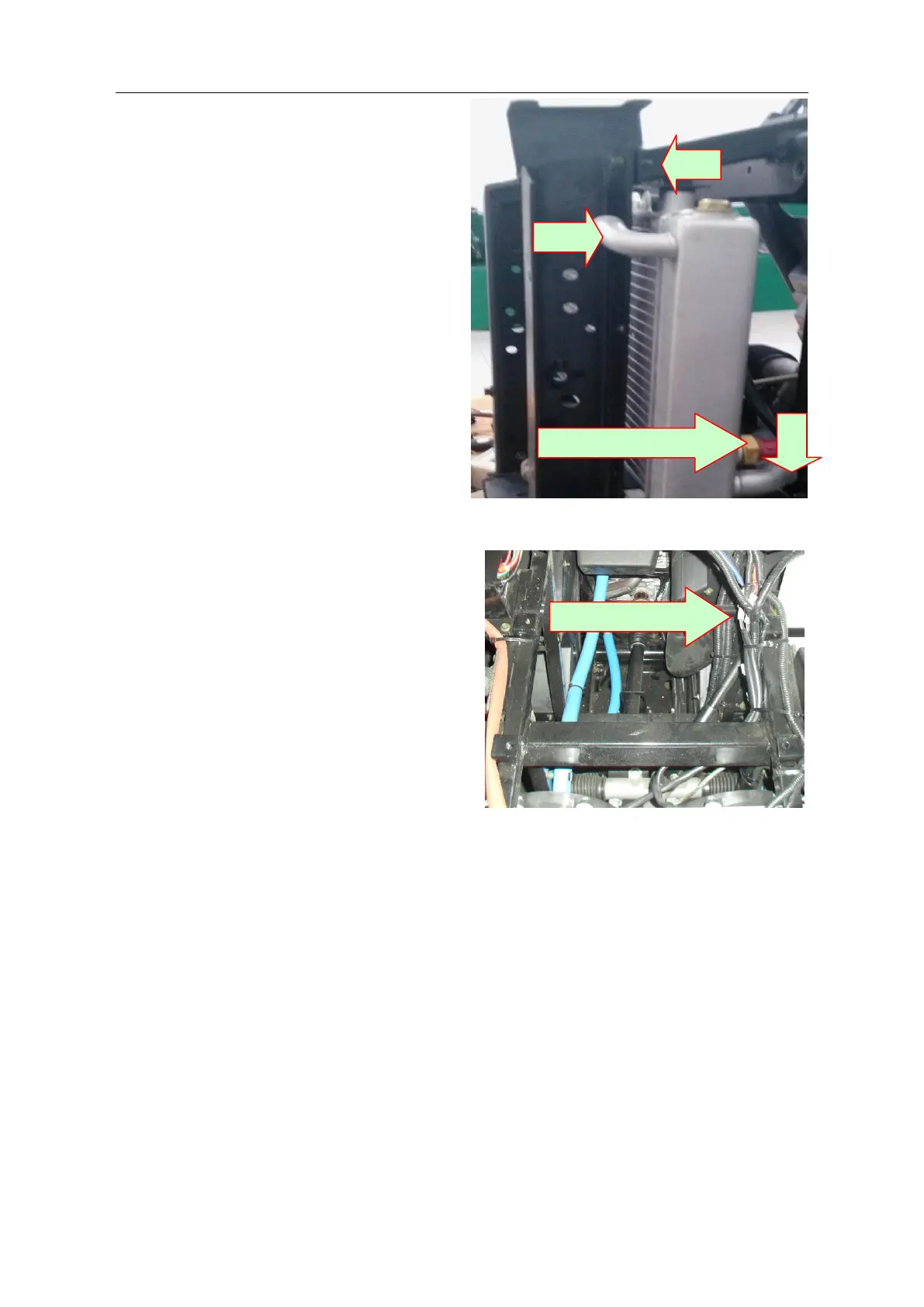

Remove the connector of temperature
controller on the radiator and the radiator
water outlet hose B.
Remove the fill hose C and the top
mounting bolt D on the left side.
Unplug the connectors of cooling fan.
Pull out upward the radiator from the lower
mounting holes on the frame, remove the
radiator from the left side of the vehicle.
Radiator Installation
For installation, reverse the removal
procedure.
Pay attention to the following detail.
Fill up the radiator. Refer to COOLANT
REPLACEMENT, in this section.
Check for any coolant leakage from
radiator and hoses.
