COOLING FAN TROUBLESH00TING CHART
Is fan working?
YES→
Everything is
0K
NO
Check "Relay driver
fuse(5A) and fan
fuse (30A). Is fuse
burnt?
YES→
Replace fuse Is
fan working?
NO
Bypass fan relay R1
→
Fan turns?
YES→
Replace relay Is
fan working?
NO
Apply12 Vdc to fan
connector
→
Fan turns?
NO→
Replace fan
Is fan working?
YES
Check CTS
→
CTS works ?
NO→
Replace CTS
Is fan working?
YES
Check wiring
harness and
connectors
→
Harness and
connectors good?
NO→
Repair or
replace
defective part(s)
YES
Try a new ECM
→
Is fan working?
Radiator Cooling Fan Removal
1. Disconnect fan motor electrical connector.
2. Remove fan motor vent tube from vehicle
frame.
3. Remove 4 fan retaining screws.
4. Remove the radiator fan.
Radiator Cooling Fan Installation
For the installation, reverse the removal procedure.

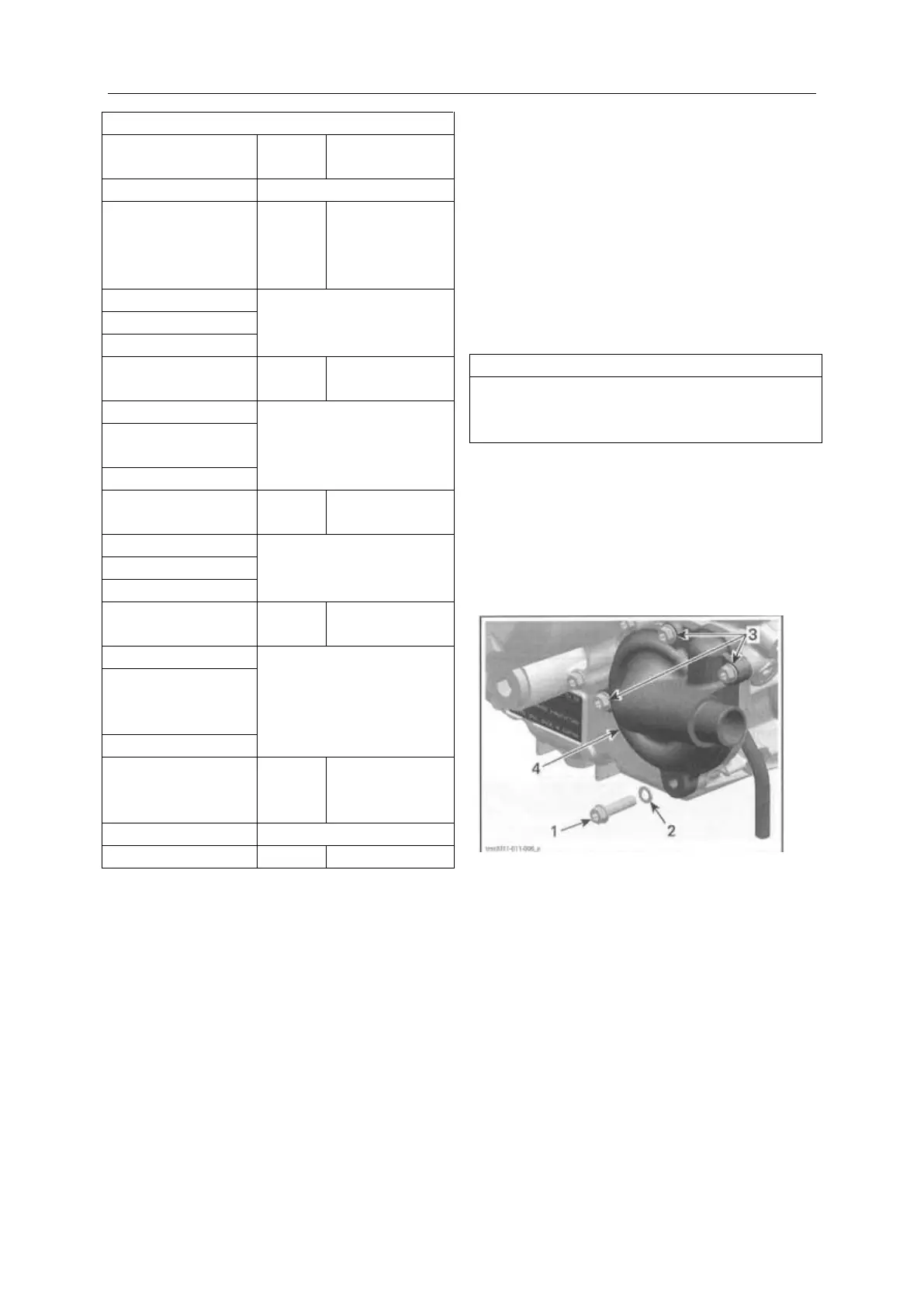

WATER PUMP HOUSING
Water Pump Housing Location
1t is located on the engine MAG side (RH side of
engine).
Water Pump Housing Access
Remove fuel tank. Refer to FUEL SYSTEM
subsection.
Water Pump Housing Removal
△ WARNING
To avoid potential burns, do not remove the
radiator cap or loosen the coolant drain plug if the
engine is hot.
Drain cooling system. Refer to PERIDIC
MAINTENANCE PROCEDURES subsection.
Remove radiator outlet hose from water pump
housing.
Remove screws retaining water pump housing.
1. Coolant drain plug
2. Sealing ring,
3. Screws
4. Water pump housing
Pul1 water pump housing to remove it.
Water Pump Housing Inspection
Check if gasket is brittle, hard or damaged and re-
place as necessary.
