8. SUSPENSION SYSTEM
FRONT SUSPENSION ························ 8-1
REMOVAL AND DISASSEMBLY ········· 8-2
INSPECTION ·································· 8-2
SHOCK ABSORBER ····················· 8-2
KNUCKLE ··································· 8-2
LOWER SUSPENSION ARM ·········· 8-3
UPPER SUSPENSION ARM ··········· 8-3
REASSEMBLY ································ 8-3
REAR SUSPENSION ·························· 8-4
REMOVAL AND DISASSEMBLY ········· 8-4
INSPECTION ·································· 8-5
SHOCK ABSORBER ····················· 8-5
KNUCKLE ··································· 8-5
LOWER SUSPENSION ARM ·········· 8-6
UPPER SUSPENSION ARM ··········· 8-6
REASSEMBLY ································ 8-6

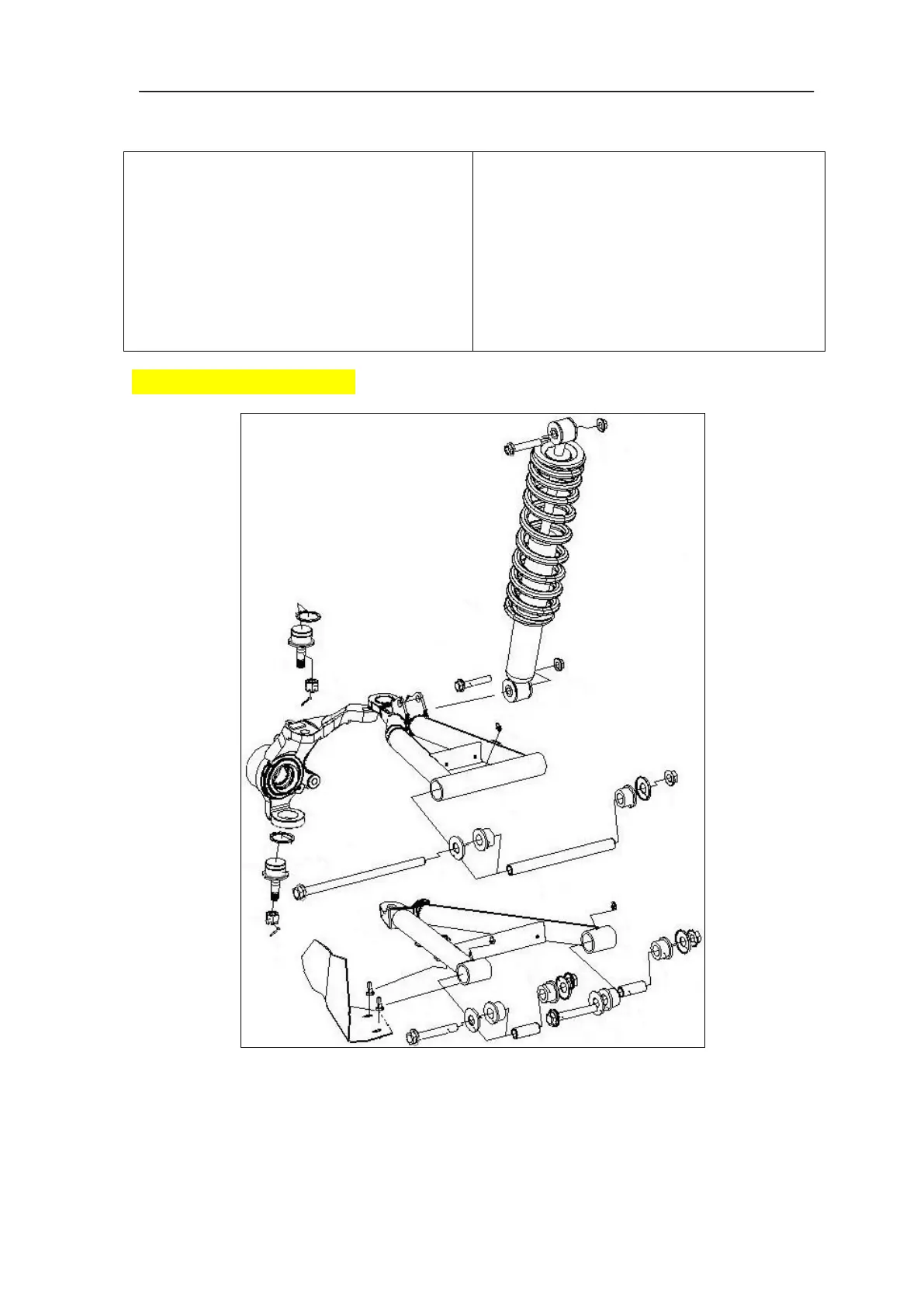

FRONT SUSPENSION
The procedure explained below is the same for the RH and LH sides unless otherwise noted. During
assembly or installation, use the torque values and service products as in the torque table.
In order to prevent collapse of vehicle, please do not dismantle left and right suspensions
simultaneously.
Before overhauling front suspension system, please ensure stable support of vehicle
