CONTINUOUSLY VARIABLE
TRANSMISSION
Never touch CVT while engine is running.
never drive vehicle when variator cover is removed.
Subcomponent installation and assembly tolerances require strict adherence to procedures detailed.
Never use any type of impact wrench at drive pulley removal and installation.
The clutch assembly is a precisely balanced unit. Never replace parts with used parts from another clutch
assembly
These pulleys have metric threads. Do not SAE threads puller. Always tighten puller by hand to ensure
that the drive pulley has the same type of threads prior to fully tightening.
DRIVE BELT
Removal
Remove:
Distance screws
remove variator cover and gasket.

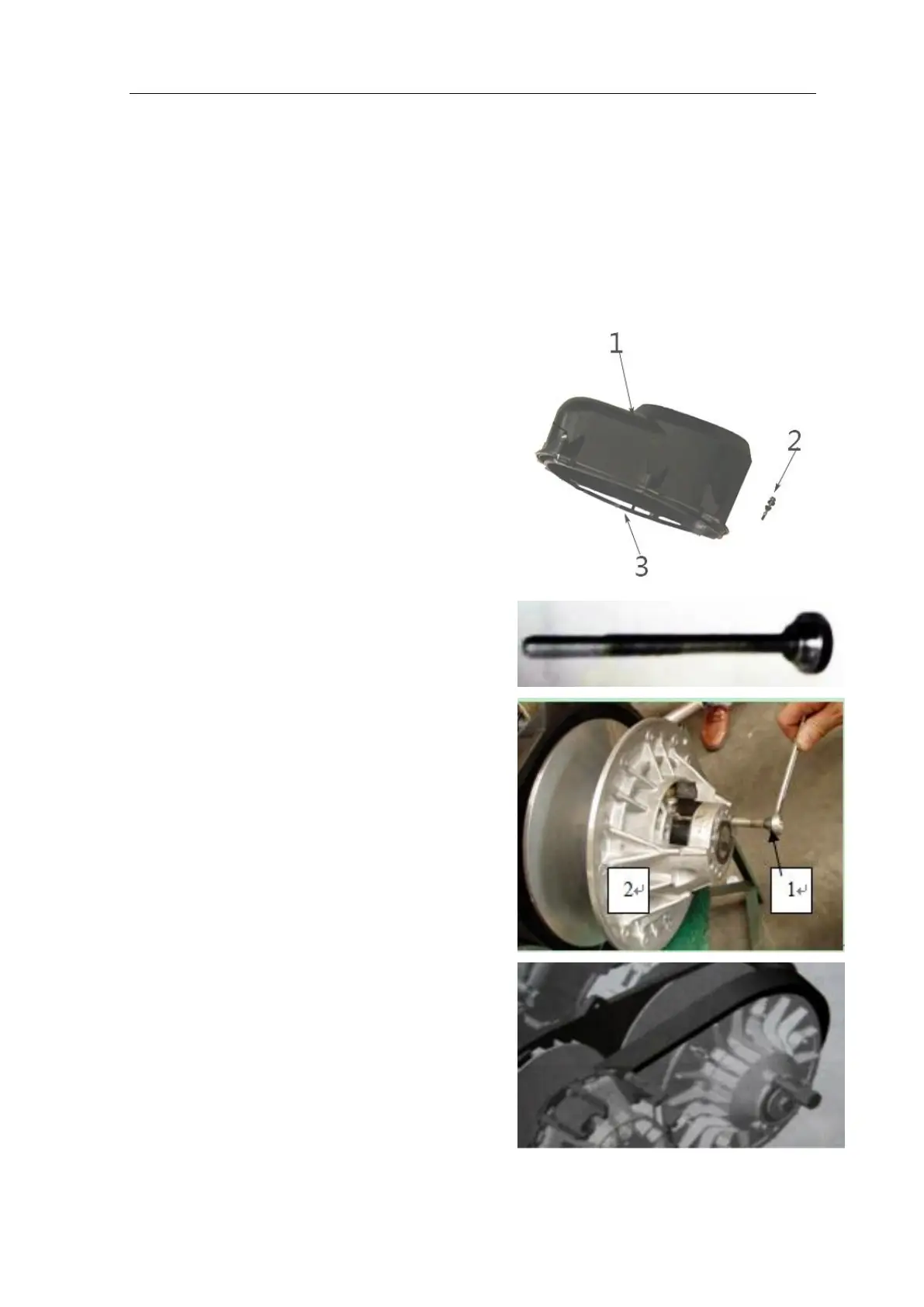

1. Variator cover
2. Distance screw
3. Gasket
NOTE:
Remove the center top screw last. This screw
allows to support the cover during removal.
Open driven pulley with the driven pulley
expander.
Screw tool in the threaded hole of driven pulley
and tighten to open the pulley.
1. Driven pulley expander
2. Fixed sheave of driven pulley
To remove belt, slip the belt over the edge of
fixed sheave as shown.
