3. ENGINE
3-
16
ENGINE
TEMPERATURE
INTAKE
TEMPERATURE
COOLING
FAN
CHECK ENGINE
LIGHT
MESSAGE IN
MULTIFUNCTION
GAUGE
LIMP HOME
MODE
—
88°C(190°F)
Turns ON
—
—
—
—
85°C(185°F)
Turn OFF
—
—
—
96°C(205°F)
—
Turns ON
—
—
—
962°C(198°F)
—
Turn OFF
—
—
—
115°C(239°F)
—
ON
Turns ON
-Check engine
-Hl Temp
—
118°C(244°F)
—
ON
Flashes
Limp Home
Engine
limited to4000

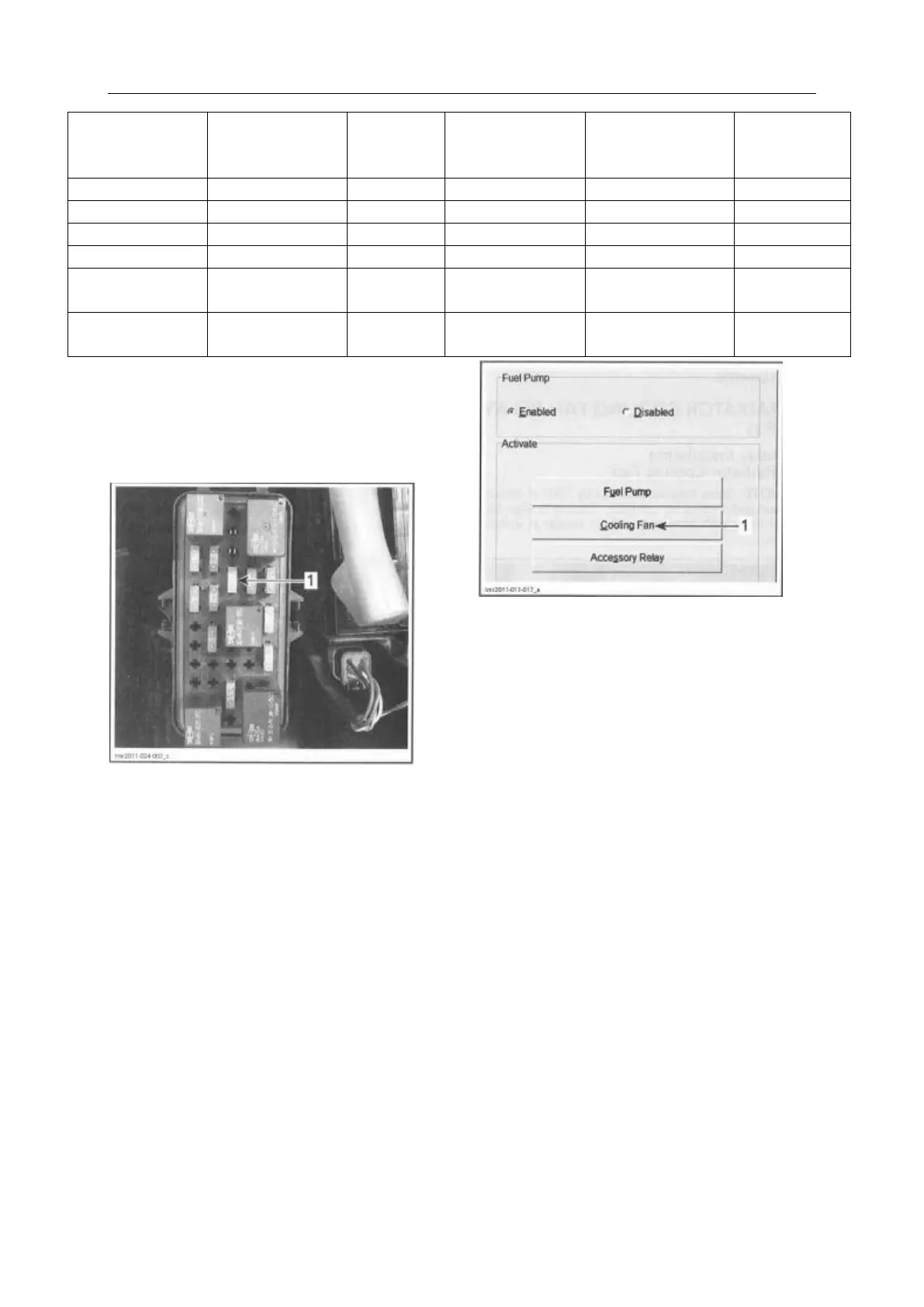

Radiator Cooling Fan Fuse Location
The fuse is located in the fuse box underneath the
dashboard on the driver's side.
1. Cooling fan fuse
Radiator Cooling Fan Test
1. Connect the vehicle to B.U.D.S., refer to
COMMUNICATION TOOLS AND B.U.D.S. for
procedure and connector location.
2. In B.U.D.S. software, select the following:
- Read Data button
- Activation tab
- ECM tab
- Cooling Fan button.
1. Cooling fan activation button
lf fan turns on, check CTS, wiring harness and
connectors. If al1 parts are good, replace the ECM.
1ffan does not turn on when the Cooling Fan but-
ton is pressed, refer to the following
troubleshooting chart.
