7. STEERING SYSTEM
7-2
ADJUSTMENT

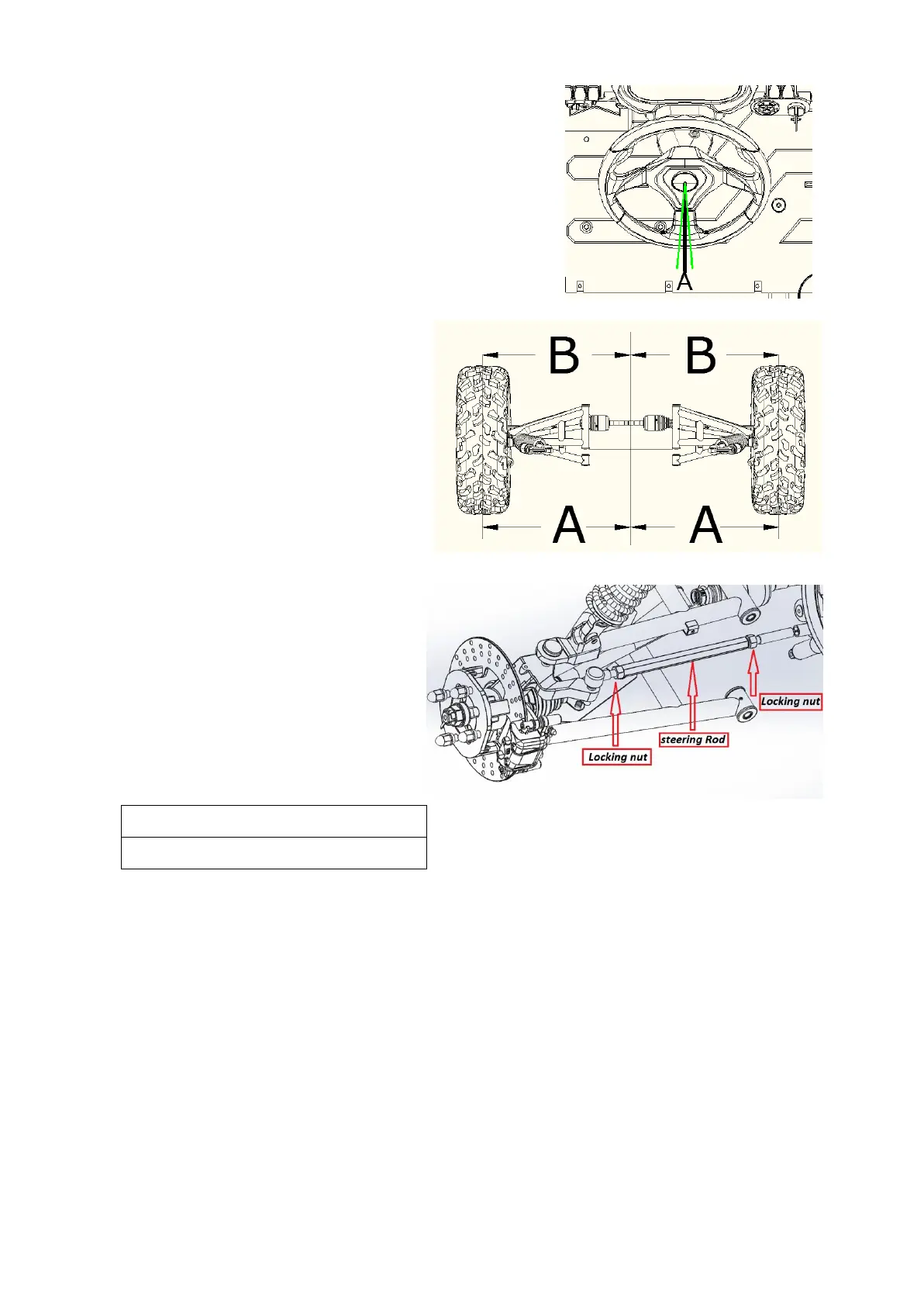

ALIGNING THE WHEELS
1. Place vehicle on a level surface.
2. Inflate tires to recommended pressure.
3. Find rack and pinion center to center as follows:
3.1 Calculate the total steering wheel rota-tions
from side to side.
3.2 Position the steering wheel at half the total
rotations.
NOTICE：Steering wheel angle ± 5°
Front Toe Adjustment
4.Adjust the tire，mmmmmake sure the tire
is 10 degrees inside
1.1 Adjust the tire inclination angle by
adjusting the steering Rod；
4.2 Measure the distance between vehicle
center and each wheel.
4.3 Before adjust，lock steering wheel at
Center.
4.4 Steering Tie Rod nut locking .
