3. ENGINE
3-

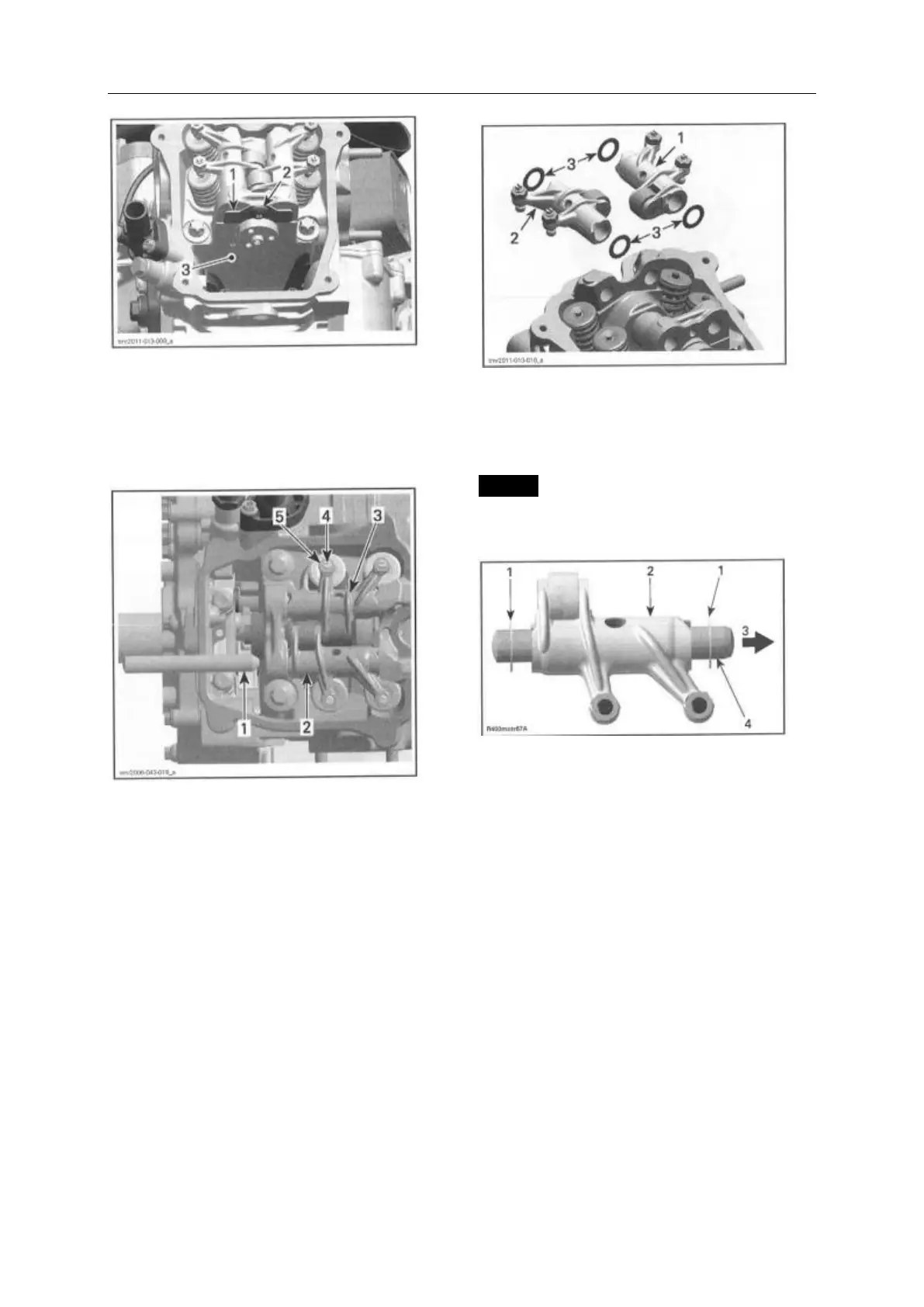

1. Camshaft retaining plate
2. Pan head screw
3. Cylinder head'
Remove rocker arm shafts
1. Rocker arm shaft
2. Rocker arm (exhaust side)
3. Rocker arm (intake side )
4. Adjustment screw
5. lock nut
Remove rocker arm assembly(exhaust side and
intake side) with adjustment screws and lock nut
Remove thrust washers.
1. Rocker arm (exhaust side)
2. Rocker arm (intake side )
3. Thrust washers
NOTICE Pay attention not to lose thrust washers
or drop them into the timing chain compartment.
1. 2 thrust washers
2. Rocker arm (exhaust side)
3. Cylinder head (spark plug side)
4. Big taper to spark plug side
Rocker Arm Inspection
Inspect each rocker arm for cracks and scored
friction surfaces. If so, replace rocker arm
assembly. Check the rocker arm rollers for free
movement, wear and excessive radial play.
Replace rocker arm assembly if necessary.
To Next Page
