ODES UTV Desertcross 1000cc-3 - Page 79

3. ENGINE
3-
49

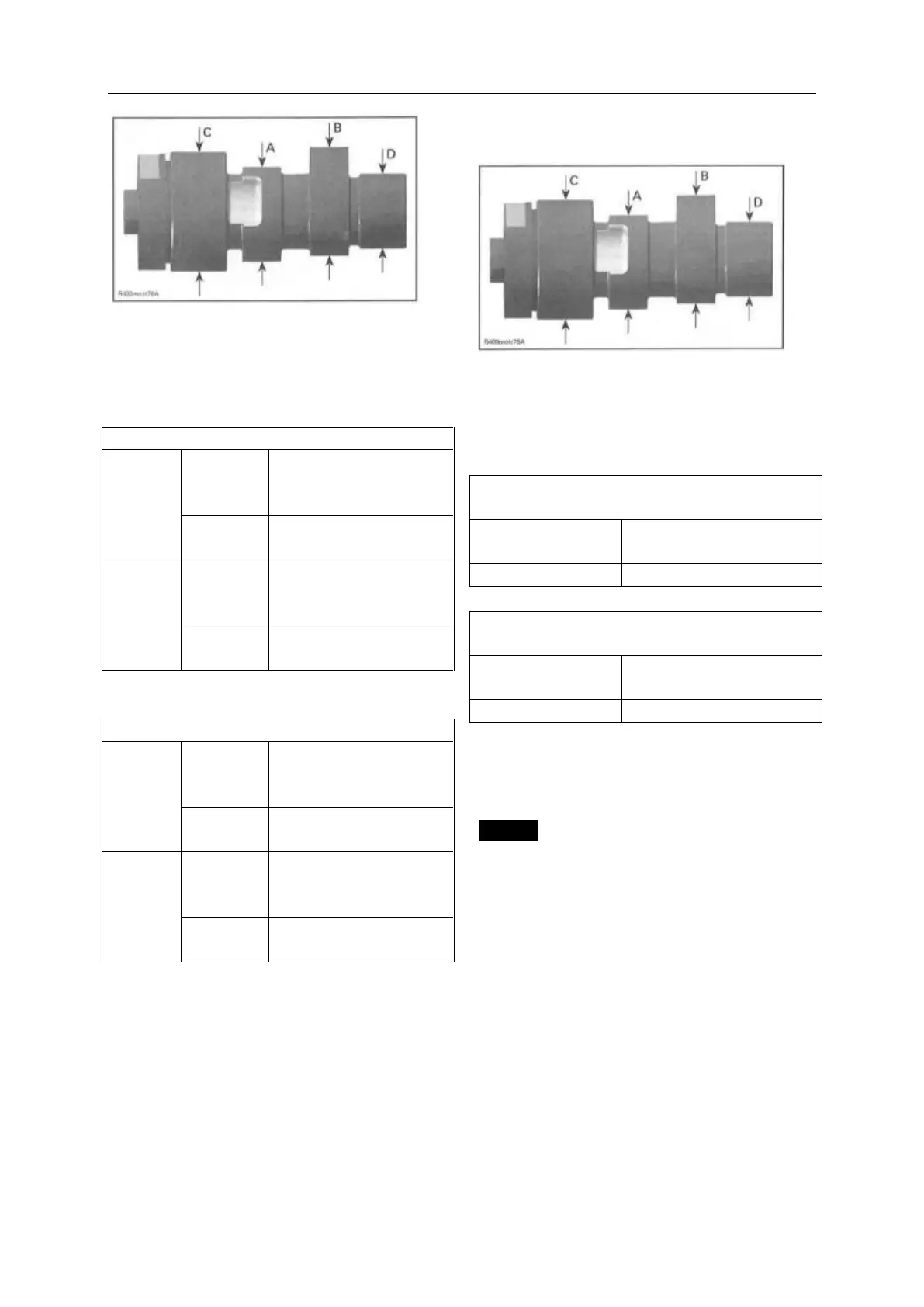

A. Camshaft lobe (exhaust valves)
B. Camshaft lobe (intake valves)
C. Camshaft journal (timing chain side)
D. Camshaft journal (spark plug side)
CAMSHAFT LOBE (EXHAUST)
800R
ENGINE
NEW
32.950mm to33.150
mm
(1.2972in to1.3051 in)
SERVICE
LIMIT
32.930 mm(1 2965 in)
1000
ENGINE
NEW
32.860 mm to33.060
mm
(1.294in to1.302in)
SERVICE
LIMIT
32.840 mm(1 .293in)
CAMSHAFT LOBE (INTAKE)
800R
ENGINE
NEW
32.890mm to33.090
mm
(1.2949in to1.3028 in)
SERVICE
LIMIT
32.870 mm(1. 2941 in)
1000
ENGINE
NEW
32.960 mm to33.160
mm
(1.298in to1.306in)
SERVICE
LIMIT
32.940 mm(1 .297in)
Measure camshaft bearing in cylinder head . Refer
to CYLINDER HEAD INSPECTION in this
subsection.
Camshaft Journal Inspection
Check each journal for scoring, scuffing, cracks or
other signs of wear.
Measure camshaft journal using a micrometer .
A. Camshaft lobe (exhaust valves)
B. Camshaft lobe (intake valves)
C. Camshaft journal (timing chain side)
D. Camshaft journal (spark plug side)
CAMSHAFT JOURNAL
(TIMING CHAIN SIDE)
NEW
34.959mm to34.975mm
(1 3763 in to1 .377 in)
SERVICE LIMIT
34.950 mm(1 .376 in)
CAMSHAFT JOURNAL
(SPARK PLUG SIDE)
NEW
21 959 mm to21 980 mm
(.8645in to.8654in)
SERVICE LIMIT
21 .950 mm(.8642 in)
Camshaft Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
NOTICE The camshafts are not identical in
design. Do not invert the camshafts during
assembly. Any mix-up of the components will lead
to engine damage.
Place the camshaft retaining plate in the slot of the
camshaft.
