OHAUS DV114C - 3 Operation; Overview of Controls & Display Functions

EN-7Ohaus Discovery
3 OPERATION
3.1 Overview of Controls & Display Functions

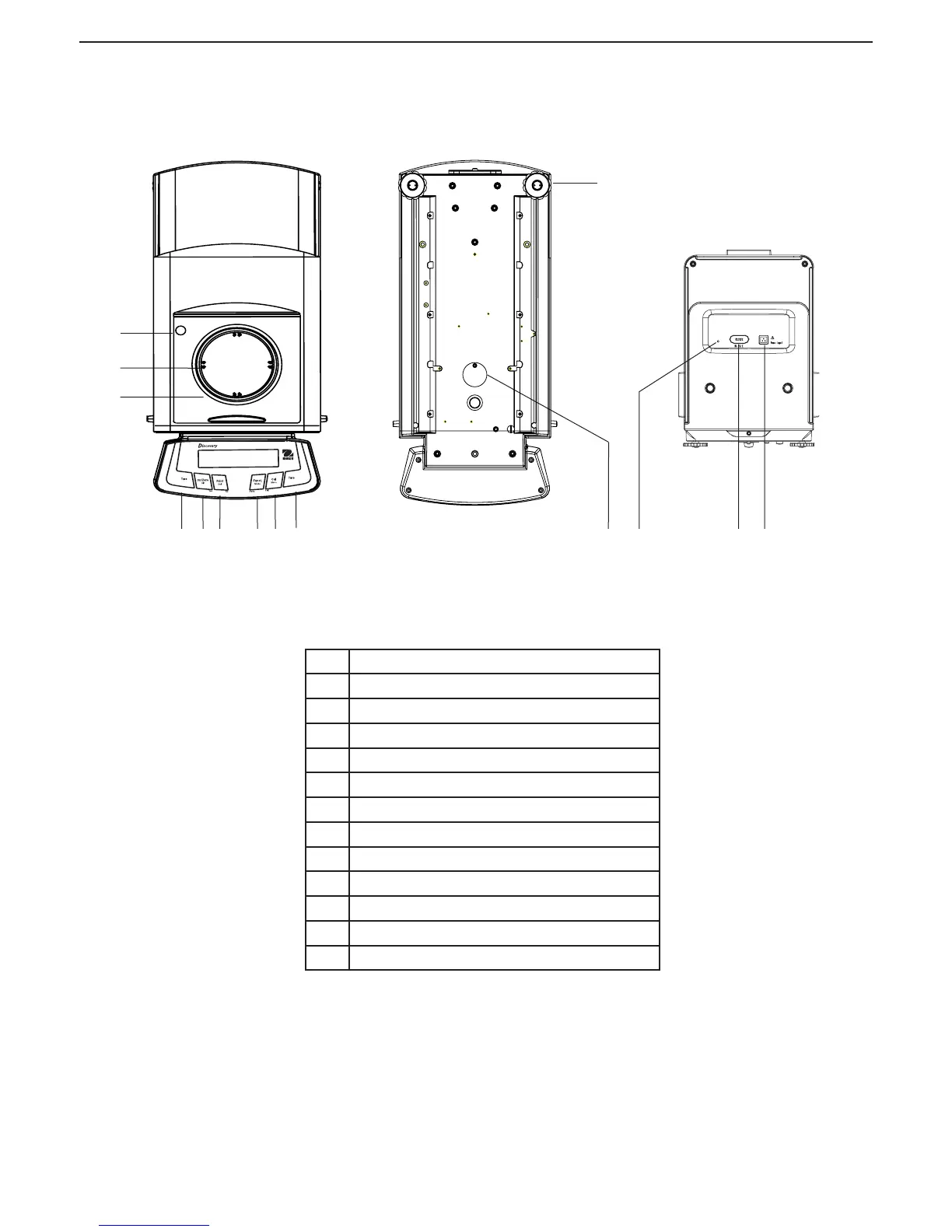

TOP VIEW BOTTOM VIEW REAR VIEW
TABLE 3-1. DISCOVERY CONTROL FUNCTIONS.
1 Level Bubble
2 Pan
3 Wind Ring
4 Tare Buttons
5 On / Zero Off Button
6 Print Unit Button
7 Function Mode Button
8 Calibrate Menu Button
9 Weigh Below Cover and Screw
10 Leveling Feet
11 Lockout Reset Switch
12 COM 1 Connector
13 Power Connector
1
2
3
4 5 6 7 8
9
10
11 12 13
4
