4.2.20 Shaft Assy-Eject (FU) / Shaft Assy-Eject (FD) / Eject Sensor
(1) Detach the Eject Assy 1 (see section 4.2.14).
(2) Remove the two claws to separate the Guide-Eject-Lower 2 and the Guide-Eject-Upper 3.
(3) Remove the Gear-Idle-Eject 4 and Stopper-Shaft 5, then detach the Shaft Assy-Eject (FU) 6
and the Shaft Assy-Eject (FD) 7.
(4) Detach the Lever-Eject Sensor 8 and then the eject sensor 9.
(5) Remove cables 0, A and B and the guide cable C.

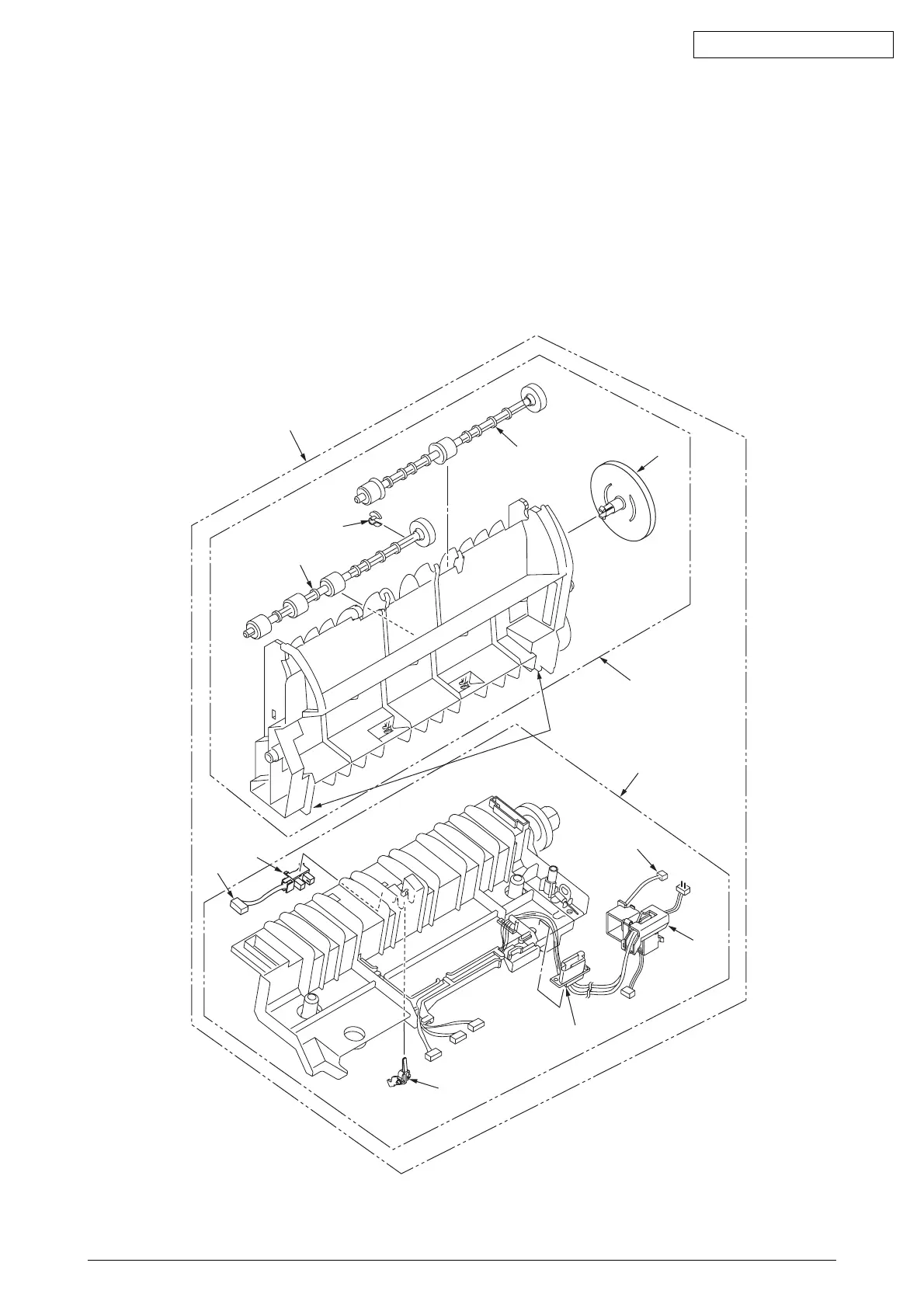

Figure 4-2-20 Shaft Assy-Eject (FU) / Shaft Assy-Eject (FD) / Eject Sensor
