42615101TH Rev.8 92 /
Oki Data CONFIDENTIAL
4.2.10 Controller Panel Assy
(1) Open the top cover.
(2) Open the feeder unit.
(3) Remove the right side cover (see section 4.2.3).
(4) Remove the plate-shield Assy [see section 4.2.7, step (2)].
(5) Make Control Panel Assy connector removal.
(6) Remove the four screws (golden) 1, then detach the Control Panel Assy 2.(Tool No.1)

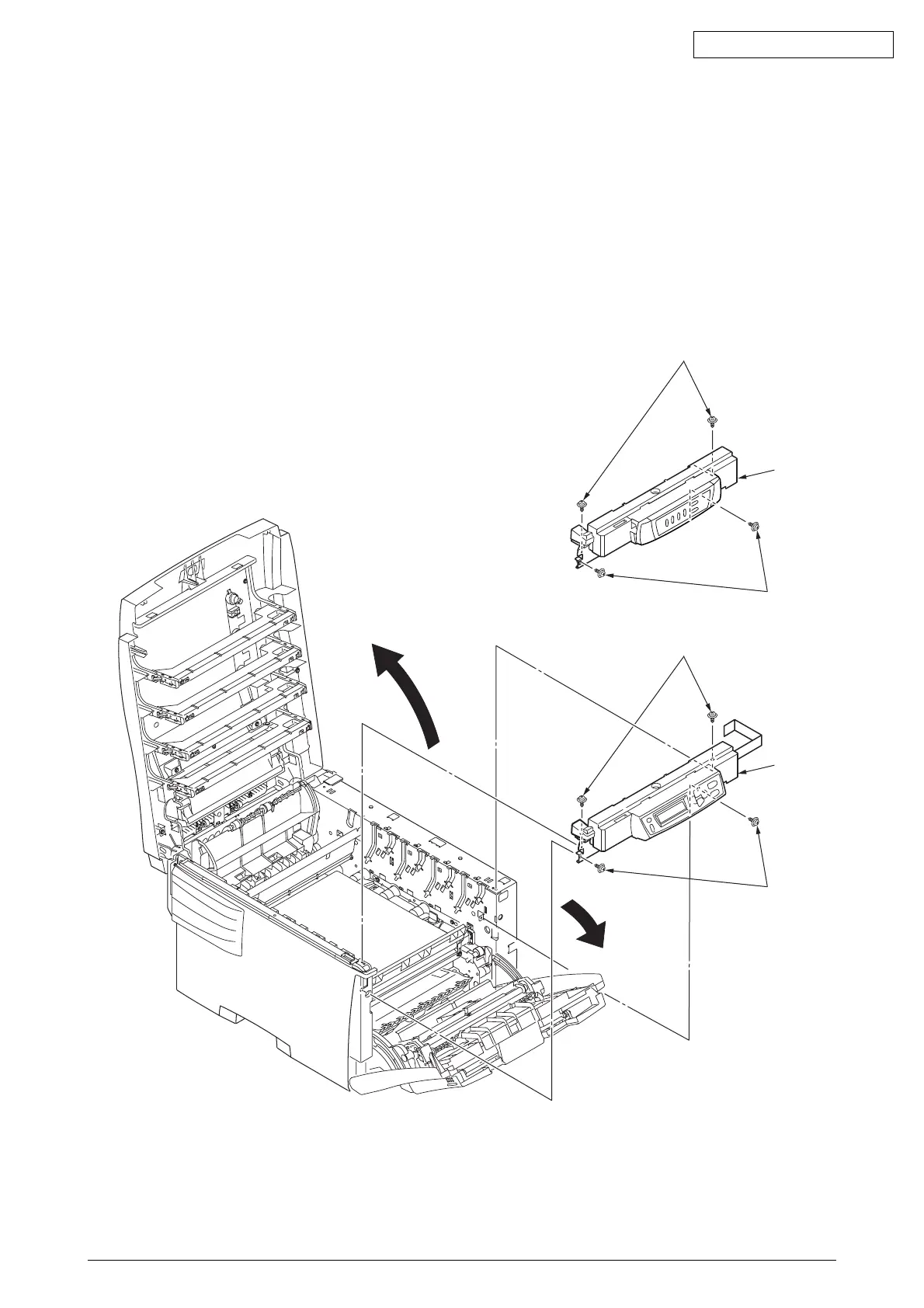

Figure 4-2-10 Control Panel Assy
1
1
2
1
1
2
C5510
C5400/C5200/C5150/
C3200n
To Next Page
