42615101TH Rev.8 72 /
Oki Data CONFIDENTIAL
4.2 Part Replacement Procedures
This section describes the procedures for replacing the parts and assemblies shown in the
following disassembly chart:
4.2.1 Left Side Cover
Except C5510
(1) Open the top cover 1.
(2) Open the feeder unit 2.
(3) Remove the screw (golden) 3 to detach the left side cover 4.(Tool No.1)

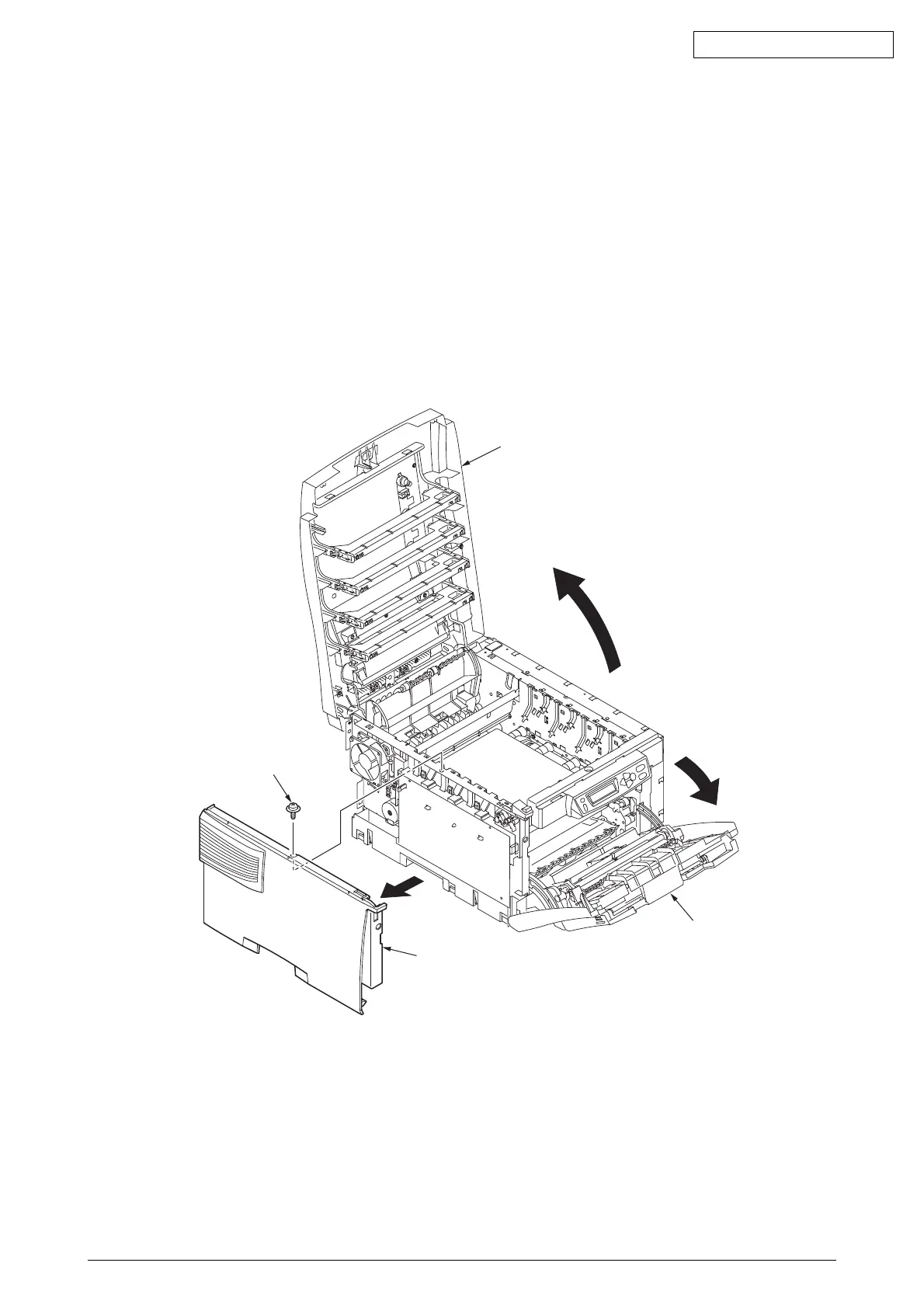

Figure 4-2-1-1 Left Side Cover
3
1
2
4
To Next Page
