1.5.3 Network Interface Specifications(C5400/C5200/C5150/C3200n)

1.5.3.1 Network Interface

(1) Basic specifications

Network protocol

TCP/IPSpecification Network layer

ARP, RARP, IP, ICMP

Transport layer

TCP, UDP

Application layer

LPR, FTP, TELNET, HTTP, BOOTP, SMTP

1.5.3.2 Network Interface Connector and Cable

(1) Connector

100 BASE-TX / 10 BASE-T

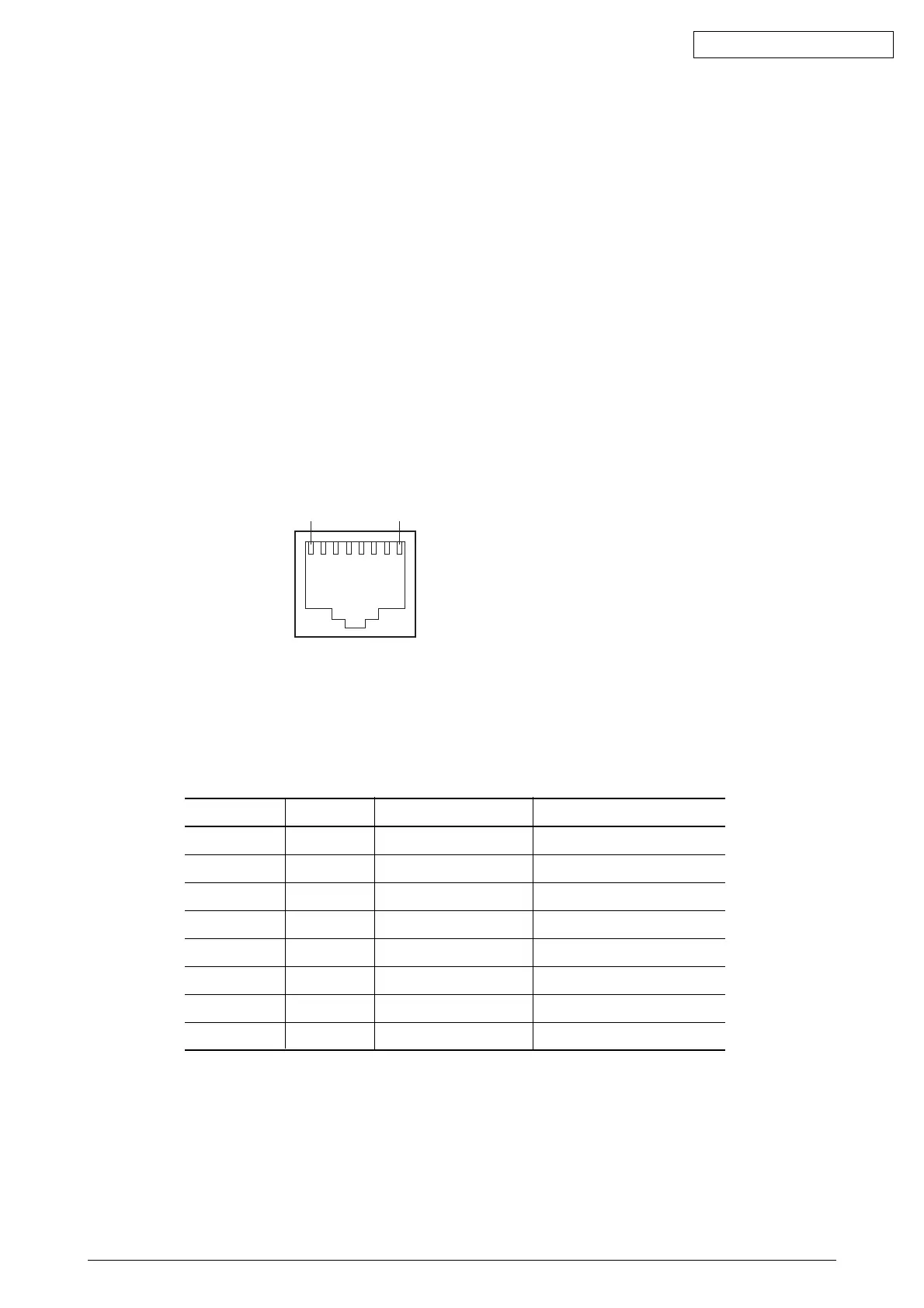

Connector pin layout

(2) Cable

RJ-45 UTP cable with connector (Category 5 recommended)

1.5.3.3 Network Interface Signals

Pin No. Signals Signal Direction Functions

1 TXD+ FROM PRINTER Send Data +

2 TXD- FROM PRINTER Send Data -

3 RXD+ TO PRINTER Received Data +

4 - - Unassigned

5 - - Unassigned

6 RXD- TO PRINTER Received Data -

7 - - Unassigned

8 - - Unassigned
