4.2.9 Top Cover
Except C5510
(1) Open the top cover assy.
(2) Remove the ten screws (black) 1 to remove the guide-paper eject 2.(Tool No.1)
(3) Remove the ten screws (black) 3 to detach the cable cover 4 and the top cover 5.
(Tool No.1)

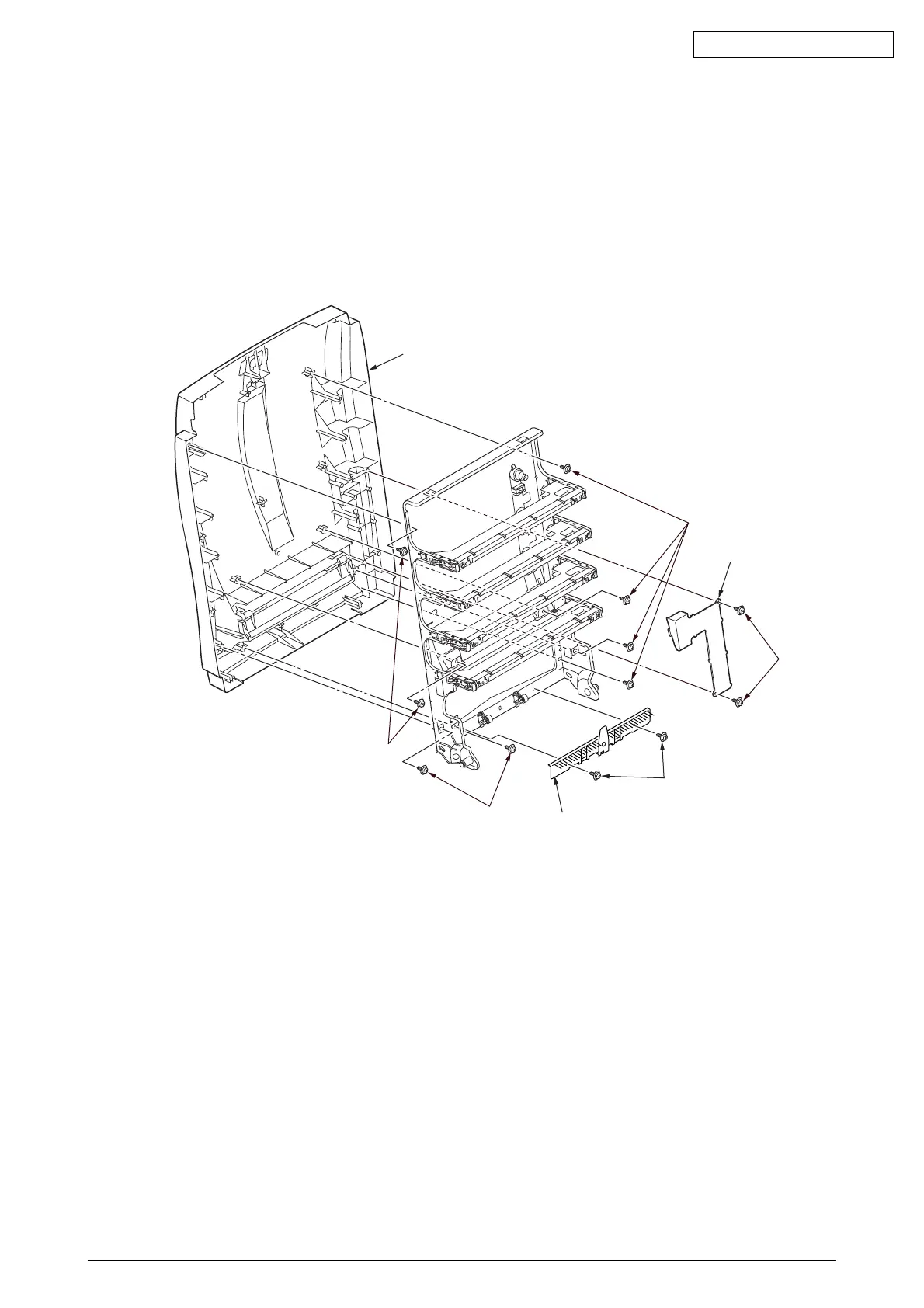

Figure 4-2-9-1 Top Cover
